Genuine M8×16 collared mounting bolt

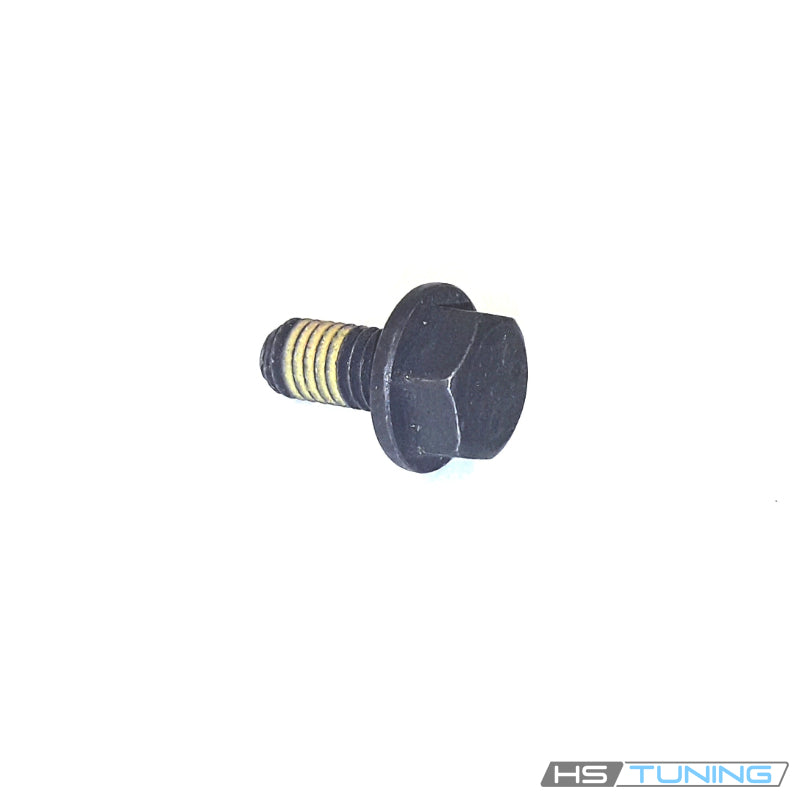

The N-903-285-02 Genuine VW/Audi bolt provides the original collared hex-head attachment for the specific transmission-cover and interior-bracket applications below. Its M8×16 specification identifies a particular fastener rather than a universal mounting bolt.
The same hardware number serves different connections. In the listed drivetrain applications it belongs to the original 4-speed automatic final-drive cover arrangement. The separately listed Jetta interior application uses it at the original center-armrest bracket.
Technical details
- Complete factory number: N-903-285-02.
- Factory specification: M8 × 16.
- Design: external hexagon head with integral bearing collar.
- Quantity supplied: one individual bolt.
The collar and nominal length help maintain original thread engagement and contact geometry. Use the complete factory number and repair procedure for the actual attachment. Additional seals, cover hardware and bracket components are separate parts.
Common reasons to replace
- The original fastener is missing after cover or bracket service.
- Threads are damaged or cross-threaded.
- The hex head is rounded or the collar is distorted.
- Corrosion or mechanical damage has affected the original bolt.
- Incorrect hardware was fitted during a previous repair.
Inspect the receiving threads and retained cover or bracket before installation. For a leaking final-drive cover, inspect the sealing surface and specified seal as well; replacing a mounting bolt alone does not restore a damaged sealing joint.
Vehicle fitment
Match the assembly named in each row. The automatic final-drive applications require the stated 4-speed gearbox. The armrest-bracket application is a separate interior use and requires the original bracket.
| Vehicle | Model years | Engine | Configuration | Application restrictions |
|---|---|---|---|---|
| Volkswagen Golf | 2000 | 2.0L gasoline inline-four | Mk4 hatchback; front-wheel drive; 01M 4-speed automatic | Original automatic final-drive cover attachment assigned N90328502; not manual-transmission differential hardware. |
| Volkswagen Golf | 2000 | 1.9L ALH TDI diesel inline-four | Mk4 hatchback; front-wheel drive; 01M 4-speed automatic | Original automatic final-drive cover attachment assigned N90328502; not manual-transmission differential hardware. |
| Volkswagen New Beetle | 2004 | 2.0L gasoline inline-four | Coupe; front-wheel drive; 01M 4-speed automatic; PR G0E | Original final-drive cover attachment; G0E 4-speed automatic only. Excludes DSG, Tiptronic and manual transmissions. |
| Volkswagen Jetta Wagon | 2004 | 2.0L gasoline inline-four | Mk4 wagon; front-wheel drive; 01M 4-speed automatic; PR G0E | Original final-drive cover attachment; G0E 4-speed automatic only. |
| Volkswagen Jetta | 2001 | 2.0L gasoline / 1.8L turbo gasoline / 2.8L VR6 / 1.9L TDI | Mk4 sedan with original center armrest; Original interior armrest bracket | Center-armrest bracket 1J0864273C mounting position assigned N90328502; only vehicles equipped with this original bracket. |
Installation guidance
Follow the factory procedure for the selected attachment. For final-drive cover work, support and prepare the assembly and sealing surfaces as directed, and use the prescribed tightening order and specifications. For the armrest bracket, align the original support and start the bolt by hand.
Confirm secure mounting and correct component seating. Complete any specified fluid-level and leak checks after drivetrain work. Do not transfer transmission-cover torque values to an interior bracket or substitute this bolt for hydraulic fittings.
Ordering information
Supplied as one genuine bolt. A complete cover or bracket repair may require several fasteners; confirm the required quantity. Cover, seal, armrest, bracket and fluid are not included.
