OVERVIEW
Genuine hybrid flywheel attachment bolt

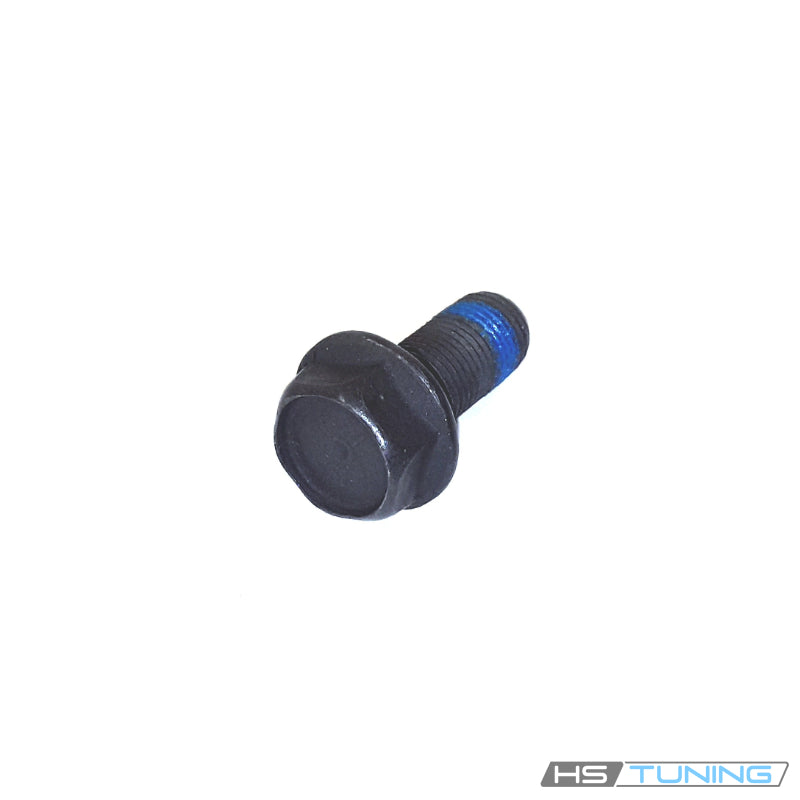

The N-904-055-02 Genuine VW/Audi hexagon bolt secures the assigned original flywheel connection on the Touareg Hybrid applications listed below. Its M10 fine thread, 1 mm pitch and 22 mm nominal length match the specified factory fastener.
The hybrid V6 flywheel arrangement differs from the conventional gasoline and diesel configurations. Match the complete bolt number, engine and original flywheel before ordering. This listing supplies one bolt rather than the complete set used at the connection.
Technical details
- Complete factory number: N-904-055-02.
- Factory specification: M10 × 1 × 22.
- Design: external-hex bolt with the original bearing arrangement for the assigned flywheel attachment.
- Quantity supplied: one individual bolt.
The nominal specification describes the fastener itself rather than packaged shipping dimensions. Thread pitch, length and seating arrangement all matter to this connection. Do not select a bolt only by its diameter or transfer tightening instructions from a different flywheel.
Common reasons to replace
- The factory procedure requires new flywheel bolts during reassembly.
- The threads have been crossed, stripped or otherwise damaged.
- The external hex is rounded or damaged.
- The bolt or bearing surface has been damaged during removal.
- A previous repair used incorrect substitute hardware.
Inspect the flywheel, mating mounting surfaces and receiving threads before assembly. A new bolt cannot repair a damaged flywheel or crankshaft connection. Noise or vibration requires diagnosis of the complete drivetrain rather than replacing a bolt without identifying the cause.
Vehicle fitment
The row requires the original supercharged V6 Hybrid flywheel and G1G eight-speed automatic arrangement. Conventional 3.6L VR6 and TDI flywheel connections are excluded from this row.
| Vehicle | Model years | Engine | Configuration | Application restrictions |
|---|---|---|---|---|
| Volkswagen Touareg | 2011, 2013, 2015 | 3.0L supercharged gasoline V6 hybrid | 7P Hybrid SUV; 4Motion; 8-speed automatic; PR G1G; original 06E105269C flywheel | Original hybrid V6 flywheel connection assigned N90405502 M10×1×22 and 06E105269C flywheel. Excludes conventional 3.6 VR6 and TDI flywheel hardware. |
Installation guidance
Follow the factory hybrid drivetrain and flywheel service procedure, including the prescribed system isolation, support and access steps. Use the specified holding tools, clean or prepare the connection only as instructed and install the required new hardware in the prescribed sequence.
Use the exact tightening method specified for the engine and flywheel connection. Confirm correct seating and complete all required drivetrain reassembly and post-service checks. Do not reuse damaged hardware or add unapproved locking compounds to compensate for an incorrect bolt.
Ordering information
Supplied as one genuine bolt. Flywheel, crankshaft, hybrid drive components, tools and a complete bolt set are not included. Confirm the complete number of bolts required for the repair.
