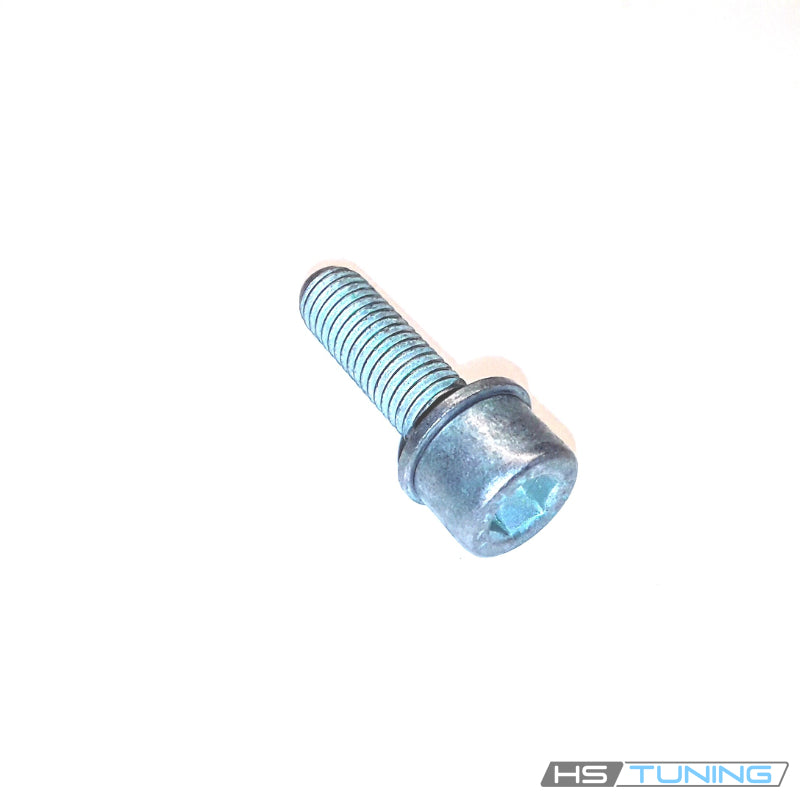

• N-904-151-02 Genuine VW/Audi M10x32 A/C compressor socket head bolt, complete component, original product photo 1
  • N-904-151-02 Genuine VW/Audi M10x32 A/C compressor socket head bolt, factory part form, repeated original archive photo 2
  • N-904-151-02 Genuine VW/Audi M10x32 A/C compressor socket head bolt, individual replacement part, repeated original archive photo 3
  • N-904-151-02 Genuine VW/Audi M10x32 A/C compressor socket head bolt, original component reference, repeated original archive photo 4
  • N-904-151-02 Genuine VW/Audi M10x32 A/C compressor socket head bolt, part identification, repeated original archive photo 5
  • N-904-151-02 Genuine VW/Audi M10x32 A/C compressor socket head bolt, archive detail reference, repeated original archive photo 6
  • N-904-151-02 Genuine VW/Audi M10x32 A/C compressor socket head bolt, original product reference, repeated original archive photo 7
1 7

Genuine VW/Audi

N-904-151-02 Genuine VW/Audi M10x32 A/C Compressor Socket Head Bolt

N-904-151-02 Genuine VW/Audi M10x32 A/C Compressor Socket Head Bolt

$4.63 USD
$4.63 USD $4.63 USD
Sale Sold out
Shipping calculated at checkout.
Out of stock

N-904-151-02

View full details

OVERVIEW

Correct combination bolt for the original A/C compressor mounting point

N-904-151-02 is the Genuine VW/Audi M10x32 socket-head combination bolt cataloged for the assigned A/C compressor fastening points below. Match the original compressor and mounting arrangement before ordering.

Fasteners with a similar diameter can have different lengths, head forms and clamping requirements. Match the original factory number and assigned joint rather than choosing a bolt by appearance alone.

Technical details

  • Complete factory number: N-904-151-02.
  • Factory specification: M10 × 32 internal-hex socket-head combination bolt.
  • Design: cylindrical internal-hex drive head with captive washer and threaded shank.
  • Quantity supplied: one individual bolt.

The nominal thread and length describe the fastener itself. This listing supplies one bolt rather than the full quantity required for an assembly. Matching nuts, washers, brackets and related parts are separate.

Common reasons to replace

  • The original bolt is missing after component service.
  • Threads are damaged or will not engage correctly.
  • The drive head is rounded or otherwise damaged.
  • Corrosion or deformation makes the original fastener unsuitable for reuse.

Inspect the compressor mounting feature, bracket and receiving threads. This hardware does not seal a refrigerant joint or repair an internally failed compressor; check the exact fastening location in the repair diagram.

Vehicle fitment

Use only at the assigned factory fastening position on the listed applications. These vehicle entries do not establish compatibility with every fastening point on the vehicle.

Vehicle Model years Engine Configuration Application restrictions
Volkswagen EuroVan 2003 2.8L gasoline VR6 T4 van; air conditioning Original A/C compressor fastening point; assigned compressor reference 7D0820805E and M10x32 bolt.
Volkswagen Golf 1993, 1998 2.0L gasoline Mk3 hatchback; air conditioning Original assigned A/C compressor M10x32 socket-head bolt only.

Installation guidance

Support the compressor without straining connected hoses and follow the engine-specific repair procedure. Seat the correct bolt and washer at the assigned point and use the specified tightening torque. If refrigerant connections must be opened for the broader repair, follow the required recovery and sealing procedure.

Verify that the compressor and any disturbed brackets are secure and that hoses and drive components have the specified clearances.

Ordering information

One individual genuine bolt. Related nuts, washers, brackets and other assembly components are separate. Confirm VIN and original hardware number.
