OVERVIEW
Genuine VW/Audi N-904-650-04 is an individual O-ring used at specifically assigned R8 V8 oil-cooler connections and selected 3.0L TDI upper-front engine sealing points. The table identifies each confirmed application.
Technical details and contents
- Factory number: N-904-650-04 / N90465004.
- Factory nominal seal designation: 23 × 2.6.
- Component: individual elastomer sealing ring.
- Quantity supplied: one O-ring.
- Oil cooler, engine covers, lines, pipes, plugs and other seals are separate.

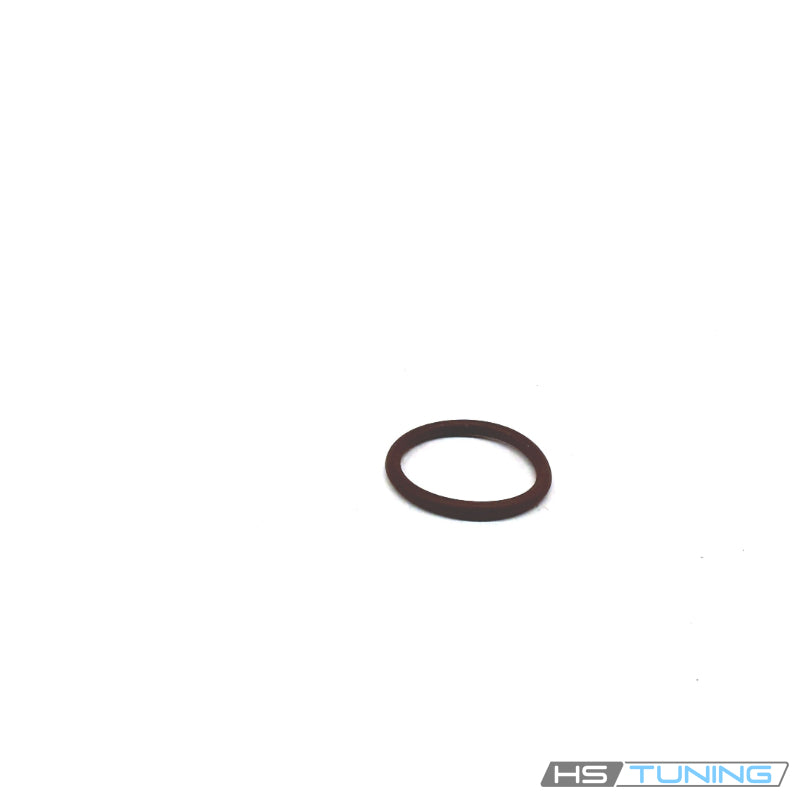

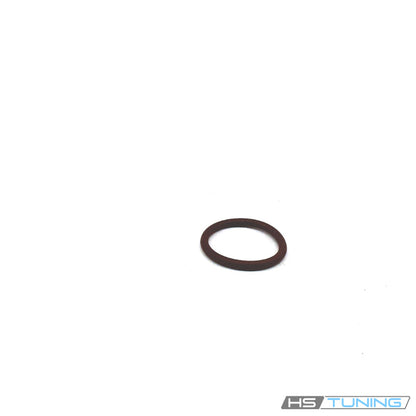

The nominal designation identifies the functional seal specification and is not a package measurement. The archive photograph shows the individual ring. Match the exact factory part number and original groove rather than selecting a seal by color or approximate size.
Function and connection details
The O-ring seals the interface assigned N90465004. On the listed R8 V8 configurations, it serves the specified cooler or cooler-line connection; the listed TDI applications use an upper-front timing-cover sealing point. These are different locations with different service procedures. Neighboring seals can have different diameters and factory numbers, including those in the R8 V10 cooler arrangement.
Common reasons to replace
- The assigned connection is opened during cooler, line or engine-cover service.
- A leak has been traced to the assigned sealing interface.
- The removed ring is cut, flattened, hardened or otherwise damaged.
- The seal was lost or an incorrect ring was fitted previously.
Fluid leakage can also result from a damaged groove, corroded fitting, cracked line or distorted cooler connection. Inspect the mating surfaces and diagnose the source before replacing the ring. One O-ring is not a complete cooler or engine-cover resealing kit.
Vehicle fitment
Match the engine and exact sealing point in the table. Adjacent seals, plugs and transmission-specific cooler pipes must be checked separately.
| Vehicle | Model years | Engine | Configuration | Application restrictions |
|---|---|---|---|---|
| Audi R8 | 2008–2010 | 4.2L gasoline V8 | Type 42 Coupe; original oil cooler and assigned cooler-line connection; 6-speed manual / R tronic; quattro | Original V8 oil-cooler O-ring point 2 and separately assigned oil-cooler line seal point 12. Adjacent N10535402 and N91101901 seals are different parts. Excludes V10. |
| Audi R8 | 2012 | 4.2L gasoline V8 | Type 42 Coupe / Spyder; original oil cooler connection; 6-speed manual / R tronic; quattro | Original V8 oil-cooler O-ring point 2 and separately assigned oil-cooler line seal point 12. Adjacent N10535402 and N91101901 seals are different parts. Excludes V10. |
| Audi R8 | 2014–2015 | 4.2L gasoline V8 | Type 42 Coupe / Spyder; original oil cooler and assigned cooler-line connection; 6-speed manual / 7-speed S tronic; quattro | Original V8 oil-cooler O-ring point 2 / cooler-line seal point 12 only. Match exact connection; manual and S tronic cooler-pipe arrangements have additional different seals. Excludes V10. |
| Audi A6 | 2015–2016 | 3.0L turbocharged TDI diesel V6 | C7 sedan; TDI Premium Plus / TDI Prestige; quattro; 8-speed Tiptronic automatic | Original upper-front engine timing-cover sealing point assigned N90465004. Match installed engine and exact seal groove; not the R8 oil-cooler connection and not every timing-cover seal. |
| Audi A7 | 2015–2016 | 3.0L turbocharged TDI diesel V6 | C7 Sportback; TDI Premium Plus / TDI Prestige; quattro; 8-speed Tiptronic automatic | Original upper-front engine timing-cover sealing point assigned N90465004. Match installed engine and exact seal groove; not the R8 oil-cooler connection and not every timing-cover seal. |
| Audi A8 L | 2015–2016 | 3.0L turbocharged TDI diesel V6 | D4 long-wheelbase sedan; L TDI; quattro; 8-speed Tiptronic automatic | Original upper-front engine timing-cover sealing point assigned N90465004. Match installed engine and exact seal groove; not the R8 oil-cooler connection and not every timing-cover seal. |
| Audi Q5 | 2015–2016 | 3.0L turbocharged TDI diesel V6 | 8R SUV; TDI Premium Plus / TDI Prestige; includes assigned S line trims; quattro; 8-speed Tiptronic automatic | Original upper-front engine timing-cover sealing point assigned N90465004. Match installed engine and exact seal groove; not the R8 oil-cooler connection and not every timing-cover seal. |
| Audi Q7 | 2015 | 3.0L turbocharged TDI diesel V6 | 4L SUV; TDI Premium / Premium Plus / Prestige; quattro; 8-speed Tiptronic automatic | Original upper-front engine timing-cover sealing point assigned N90465004. Match installed engine and exact seal groove; not the R8 oil-cooler connection and not every timing-cover seal. |
Installation guidance
Follow the current factory service procedure for the exact cooler, line or engine-cover sealing point. Allow the system to cool, prepare for fluid handling and keep the open connection clean. Remove the old ring without damaging the groove or mating surface.
Use only the specified assembly lubricant where required. Position the new O-ring correctly without twisting, stretching or pinching it, then assemble the joint using the prescribed hardware and tightening procedure. Refill and check the system as specified, and inspect the repaired connection for leaks.
Ordering information
This listing supplies one genuine sealing ring. It does not include oil, coolant, sealant, the cooler, lines, pipes or other O-rings. Verify every required seal and the repair quantity before ordering.
