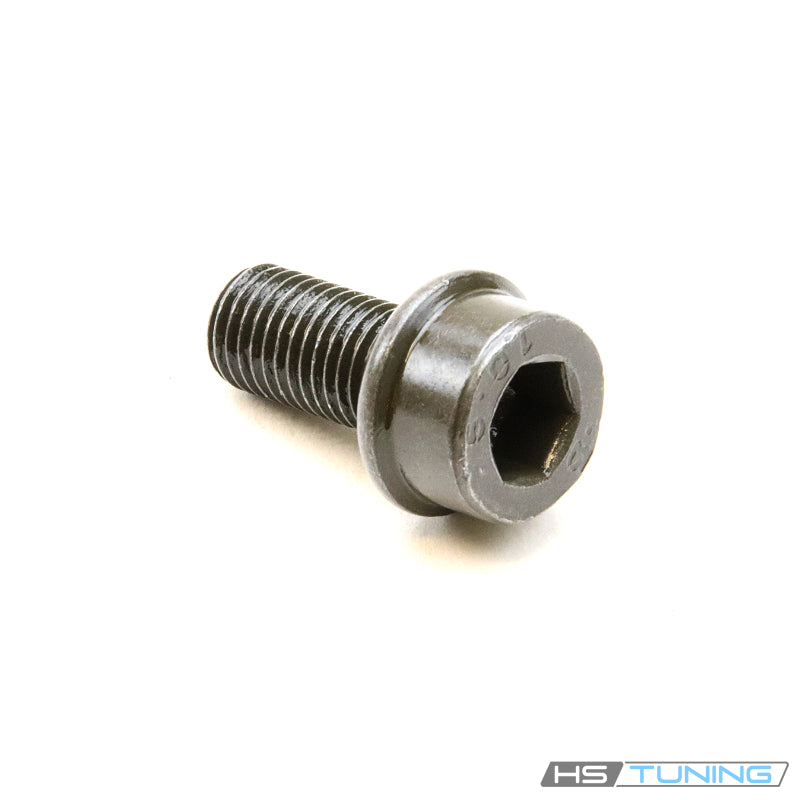

• N-907-294-01 Genuine VW/Audi rear brake caliper carrier socket head bolt, socket head, flange and threaded shank, original product photo
  • N-907-294-01 Genuine VW/Audi rear brake caliper carrier socket head bolt, socket head, flange and threaded shank, repeated original gallery photo 2
  • N-907-294-01 Genuine VW/Audi rear brake caliper carrier socket head bolt, socket head, flange and threaded shank, repeated original gallery photo 3
  • N-907-294-01 Genuine VW/Audi rear brake caliper carrier socket head bolt, socket head, flange and threaded shank, repeated original gallery photo 4
  • N-907-294-01 Genuine VW/Audi rear brake caliper carrier socket head bolt, socket head, flange and threaded shank, repeated original gallery photo 5
  • N-907-294-01 Genuine VW/Audi rear brake caliper carrier socket head bolt, socket head, flange and threaded shank, repeated original gallery photo 6
  • N-907-294-01 Genuine VW/Audi rear brake caliper carrier socket head bolt, socket head, flange and threaded shank, repeated original gallery photo 7
1 7

Genuine VW/Audi

N-907-294-01 Genuine VW/Audi Rear Brake Caliper Carrier Socket Head Bolt

N-907-294-01 Genuine VW/Audi Rear Brake Caliper Carrier Socket Head Bolt

$4.36 USD
$4.36 USD $4.36 USD
Sale Sold out
Shipping calculated at checkout.
Out of stock

N-907-294-01

View full details

OVERVIEW

Genuine Rear Brake Caliper Carrier Hardware

The N-907-294-01 Genuine VW/Audi socket head bolt secures the rear disc-brake caliper carrier at the factory mounting position. The carrier holds the brake pads in their working position relative to the disc, so its attachment hardware must match the original brake assembly. This listing supplies one bolt for a matched carrier application.

Technical Details

  • OEM part number: N-907-294-01.
  • Thread specification: M10 × 1.25.
  • Nominal bolt length: 21 mm.
  • Drive: internal hexagon/socket head.
  • Application: original rear disc-brake caliper carrier; GIRLING position 3 on the listed Golf/GTI/Jetta, and matched LUCAS assembly on the listed Passat.
  • Golf/GTI/Jetta carrier references: 1H0-615-425 and 1H0-615-426.
  • Quantity supplied: one bolt. The factory diagram specifies four of these bolts across the applicable rear carrier assembly.

For the Golf/GTI/Jetta applications, the factory catalog separates this 21 mm bolt from the earlier N-019-912-3 20 mm version at chassis 1H-T-000001. Match the chassis, brake equipment and fastener specification before ordering; a similar-looking bolt or a broad model-year match does not establish compatibility.

Common Reasons to Replace

  • The internal hex socket is rounded or damaged during removal, preventing reliable tool engagement.
  • Threads are damaged, cross-threaded or affected by corrosion.
  • Hardware is missing, has been substituted with an incorrect length or thread pitch, or cannot be positively identified during a brake service.
  • The bolt is being renewed during carrier removal after inspection or where the applicable repair procedure requires replacement.

Inspect the carrier mounting threads and mating surfaces when servicing this hardware. A new bolt does not correct damaged threads in the mounting component. Brake noise, uneven wear or vibration can have several causes; inspect the pads, disc, carrier and caliper rather than assuming this fastener alone will resolve them.

Vehicle Fitment

The applications below require the specified original rear disc-brake carrier. Engine, trim, chassis and brake-equipment restrictions are part of the fitment. Rear drum-brake vehicles do not use this carrier bolt.

Vehicle Model years Engine Configuration Application restrictions
Volkswagen Golf 1996–1998 2.0L gasoline (ABA) GL; original rear-disc brake equipment; No transmission-specific restriction at this mounting position Mk3/1H rear GIRLING disc-brake carrier, catalog position 3; chassis from 1H-T-000001. Match original carrier 1H0-615-425/426 and M10 × 1.25 × 21 mm fastener. Excludes rear drum brakes and earlier 20 mm bolt applications.
Volkswagen GTI 1996–1998 2.0L gasoline (ABA) Mk3; original rear-disc brake equipment; No transmission-specific restriction at this mounting position Mk3/1H rear GIRLING disc-brake carrier, catalog position 3; chassis from 1H-T-000001. Match original carrier 1H0-615-425/426 and M10 × 1.25 × 21 mm fastener. Excludes rear drum brakes and earlier 20 mm bolt applications.
Volkswagen GTI 1996–1998 2.8L VR6 gasoline (AAA) VR6; No transmission-specific restriction at this mounting position Mk3/1H rear GIRLING disc-brake carrier, catalog position 3; chassis from 1H-T-000001. Match original carrier 1H0-615-425/426 and M10 × 1.25 × 21 mm fastener. Excludes rear drum brakes and earlier 20 mm bolt applications.
Volkswagen Jetta 1996–1998 2.0L gasoline (ABA) GL/GLS Sport Edition; original rear-disc brake equipment; No transmission-specific restriction at this mounting position Mk3/1H rear GIRLING disc-brake carrier, catalog position 3; chassis from 1H-T-000001. Match original carrier 1H0-615-425/426 and M10 × 1.25 × 21 mm fastener. Excludes rear drum brakes and earlier 20 mm bolt applications.
Volkswagen Jetta 1996–1998 2.8L VR6 gasoline (AAA) GLX; No transmission-specific restriction at this mounting position Mk3/1H rear GIRLING disc-brake carrier, catalog position 3; chassis from 1H-T-000001. Match original carrier 1H0-615-425/426 and M10 × 1.25 × 21 mm fastener. Excludes rear drum brakes and earlier 20 mm bolt applications.
Volkswagen Passat 1995–1996 2.0L gasoline (ABA) B4/3A GLS; Sedan; original rear LUCAS disc-brake carrier; Front-wheel drive; no gearbox-specific restriction at this rear brake position Original rear LUCAS disc-brake carrier requiring M10 × 1.25 × 21 mm socket-head bolt. Confirm the installed carrier and original fastener. Excludes rear drum brakes, B3 and B5 assemblies, and caliper guide-pin positions.
Volkswagen Passat 1995–1997 2.8L VR6 gasoline (AAA) B4/3A GLX; Sedan or wagon; original rear LUCAS disc-brake carrier; Front-wheel drive; no gearbox-specific restriction at this rear brake position Original rear LUCAS disc-brake carrier requiring M10 × 1.25 × 21 mm socket-head bolt. Confirm the installed carrier and original fastener. Excludes rear drum brakes, B3 and B5 assemblies, and caliper guide-pin positions.
Volkswagen Passat 1996–1997 1.9L TDI diesel (1Z/AHU) B4/3A TDI; Sedan or wagon; original rear LUCAS disc-brake carrier; Front-wheel drive; no gearbox-specific restriction at this rear brake position Original rear LUCAS disc-brake carrier requiring M10 × 1.25 × 21 mm socket-head bolt. Confirm the installed carrier and original fastener. Excludes rear drum brakes, B3 and B5 assemblies, and caliper guide-pin positions.

Installation and Ordering Notes

Verify the original bolt and carrier against the part number and thread dimensions. Use the factory tightening procedure for the exact vehicle and mounting position, including any prescribed thread preparation or replacement instruction. No universal tightening torque or thread-locking treatment is specified here because the applicable repair procedure controls installation.

This is carrier attachment hardware, not the caliper guide-pin bolt. Pads, discs, carrier, caliper, tools and other mounting hardware are sold separately. The gallery repeats the available original product photograph to provide seven images; repeated images show the same bolt and do not represent additional pieces.
