OVERVIEW

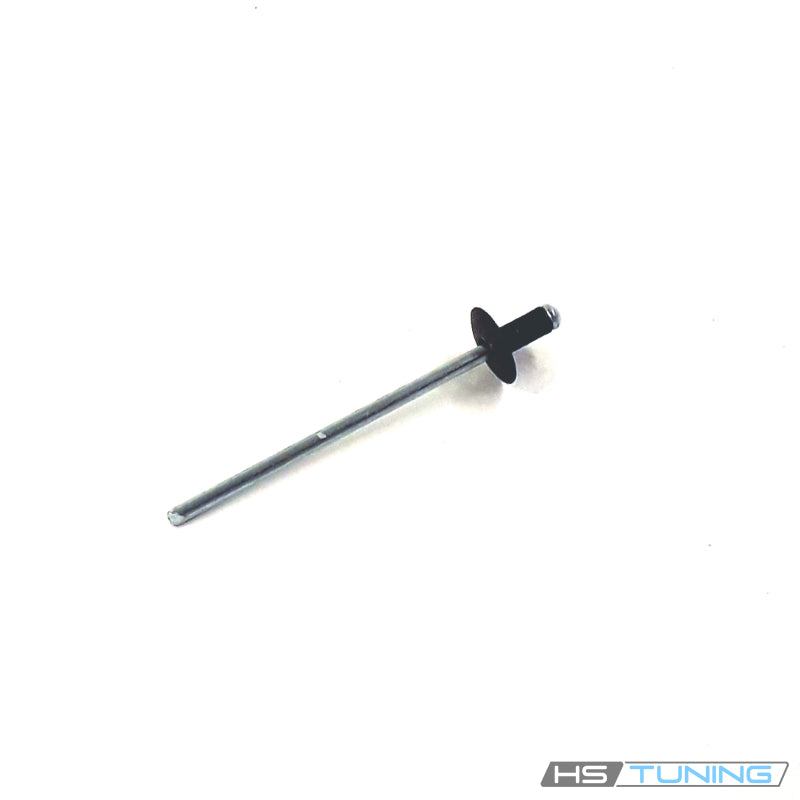

Genuine blind rivet for original body and door attachments
The N-907-695-01 Genuine VW/Audi blind rivet secures the assigned original dash-panel bracket or front-door assembly connection on the A6 applications listed below. The 3.2 × 6 factory specification must match the receiving hole and original material stack.
This is an individual setting-type blind rivet, also called a pop rivet. Its mandrel is used to form the attachment during installation. It is different from a removable plastic push clip or a threaded screw.
Technical details
- Complete factory number: N-907-695-01.
- Factory specification: 3.2 × 6.
- Design: blind rivet with setting mandrel for the assigned original attachment.
- Quantity supplied: one individual rivet.
The nominal factory size identifies the rivet rather than packaged shipping dimensions. Correct hole and material-stack fit matter to the joint. Do not substitute a larger rivet or assume that any rivet of similar apparent length will form the correct attachment.
Common reasons to replace
- The original rivet was removed to release the bracket during service.
- The rivet is loose or its formed attachment is damaged.
- The original rivet is missing.
- The mandrel or rivet body has been damaged before installation.
- A previous repair used incorrect attachment hardware.
Inspect the bracket and receiving holes before fitting replacement hardware. A new rivet cannot repair an enlarged hole, cracked bracket or distorted mounting area. Correct the receiving components according to the applicable repair procedure first.
Vehicle fitment
The rows distinguish C6 dash-panel bracket applications from C4 front-door assembly applications. Match the original attachment and complete rivet number; this is not a structural safety-belt anchorage fastener.
| Vehicle | Model years | Engine | Configuration | Application restrictions |
|---|---|---|---|---|
| Audi A6 | 2007 | 3.2L FSI gasoline V6 | C6 sedan or Avant; left-hand drive; PR L0L; Original dash-panel bracket attachment | PR L0L assigned 3.2×6 blind rivet at original 4F0805333 dash-panel bracket. Not a structural seat-belt anchorage fastener. |
| Audi A6 | 2007 | 4.2L FSI gasoline V8 | C6 sedan; quattro; left-hand drive; PR L0L; Original dash-panel bracket attachment | PR L0L assigned 3.2×6 blind rivet at original 4F0805333 dash-panel bracket. Sedan only for this engine; not a seat-belt anchorage fastener. |
| Audi A6 Avant | 2009 | 3.0L supercharged gasoline V6 | C6 wagon, quattro, PR K8D; 6-speed automatic | Original 4F0805333 dash-panel bracket connection requiring N-907-695-01 3.2 x 6 blind rivet. Not a structural seat-belt anchorage. |
| Audi A6 | 1996 | 2.8L naturally aspirated gasoline V6 | C4 sedan, FWD or quattro; Original manual or automatic configuration | Original front-door lock, handle or window-system assembly attachment specifically requiring N-907-695-01 3.2 x 6 rivet. Confirm the exact riveted connection; not every door fastener uses this rivet. |
| Audi A6 Avant | 1996 | 2.8L naturally aspirated gasoline V6 | C4 wagon, quattro; Original factory automatic configuration | Original front-door assembly attachment specifying N-907-695-01 3.2 x 6 blind rivet. Match the original hole and material stack; not a dash-bracket application on this generation. |
Installation guidance
Follow the factory access and repair procedure for the specified dash bracket or front-door assembly. Protect nearby wiring and trim, remove old rivet remnants without enlarging the holes and align the bracket before setting the new rivet. Use the specified blind-rivet tool and original attachment method.
Confirm the formed rivet holds the bracket firmly and its head seats correctly. Remove loose remnants from the work area, restore disturbed wiring and trim and check that the bracket does not interfere with adjoining components.
Ordering information
New and unused inventory. Supplied as one genuine blind rivet. Bracket, dash panel, trim, rivet tool and a complete hardware kit are not included. Confirm the number required for the original mounting points.
