OVERVIEW
Genuine screw for the original exterior trim attachment

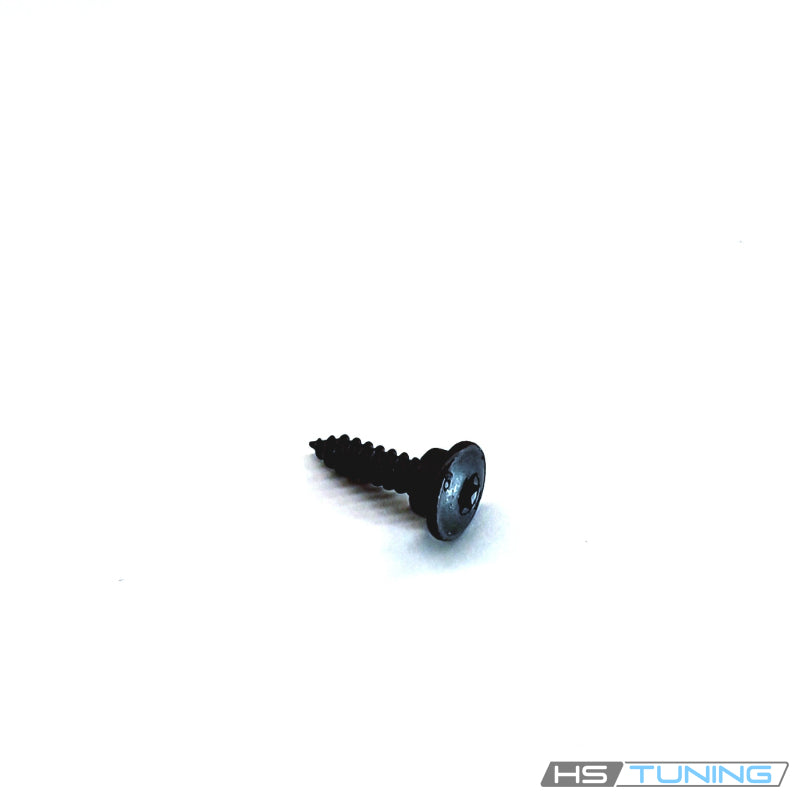

The N-907-720-01 Genuine VW/Audi screw secures the assigned exterior trim attachment on the configurations below. Its factory catalog specification is 4.8×8×19.
The verified applications include the C5 allroad rear wheel-arch flare and a separate TT Roadster bumper/guide connection. These assemblies use several different screws and clips. Match the complete factory number and original receiving feature.
Technical details
- Complete factory number: N-907-720-01.
- Factory specification: 4.8 × 8 × 19.
- Design: internal-drive panel screw with a broad bearing head.
- Quantity supplied: one individual screw.
The complete catalog specification identifies the factory hardware. Correct engagement depends on the original insert or receiving feature. This small mounting screw is separate from the flare, bumper and body panels.
Common reasons to replace
- The original screw is missing after exterior trim service.
- The drive recess is damaged.
- The threads are damaged and no longer retain correctly.
- The head is distorted.
- Incorrect hardware was used at the original attachment.
Inspect the flare or guide mounting tab and receiving insert before installation. A new screw cannot repair a cracked panel tab or stripped insert. Replace other damaged attachment components as required.
Vehicle fitment
Observe the original allroad PR 5E9 flare arrangement and TT K8J Roadster restriction. The table identifies separate uses of the same screw and does not establish a TT Coupe application.
| Vehicle | Model years | Engine | Configuration | Application restrictions |
|---|---|---|---|---|
| Audi allroad | 2001–2005 | 2.7L twin-turbocharged gasoline V6 | C5 quattro wagon; PR 5E9; Original rear wheel-arch flare attachment | Original rear wheel-arch widening attachment assigned N90772001; PR 5E9 sill/door-cover arrangement. Not the wheel-lug hardware. |
| Audi allroad | 2004–2005 | 4.2L gasoline V8 | C5 quattro wagon; PR 5E9; Original rear wheel-arch flare attachment | Original rear wheel-arch widening position assigned N90772001; PR 5E9 required. Confirm installed flare and receiving insert. |
| Audi TT | 2005 | 1.8L turbocharged gasoline inline-four | 8N Roadster; front-wheel drive or quattro; PR K8J; Original bumper/guide mounting arrangement | Original Roadster bumper/guide fastener position assigned N90772001; K8J only for this row, not Coupe. |
Installation guidance
Follow the factory access procedure for the selected attachment. Align the trim with the original receiving feature, start the screw without cross-threading and tighten to the attachment-specific specification without crushing the panel tab.
Verify that the retained trim is secure and has the required clearance from the tire and nearby components. Reinstall the remaining original clips and screws and check alignment after service.
Ordering information
Supplied as one genuine screw. Flare, bumper, guide, insert and a complete hardware set are not included. Confirm the original part number, mounting location and required quantity.
