OVERVIEW
Genuine VW/Audi radiator support screw, part number N-908-082-01. This original 6 x 18.5 mm panel fastener is specified in the radiator support/mounting arrangement for the configurations below. One screw is supplied; the selected catalog lists four for this assembly.
Technical details
- Original number: N-908-082-01 / N90808201.
- Published nominal size: 6 x 18.5 mm.

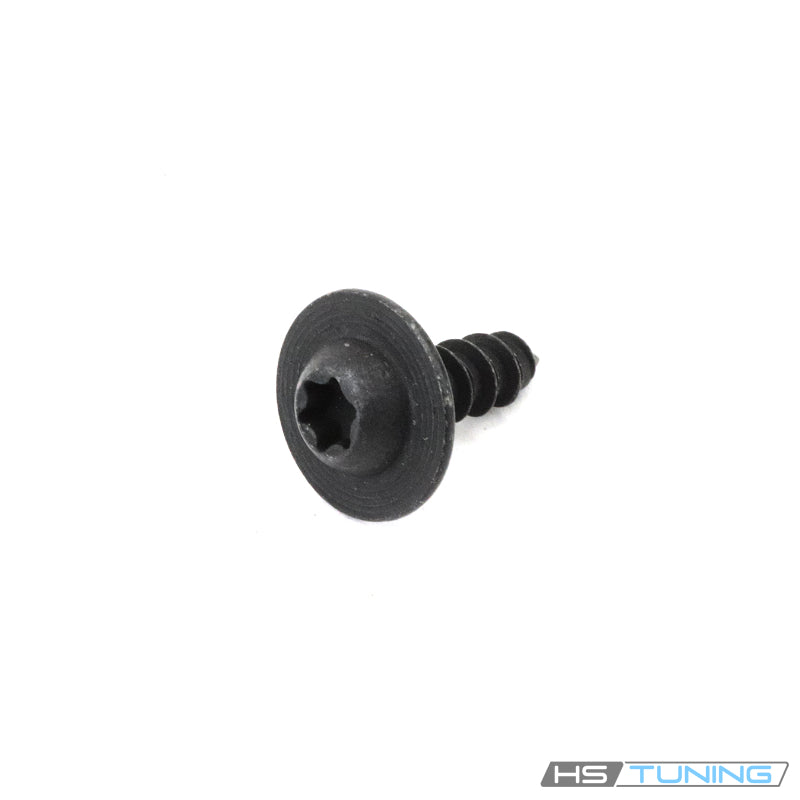

- Internal six-lobe drive with a wide head and coarse panel-fastener thread.
- Assigned application: radiator support/mounting hardware.
- Radiator, support, brackets and other hardware are separate.
The screw retains its assigned support or mounting piece at the original attachment. Correct hardware helps keep the radiator arrangement seated as designed. This is panel mounting hardware, not a coolant drain or a coolant pressure seal.
Radiator assemblies can use different screws, brackets, rubber mounts and retaining pieces. Match N90808201 at the actual attachment point. The published 6 mm nominal size does not make this panel screw interchangeable with an M6 machine-thread bolt.
Common reasons to replace
Inspect the hardware during radiator replacement, support service or front-end access work. Replace missing screws, a damaged drive recess, deformed heads, worn threads or corrosion that prevents proper installation. Renew hardware wherever the factory procedure requires replacement.
Earlier repairs may leave incomplete mounting hardware or an unsuitable substitute. Inspect the complete support arrangement before reassembly, including the condition of any separately specified mating retainer.
A loose mounting piece or abnormal movement requires inspection of the support, brackets, mounts and related components. A new screw cannot repair a cracked support, torn mount, damaged retainer or distorted attachment. Repair those faults before securing the assembly.
Coolant leaks or overheating require diagnosis of the cooling system. Replacing this mounting screw does not repair a leaking radiator, failed hose connection or cooling-system fault.
Installation and service notes
Follow the factory radiator and support procedure for the exact vehicle. Allow the cooling system to cool before performing work that opens a coolant connection, and complete the prescribed draining, access and support steps.
Identify the assigned screw position and inspect the mating attachment. Position the radiator and mounting arrangement correctly before starting the fastener. Do not use the screw to force a misaligned bracket or support into place.
Use the correct six-lobe tool, fully seated in the drive recess. Follow the original thread path and the factory installation method for the mating retainer. Do not substitute a machine-thread bolt simply because it has a similar diameter.
Apply the specified tightening requirement for this panel mounting position. Do not infer torque from the nominal size or copy the setting used for a structural support bolt. Excessive tightening can damage the screw, mating retainer or mounting piece.
Confirm that every required mounting position contains the correct hardware and that the radiator assembly has its prescribed seating and clearance. Refit the related ducts, hoses and electrical connections as directed.
Where cooling connections were disturbed, complete the specified coolant filling, bleeding and leak checks. Perform the required operating checks after reassembly. This listing supplies one original screw; select the remaining hardware separately.
Fitment
| Vehicle | Model years | Engine | Configuration | Application restrictions |
|---|---|---|---|---|
| Volkswagen GTI | 2006–2008 | 2.0L turbocharged FSI gasoline, BPY | Mk5 hatchback, front-wheel drive; 6-speed manual | Specified original screw in the radiator support/mounting arrangement. Four cataloged for this radiator assembly; one supplied. Confirm N90808201 and assigned panel attachment. |
| Volkswagen GTI | 2006–2008 | 2.0L turbocharged FSI gasoline, BPY | Mk5 hatchback, front-wheel drive; 6-speed DSG | Specified original screw in the radiator support/mounting arrangement. Four cataloged for this radiator assembly; one supplied. Confirm N90808201 and assigned panel attachment. |
Confirm original N90808201 at the assigned radiator support attachment before ordering. One screw supplied.
