OVERVIEW
Genuine VW/Audi Blind Pop Rivet
N-908-123-02 is an original blind rivet with a nominal 6 x 10 mm specification. It is used at assigned riveted fastening points, including selected bumper cover support and rear body/package tray retainer locations. The rivet is installed from one side of the joint with an appropriate rivet-setting tool; pulling the mandrel forms the retaining end so the specified components are held together. One individual rivet is supplied.
Technical details
- OEM number: N-908-123-02 / N90812302.
- Nominal rivet size: 6 x 10 mm.

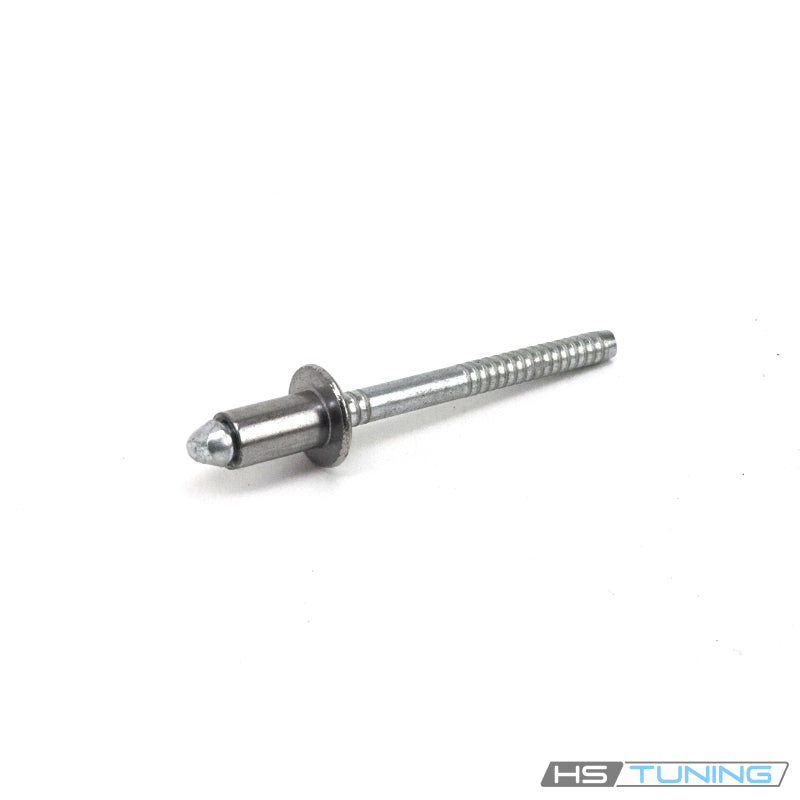

- Form: Blind/pop rivet with setting mandrel, as shown in the original photograph.
- Assigned uses: Riveted component retention at the mounting positions identified in the original parts diagram.
- Service: Install a new rivet after removing the old fastener; a set and drilled-out rivet cannot be reused.
- Supply: One rivet. Supports, shields, panels and the rivet-setting tool are separate.
Common reasons to replace
New rivets are needed when a riveted component is removed for repair or replacement. Missing hardware, a loose or incompletely set rivet, corrosion or damage around the joint can also require renewal. If the retained component has become loose, inspect its mounting holes and the underlying support for distortion, wear or cracking before installation. A correctly set rivet depends on the intended joint and hole condition; fitting new hardware will not repair an enlarged hole or a damaged mounting flange. Follow the original body repair instructions for any required repair to the attachment.
Installation and service notes
Confirm the OEM number, rivet location and specified component stack before removing the old fastener. Protect nearby wiring, lines, trim and surfaces during drilling or removal, and remove debris from the area. Keep the original hole size and mounting arrangement intact; do not enlarge the hole to accommodate unrelated hardware. Align and support the parts, then use a suitable rivet-setting tool and the vehicle-specific installation procedure. Check that the rivet is fully seated and the retained component is secure. Do not substitute a screw, a different rivet length or an impact-bar mounting bolt for this assigned fastening point.
Vehicle fitment
The following confirmed profiles are restricted to the identified original riveted mounting point that specifies N90812302. A listed vehicle can use multiple rivet sizes, and this rivet is not a universal replacement for every body or support fastener.
| Vehicle | Model years | Engine | Configuration | Application restrictions |
|---|---|---|---|---|
| Volkswagen Passat | 2021 | 2.0L turbo gasoline | SE; sedan; Match original riveted mounting assembly | Front bumper cover cross-member/support rivet, diagram position 16; not an impact-bar mounting bolt. |
| Volkswagen Passat | 2022 | 2.0L turbo gasoline | SE / Limited Edition; sedan; Match original riveted mounting assembly | Front bumper cover cross-member/support rivet, diagram position 16; not an impact-bar mounting bolt. |
| Audi A6 | 2015 | 2.0L turbo gasoline | Premium Plus; C7 sedan; Match original riveted mounting assembly | Rear body/package tray retainer rivet, diagram position 8; match original riveted position. |
| Audi A6 | 2018 | 2.0L turbo gasoline | Premium; quattro; C7 sedan; Match original riveted mounting assembly | Rear body/package tray retainer rivet, diagram position 8; match original riveted position. |
| Audi A6 | 2018 | 3.0L supercharged gasoline V6 | Premium; quattro; C7 sedan; Match original riveted mounting assembly | Rear body/package tray retainer rivet, diagram position 8; match original riveted position. |
| Audi A6 | 2000–2004 | 2.7L twin-turbocharged gasoline V6 | C5 sedan; quattro; Original factory manual or automatic | Rear window-regulator attachment requiring N90812302. Catalog specifies four rivets for the repair; sold individually. Match original riveted connection. |
| Audi S4 | 2002 | 2.7L twin-turbocharged gasoline V6 | B5 sedan or Avant; quattro; Original factory manual or automatic | Original six-cylinder radiator-support rivet. Match original N90812302 at the support bracket; excludes mounting bolts and other rivet sizes. |
| Audi A6 Premium Plus | 2014 | 3.0L supercharged gasoline V6 | C7 sedan; quattro; Eight-speed Tiptronic | Rear-body mounting rivet at the original position specifying N90812302. Confirm riveted location before ordering. |
This rivet also has verified window-regulator and radiator-support applications. Renew a rivet removed during regulator or support service; a drilled-out rivet cannot recreate its original clamping connection. Inspect the mounting holes for enlargement or cracks and clear metal fragments before installing the replacement. A loose window mechanism requires inspection of the regulator and mounting panel, while a displaced radiator support requires inspection of the bracket and surrounding structure. Match the specified rivet and grip arrangement at the actual repair position.
Confirm N90812302, original rivet position and mounting arrangement by VIN before ordering.
