Genuine VW/Audi Front Subframe Bolt
N-908-235-01 is an original hex-head fastener with a washer for specified front subframe attachment positions. Its nominal M12 x 1.5 x 110 mm specification identifies the thread diameter, pitch and bolt length needed at the assigned joint. The bolt helps clamp the subframe assembly in its designed position; its length, washer arrangement and original application must match the vehicle's fastening diagram. One individual bolt is supplied.
Technical details
- OEM number: N-908-235-01 / N90823501.
- Nominal thread diameter: M12.
- Thread pitch: 1.5 mm.
- Nominal bolt length: 110 mm.

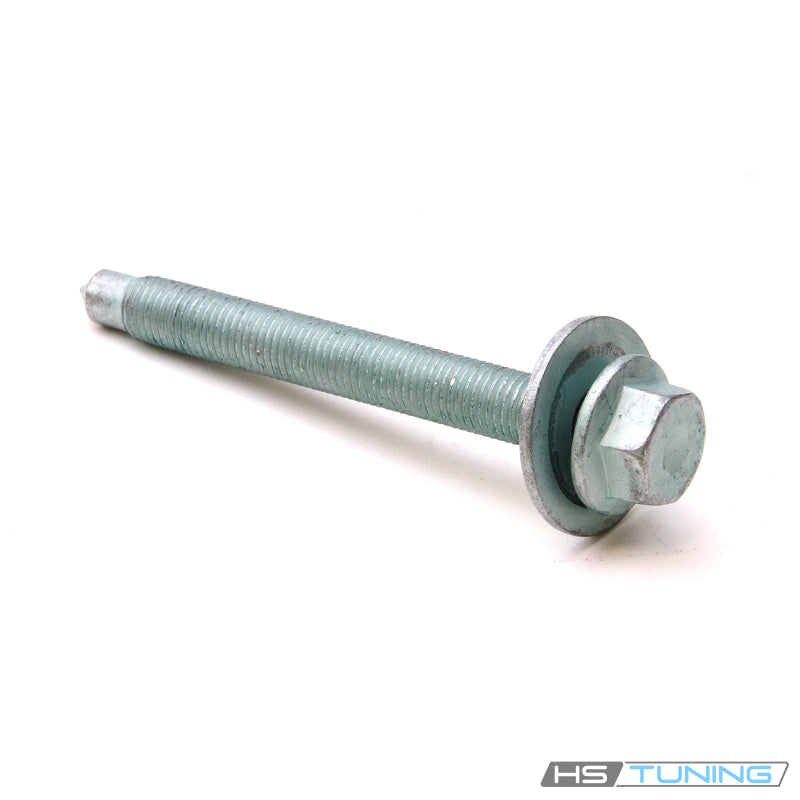

- Head and seating: External hex head with an attached washer, as shown in the original product photograph.
- Renewal: The genuine-part supplier identifies this subframe attachment bolt as single-use stretch hardware; renew it when removed from its specified application.
- Supply: One bolt. This is not a complete subframe fastening set.
Common reasons to replace
Renew the assigned bolt when the subframe is lowered or removed for suspension, steering, drivetrain or related repair work. Replacement is also appropriate for missing hardware, damaged threads, corrosion, a deformed washer or rounded hex drive surfaces. Because this application uses single-use stretch hardware, an old bolt should not be reused merely because it appears undamaged. If a subframe joint has been loose, inspect the mounting points, receiving threads, locating surfaces and related fasteners before reassembly. New hardware alone will not correct a worn subframe bushing, a damaged body attachment or an incorrectly positioned assembly.
Installation and service notes
Support the subframe and connected components according to the vehicle-specific repair procedure. Confirm the original fastening position, bolt length and thread pitch before installation, and start the bolt by hand with the joint correctly aligned. Follow the specified tightening sequence, torque and angle procedure for that vehicle and mounting position. No universal M12 tightening value is supplied because the procedure depends on the original joint. Perform any required subframe positioning and wheel-alignment checks after the repair. Obtain the full set of replacement fasteners required for the job; ordering one bolt does not provide all bolts used on the assembly.
Vehicle fitment
These confirmed year, engine and body configurations require an original subframe attachment that specifies N90823501. Match the fastening diagram and VIN before ordering; the bolt is not a universal replacement for every subframe position.
| Vehicle | Model years | Engine | Configuration | Application restrictions |
|---|---|---|---|---|
| Volkswagen Passat | 2003–2004 | 1.8L turbo gasoline | GL / GLS; Confirm original subframe attachment position | Only attachment positions specifying N90823501. |
| Volkswagen Passat | 2003–2004 | 2.8L gasoline V6 | GL / GLS / GLX / GLX 4Motion, as equipped; Confirm original subframe attachment position | Only attachment positions specifying N90823501. |
| Volkswagen Passat | 2003–2004 | 4.0L gasoline W8 | W8; Confirm original subframe attachment position | Only attachment positions specifying N90823501. |
| Volkswagen Passat | 2004 | 1.8L turbo gasoline | GLS 4Motion; Confirm original subframe attachment position | Only attachment positions specifying N90823501. |
| Volkswagen Passat | 2004 | 2.0L turbo diesel | GL TDI / GLS TDI; Confirm original subframe attachment position | Only attachment positions specifying N90823501. |
| Audi A6 | 2002–2003 | 3.0L gasoline V6 | Base; front-wheel drive; Confirm original subframe attachment position | Only attachment positions specifying N90823501. |
| Audi A6 | 2002–2004 | 3.0L gasoline V6 | Base; quattro; Confirm original subframe attachment position | Only attachment positions specifying N90823501. |
| Audi A6 | 2002–2003 | 3.0L gasoline V6 | Avant; quattro; Confirm original subframe attachment position | Only attachment positions specifying N90823501. |
| Audi A6 | 2002–2003 | 2.7L twin-turbo gasoline V6 | Base; quattro; Confirm original subframe attachment position | Only attachment positions specifying N90823501. |
| Audi A6 | 2002–2004 | 4.2L gasoline V8 | Base; quattro; Confirm original subframe attachment position | Only attachment positions specifying N90823501. |
| Audi S6 | 2002–2003 | 4.2L gasoline V8 | Avant; quattro; Confirm original subframe attachment position | Only attachment positions specifying N90823501. |
| Audi RS6 | 2003 | 4.2L twin-turbo gasoline V8 | Base; quattro; Confirm original subframe attachment position | Only attachment positions specifying N90823501. |
| Audi S4 | 2004 | 4.2L gasoline V8 | Cabriolet; quattro; Confirm original subframe attachment position | Only attachment positions specifying N90823501. |
| Volkswagen Passat | 2005 | 2.8L gasoline V6 | Front-wheel drive; sedan or wagon; B5.5; Five-speed manual; original gearbox code DVZ or GFN | Original subframe/camber-correction fastening bolt N90823501 at 399-20 position 31. Match installed gearbox, subframe and VIN; use only the designated original position. |
| Volkswagen Passat | 2005 | 1.8L turbo gasoline inline-four | Front-wheel drive; sedan or wagon; B5.5; Five-speed manual; original gearbox code EZG or GFY | Original subframe/camber-correction fastening bolt N90823501 at 399-20 position 31. Match installed gearbox, subframe and VIN; use only the designated original position. |
| Volkswagen Passat | 2005 | 1.8L turbo gasoline inline-four or 2.0L TDI diesel inline-four | Front-wheel drive; sedan or wagon; B5.5; Five-speed automatic; match original EZS or GMR gearbox and engine combination | Original subframe/camber-correction fastening bolt N90823501 at 399-80 position 25. Match installed gearbox, subframe and VIN; use only the designated original position. |
| Volkswagen Passat | 2005 | 2.8L gasoline V6 | Front-wheel drive; sedan or wagon; B5.5; Five-speed automatic; original gearbox code EZZ | Original subframe/camber-correction fastening bolt N90823501 at 399-80 position 25. Match installed gearbox, subframe and VIN; use only the designated original position. |
| Volkswagen Passat | 2005 | 1.8L turbo gasoline inline-four | 4Motion; sedan or wagon; B5.5; Five-speed automatic; original gearbox code FAL | Original subframe/camber-correction fastening bolt N90823501 at 399-85 position 25. Match installed gearbox, subframe and VIN; use only the designated original position. |
| Volkswagen Passat | 2005 | 2.8L gasoline V6 | 4Motion; sedan or wagon; B5.5; Five-speed automatic; original gearbox code FAS | Original subframe/camber-correction fastening bolt N90823501 at 399-85 position 25. Match installed gearbox, subframe and VIN; use only the designated original position. |
Confirm N90823501, subframe position and original fastening specification by VIN.
