OVERVIEW
Factory Torx combination hardware for body attachments

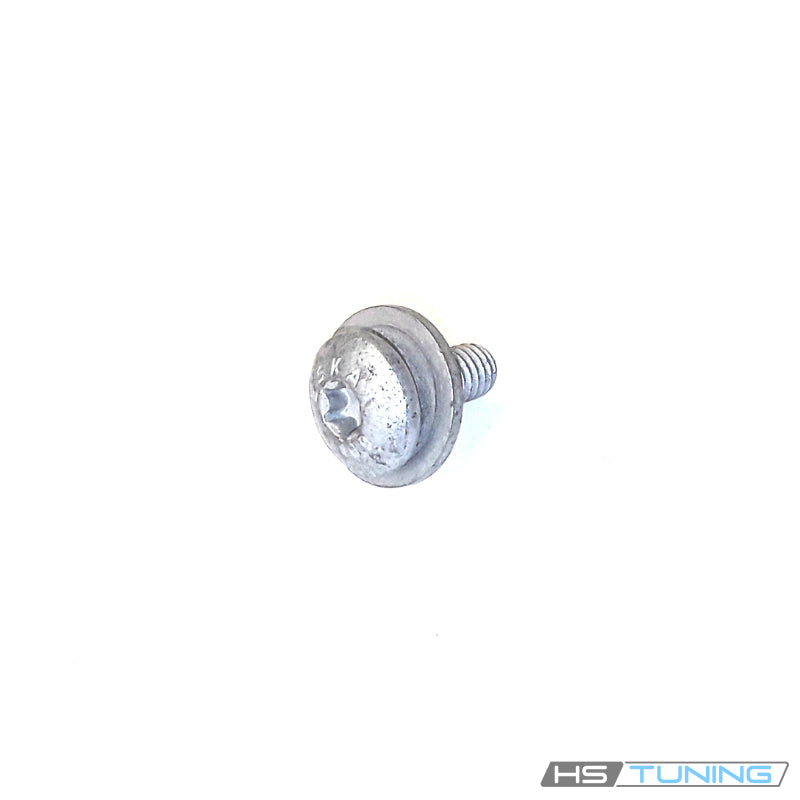

N-909-493-02 is a Genuine VW/Audi M6 x 15.5 combination bolt with a recessed Torx drive and integrated washer. The confirmed B5 A4 application secures the front fender at the specified factory mounting point after the listed VIN change.
The washer-style bearing surface distributes the attachment load around the fixing point. Correct head profile, length and factory number matter when replacing body hardware, especially where the original bolt passes through a panel flange or bracket.
Technical details
- Complete factory number: N-909-493-02.
- Factory specification: M6 x 15.5 mm combination bolt with Torx drive and integrated washer.
- Design: Rounded head, recessed six-lobe drive and integrated washer-style bearing surface.
- Quantity supplied: one individual bolt.
The nominal fastening size identifies the factory bolt; it does not establish compatibility with every M6 body attachment. Match the complete number and original mounting arrangement.
Common reasons to replace
- A stripped or rounded drive recess that prevents reliable removal or tightening.
- Damaged threads, a bent shank or an impaired washer bearing surface.
- Missing original hardware or an incorrect substitute discovered during fender service.
Check the receiving thread or clip nut, panel flange and adjoining support for damage. A loose or misaligned panel can require correction of its mounting points as well as replacement hardware.
Vehicle fitment
The entries below identify confirmed front fender uses. The VIN restriction applies within the 2001 model year.
| Vehicle | Model years | Engine | Configuration | Application restrictions |
|---|---|---|---|---|
| Audi A4 | 2001 | 1.8L turbocharged gasoline or 2.8L 30-valve V6 gasoline | B5 sedan, FWD or quattro; Original configuration | Front fender attachment from VIN 8D-1-110001. Confirm B5 chassis and this complete bolt number at the original mounting point. |
| Audi A4 Avant | 2001 | 1.8L turbocharged gasoline or 2.8L 30-valve V6 gasoline | B5 wagon, quattro; Original configuration | Front fender attachment from VIN 8D-1-110001. Confirm original fastening position and complete part number. |
Installation guidance
Support and align the panel before tightening. Start the bolt by hand to avoid cross-threading, retain the original attachment arrangement and use the factory procedure for the exact joint.
Inspect panel alignment and clearance after installation. Replace a damaged receiving nut or mounting clip as required; tightening a new bolt into a damaged attachment will not restore a sound joint.
Ordering information
New and unused inventory. Sold individually as N-909-493-02. Confirm the complete number, chassis VIN and quantity needed before ordering.
