OVERVIEW
Genuine VW/Audi lower radiator mount screw, part number N-909-675-02. This original screw secures the assigned lower radiator mounting connection on the Audi allroad arrangement below. It is supplied individually for replacement of missing or damaged mounting hardware.
Technical details
- Original number: N-909-675-02 / N90967502.
- Published nominal size: 7 x 16.

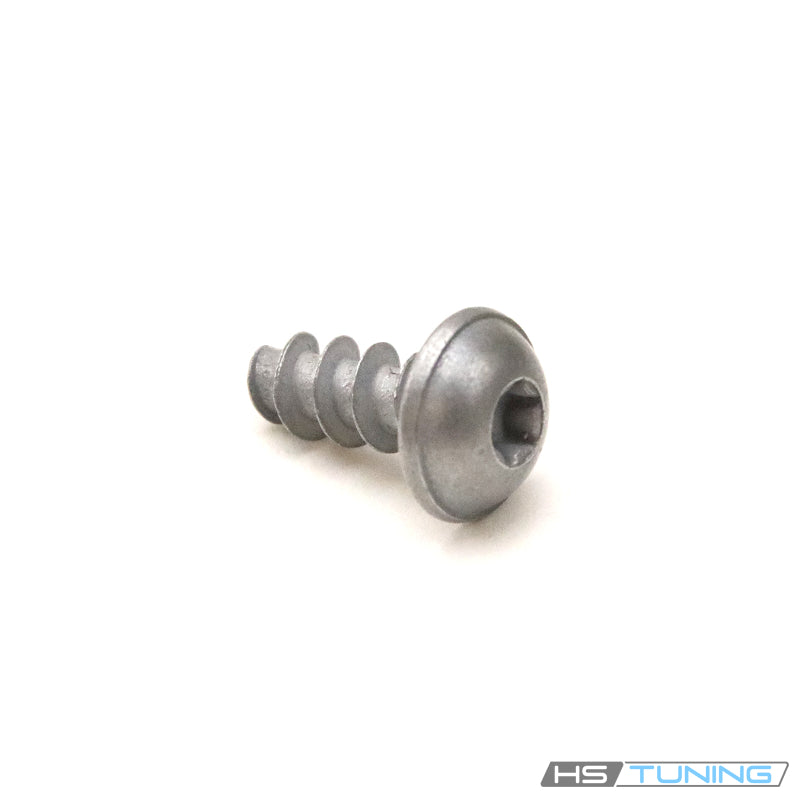

- Internal six-lobe drive with the pictured broad rounded head and coarse thread.
- Confirmed application below: specified lower radiator mount attachment.
- One screw supplied. Radiator, mounts, brackets and other hardware are separate.
The screw holds the designated mounting components together at their intended attachment point. Correct thread form, engagement and head contact matter to the joint. Its coarse thread should not be treated as an interchangeable metric machine-thread bolt.
The original number can serve other mounting locations on other vehicles, but the table below identifies the confirmed application for this listing. Do not select the screw merely because another radiator or body fastener looks similar.
Common reasons to replace
Replace a screw with a rounded internal drive, damaged threads, a distorted head, missing hardware or corrosion that prevents sound installation. Incorrect hardware from an earlier repair should be corrected after confirming the original attachment arrangement.
Radiator removal, mount replacement or adjacent service can expose the lower mounting screws for inspection. Check their condition and renew them whenever the applicable factory procedure requires replacement after removal.
A loose or damaged radiator mounting connection should be diagnosed as an assembly. A new screw cannot repair a broken mount, damaged bracket, worn receiver or cracked radiator component. Correct the underlying defect before fitting replacement hardware.
Installation and service notes
Follow the factory procedure for the exact radiator and lower mounting arrangement. Support the components as required before disconnecting their attachments. Observe any prescribed coolant-system preparation if the repair involves opening the system.
Inspect the receiver and mounting surfaces before installation. Confirm the original screw number and intended attachment point. Similar head shapes do not establish thread compatibility or adequate engagement.
Use the correct six-lobe tool, fully seated in the drive. Align the screw with its receiver and start it carefully without cross-threading or cutting an unintended path. Do not use the fastener to force a damaged or misaligned mount into position.
Apply the factory tightening requirement for this exact connection. Do not substitute a generic torque for a metric machine-thread bolt of similar nominal diameter. Follow the prescribed thread preparation and hardware renewal instructions.
Inspect adjacent mounting hardware and replace other damaged parts as required. This listing supplies one small screw rather than a radiator installation kit. Order the quantity needed for the actual repair and mounting arrangement.
After assembly, confirm correct seating of the lower mount and complete the required cooling-system and attachment checks. Investigate any remaining movement or damage at the connection instead of attempting to correct it by overtightening the screw.
Fitment
| Vehicle | Model years | Engine | Configuration | Application restrictions |
|---|---|---|---|---|
| Audi A4 allroad | 2015 | 2.0L turbocharged flex-fuel | B8.5 wagon, quattro; Original factory arrangement | Original lower radiator mount screw position requiring N90967502. Premium Plus wagon, quattro. Match actual mounting point; one screw supplied. |
Confirm N90967502 at the lower radiator mount before ordering. One screw supplied.
