OVERVIEW
Genuine VW/Audi Body Mounting Bolt M6 × 25mm
N-909-699-02 is an original body mounting fastener used at several specified Volkswagen fastening points. Confirmed applications include the lower front crossmember on selected non-GLI Jetta models, the upper front impact-bar fastening point on the original Eos arrangement, and selected Beetle headlamp-bracket or lift-gate stop positions. These are separate catalog applications: the bolt must be matched to the original component and mounting position. One individual bolt is supplied.
Technical details
- OEM number: N-909-699-02 / N90969902.
- Catalog specification: M6 × 25; 6mm nominal metric thread diameter and 25mm nominal catalog length.

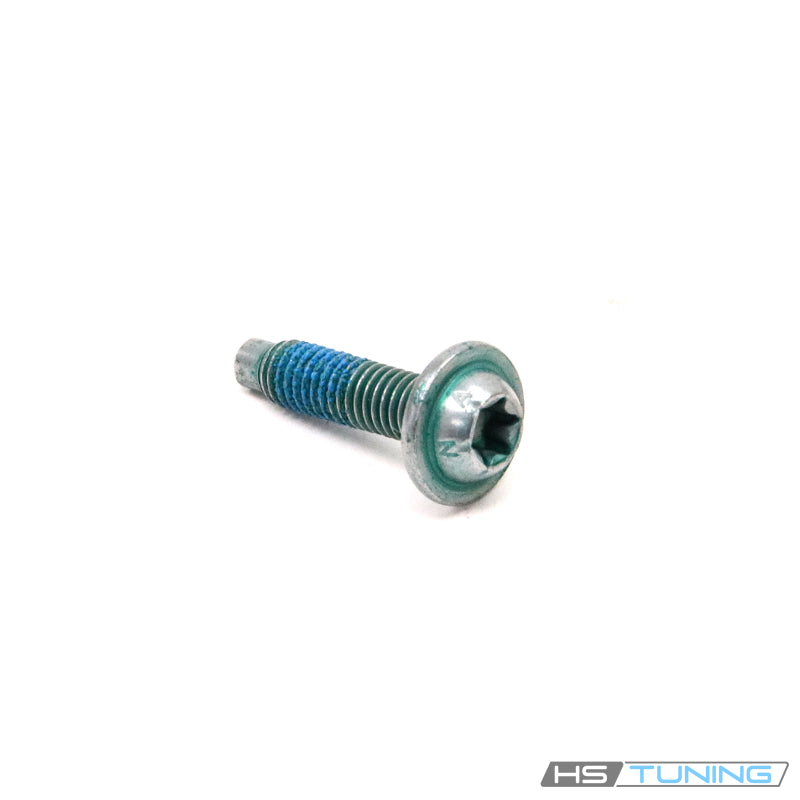

- Head and drive: Rounded head with an integral seating collar and internal drive recess, as shown in the original product photo.
- Catalog names vary by installation: Lower crossmember bolt, impact-bar upper bolt, bracket lower bolt or stop/buffer bolt.
- Application: Only the original fastening point specifying this full OEM number.
- Supply: One bolt; crossmember, impact bar, headlamp bracket, stop and remaining hardware are separate components.
Common reasons to replace
Replace this fastener when the drive recess is damaged, its threads are stripped or corroded, or its head and seating collar no longer bear correctly against the assigned surface. Missing hardware or an incorrect substitute should also be corrected during service to the original mounting assembly. A tool that is not fully engaged can damage the recess and make removal or accurate installation difficult.
Inspect the receiving threads and the mounted component before installing a new bolt. A bent bracket, cracked mounting tab, distorted crossmember or damaged stop requires separate attention. Replacing a fastener alone cannot restore a damaged assembly. If a component has been loose or is misaligned, inspect the complete fastening arrangement and identify why it moved rather than assuming this single bolt is the only repair needed.
Installation and service notes
Confirm the complete part number, equipment and original mounting position before ordering. This fastener appears under different catalog names because its function changes with the installation. For the Jetta profiles below, retain the non-GLI lower-crossmember restriction. For the listed Beetle headlamp application, confirm the original HID bracket arrangement. Lift-gate stop applications require the original stop and body configuration.
Use the vehicle-specific access and repair procedure for the component being serviced. Support the assembly as required, inspect the receiving threads, start the bolt by hand and fully engage the correct drive tool. Follow the original tightening procedure and any instructions for pre-applied thread treatment. Do not use a generic tightening value across these different body applications or apply additional compound without the applicable service instruction. Check final component positioning and operation after assembly.
Vehicle fitment
The confirmed profiles below identify the original mounting function as well as the vehicle configuration. Check the assigned fastening diagram, equipment and VIN before purchase. This bolt does not replace every fastener on the listed component.
| Vehicle | Model years | Engine | Configuration | Application restrictions |
|---|---|---|---|---|
| Volkswagen Jetta | 2015 | 2.0L gasoline inline-four | Base; Mk6 sedan; without GLI; Match original body mounting assembly | Original lower crossmember position 14; verify original non-GLI front assembly. |
| Volkswagen Jetta | 2015–2017 | 1.8L turbo gasoline inline-four | Mk6 sedan; without GLI; matched original front assembly; Match original body mounting assembly | Original lower crossmember position 14; confirmed SE, SEL and Sport catalog profiles according to year. |
| Volkswagen Jetta | 2016–2018 | 1.4L turbo gasoline inline-four | Mk6 sedan; without GLI; matched original front assembly; Match original body mounting assembly | Original lower crossmember position 14; S/SE catalog profiles and 2018 Wolfsburg Edition reference confirm this bolt where original lower crossmember specifies it. |
| Volkswagen Jetta | 2015 | 2.0L TDI diesel inline-four | TDI SE / TDI SEL; Mk6 sedan; Match original body mounting assembly | Original lower crossmember position 14; non-GLI original front assembly only. |
| Volkswagen Jetta Hybrid | 2016 | 1.4L turbo gasoline/electric hybrid | Hybrid SEL Premium; Mk6 sedan; Match original body mounting assembly | Original lower crossmember position 14 specifying N90969902; match original front assembly. |
| Volkswagen Eos | 2007–2011 | 2.0L turbo gasoline inline-four | Original convertible body; match original front assembly; Match original body mounting assembly | Original front impact-bar upper bolt at position 14; match original beam and fastening diagram. |
| Volkswagen Eos | 2007–2008 | 3.2L gasoline VR6 | 3.2 / VR6 convertible; Match original body mounting assembly | Original front impact-bar upper fastening point specifying this exact bolt; match original assembly. |
| Volkswagen Beetle | 2016 | 1.8L turbo gasoline inline-four | SEL; original HID headlamps; Match original body mounting assembly | Lower headlamp mounting-bracket bolt; factory HID arrangement only. Confirm original bracket and fastening point. |
| Volkswagen Beetle | 2016 | 2.0L turbo gasoline inline-four | R-Line SEL Coupe; Match original body mounting assembly | Original lift-gate stop/buffer fastening position 4 specifying N90969902; match original stop and body configuration. |
| Volkswagen Beetle | 2017 | 1.8L turbo gasoline inline-four | Dune Coupe; Match original body mounting assembly | Original lift-gate stop/buffer fastening position 4 specifying N90969902; match original stop and body configuration. |
This listing supplies one small mounting bolt. The related body component and other hardware are sold separately.
