Genuine VW/Audi

N-909-722-01 Genuine VW/Audi Multi-Purpose Mounting Screw - 6 x 25 mm

N-909-722-01 Genuine VW/Audi Multi-Purpose Mounting Screw - 6 x 25 mm

$2.78 USD
$2.78 USD $2.78 USD
Sale Sold out
Shipping calculated at checkout.
In stock

N-909-722-01

View full details

OVERVIEW

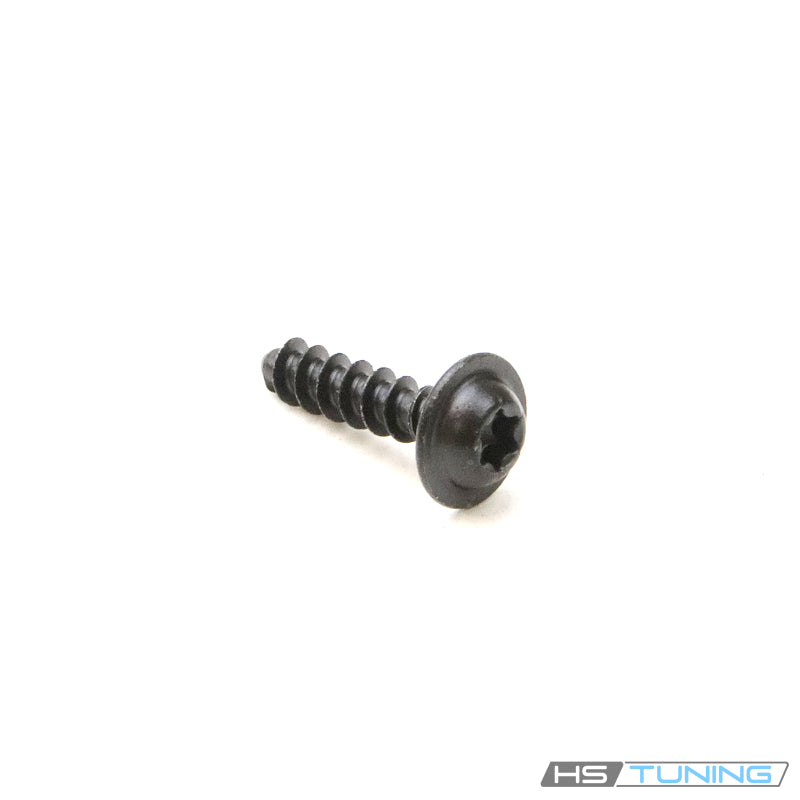

Genuine VW/Audi Multi-Purpose Mounting Screw

N-909-722-01 is a genuine replacement screw used at specified body and cooling-system mounting points. Exact applications include a front bumper side bracket and a radiator / intercooler mount bracket. Select it by the original part number and fastening position: a matching vehicle model alone does not establish that every bracket on that vehicle uses this screw.

Technical details

  • OEM part number: N-909-722-01 / N90972201.
  • Catalog size: 6 x 25 mm.
  • Head: Low-profile lens head with an internal Torx drive.
  • Purpose: Retains the component at an assigned screw location; the correct head and shank geometry help the joint seat as designed.
  • Supply: One individual screw. Brackets, clips and retained components are supplied separately.

Common reasons to replace

Replace missing hardware during bracket, cooling component or front trim service. A damaged drive recess can prevent the tool from seating fully and make future removal difficult. Corroded or distorted threads, a bent shank, or a damaged head can also prevent the screw from engaging and seating correctly. Inspect the mating mounting point whenever the original screw has loosened or pulled out; replacing the screw alone will not repair a cracked bracket or stripped receiver.

Installation and service notes

Compare the removed screw and the vehicle diagram before installation. Start the screw by hand so that the original mounting point is engaged correctly, align the retained component without forcing it, and use a fully seated drive tool. Follow the repair procedure for that particular joint. Do not substitute a general suspension or engine bolt torque value for a small mounting screw, and do not force it into a damaged receiver. The listed size is not a published thread-pitch specification.

Vehicle fitment

The table identifies catalog-supported applications. Where a row lists multiple engines across a model-year range, those are the catalog's available configurations, not a claim that each engine was offered in every year. Match the vehicle's actual engine, equipment and original fastening diagram before ordering.

Vehicle Model years Engine Configuration Application restrictions
Volkswagen Arteon 2019–2023 2.0L turbo gasoline Original trim and mounting diagram; Match the original fastening location Only locations specifying N90972201; confirm the exact component and installed configuration by VIN.
Volkswagen CC 2009–2017 2.0L turbo gasoline or 3.6L VR6 gasoline Engine and trim availability varies by year; Match the original fastening location Only locations specifying N90972201; confirm the exact component and installed configuration by VIN.
Volkswagen Golf 2015; 2019–2021 1.4L / 1.8L gasoline or 2.0L TDI diesel, as equipped Catalog engine pool; not every engine applies to every listed year; Match the original fastening location Only locations specifying N90972201; confirm the exact component and installed configuration by VIN.
Volkswagen Golf Alltrack 2017–2019 1.8L turbo gasoline S / SE / SEL; Match the original fastening location Only locations specifying N90972201; confirm the exact component and installed configuration by VIN.
Volkswagen Golf R 2015; 2022–2025 2.0L turbo gasoline Original trim and mounting diagram; Match the original fastening location Only locations specifying N90972201; confirm the exact component and installed configuration by VIN.
Volkswagen Golf SportWagen 2015–2019 1.8L gasoline or 2.0L TDI diesel, as equipped Catalog engine pool; engine availability varies by year; Match the original fastening location Only locations specifying N90972201; confirm the exact component and installed configuration by VIN.
Volkswagen GTI 2015–2017 2.0L turbo gasoline Original trim and mounting diagram; Match the original fastening location Only locations specifying N90972201; confirm the exact component and installed configuration by VIN.
Volkswagen Jetta 2019–2025 1.4L or 1.5L turbo gasoline, as equipped Engine availability varies by year; Match the original fastening location Only locations specifying N90972201; confirm the exact component and installed configuration by VIN.
Volkswagen Passat 2006–2010 2.0L turbo gasoline or 3.6L VR6 gasoline Engine and trim availability varies by year; Match the original fastening location Only locations specifying N90972201; confirm the exact component and installed configuration by VIN.
Volkswagen Taos 2022–2025 1.5L turbo gasoline Original trim and mounting diagram; Match the original fastening location Only locations specifying N90972201; confirm the exact component and installed configuration by VIN.
Audi A3 2015 1.8L turbo gasoline Prestige; Match original intercooler mounting diagram Radiator / intercooler mount bracket screw positions specifying N90972201 only.

Use only at an original location specifying N90972201. Confirm the retained component and fastening position by VIN.
