OVERVIEW
Genuine VW/Audi inner CV axle flange bolt, part number N-909-911-02. This M10 x 52 fastener secures the matching inner constant-velocity joint to the transmission output flange. In the confirmed manual-transmission applications below, multiple bolts clamp the joint and its retaining arrangement evenly to maintain the connection between the gearbox and drive axle.
Technical details
- Original part number: N-909-911-02 / N90991102.
- Factory service designation: M10 x 52 mm; this is the fastener size, not a shipping measurement.

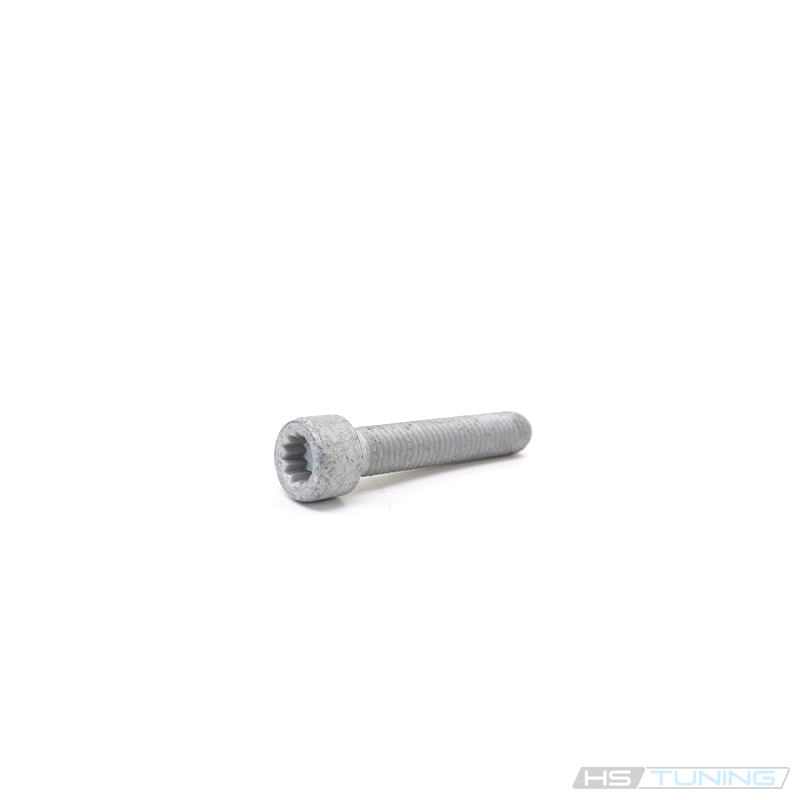

- Socket head with internal multipoint drive, visible in the product photo.
- Mounting position: inner CV joint / gearbox output flange on the verified applications.
- Supplied as one bolt. Six bolts are required for one matching joint; order the quantity needed for the repair.
Common reasons to replace
Use new fasteners when the factory procedure requires replacement after removing the inner CV joint for axle, gearbox or related service. Rounded drive recesses, damaged threads, corrosion or evidence of improper previous tightening also require attention. Volkswagen's service procedure calls for new bolts when reinstalling the matching drive shaft.
A loose axle connection, vibration or driveline noise needs proper diagnosis. Installing a new bolt alone will not correct a worn CV joint, bent axle, damaged flange, incorrect retaining plate or stripped threaded hole. Inspect the complete fastening arrangement and replace damaged mating components as required.
Installation and service notes
Confirm the installed transmission, flange and bolt length before ordering. Seat the correct multipoint tool fully in the recess and follow the VIN-specific tightening sequence and torque procedure. Ensure the joint is properly seated and that threads and contact surfaces meet the repair manual's cleanliness and lubrication requirements.
Do not substitute a similar-looking bolt based only on its diameter. The factory procedure distinguishes this M10 x 52 manual-transmission bolt from the shorter M10 x 23 N-909-910-02 used for the corresponding DSG arrangement. Use the fastener specified for the actual joint; this bolt is not the central wheel-hub axle bolt.
Fitment
| Vehicle | Model years | Engine | Configuration | Application restrictions |
|---|---|---|---|---|
| Volkswagen Jetta | 2009–2014 | 2.0L common-rail turbocharged diesel inline-4, Gen 1 | TDI sedan; Six-speed manual; matching M10 x 52 inner-CV fasteners | Inner CV joint to gearbox flange. Does not replace the shorter N-909-910-02 specified for DSG in this factory procedure. |
| Volkswagen Jetta SportWagen | 2009–2014 | 2.0L common-rail turbocharged diesel inline-4, Gen 1 | TDI wagon; Six-speed manual; matching M10 x 52 inner-CV fasteners | Inner CV joint to gearbox flange. Does not replace the shorter N-909-910-02 specified for DSG in this factory procedure. |
| Volkswagen Golf | 2010–2014 | 2.0L common-rail turbocharged diesel inline-4, Gen 1 | TDI hatchback; Six-speed manual; matching M10 x 52 inner-CV fasteners | Inner CV joint to gearbox flange. Does not replace the shorter N-909-910-02 specified for DSG in this factory procedure. |
| Volkswagen Beetle | 2013–2014 | 2.0L common-rail turbocharged diesel inline-4, Gen 1 | TDI coupe; Six-speed manual; matching M10 x 52 inner-CV fasteners | Inner CV joint to gearbox flange. Does not replace the shorter N-909-910-02 specified for DSG in this factory procedure. |
| Volkswagen Beetle Convertible | 2013–2014 | 2.0L common-rail turbocharged diesel inline-4, Gen 1 | TDI convertible; Six-speed manual; matching M10 x 52 inner-CV fasteners | Inner CV joint to gearbox flange. Does not replace the shorter N-909-910-02 specified for DSG in this factory procedure. |
| Volkswagen Beetle | 2015 | 2.0L EA288 TDI diesel; CVCA | TDI coupe; Six-speed manual only; matching M10x52 inner-CV joint fasteners | Inner axle joint to transmission flange, six bolts per side, sold individually. Excludes DSG/automatic and nonmatching flange hardware. |
| Volkswagen Golf | 2015 | 2.0L EA288 TDI diesel; CRUA | Mk7 TDI hatchback; Six-speed manual only; matching M10x52 inner-CV joint fasteners | Inner axle joint to transmission flange, six bolts per side, sold individually. Excludes DSG/automatic and nonmatching flange hardware. |
| Volkswagen Golf SportWagen | 2015 | 2.0L EA288 TDI diesel; CRUA | TDI wagon; Six-speed manual only; matching M10x52 inner-CV joint fasteners | Inner axle joint to transmission flange, six bolts per side, sold individually. Excludes DSG/automatic and nonmatching flange hardware. |
| Volkswagen Jetta | 2015 | 2.0L EA288 TDI diesel; CVCA | Mk6 TDI sedan; Six-speed manual only; matching M10x52 inner-CV joint fasteners | Inner axle joint to transmission flange, six bolts per side, sold individually. Excludes DSG/automatic and nonmatching flange hardware. |
| Volkswagen Passat | 2012–2014 | 2.0L common-rail TDI diesel; CKRA | NMS TDI sedan; Six-speed manual only; matching M10x52 inner-CV joint fasteners | Inner axle joint to transmission flange, six bolts per side, sold individually. Excludes DSG/automatic and nonmatching flange hardware. |
| Volkswagen Passat | 2015 | 2.0L EA288 TDI diesel; CVCA | NMS TDI sedan; Six-speed manual only; matching M10x52 inner-CV joint fasteners | Inner axle joint to transmission flange, six bolts per side, sold individually. Excludes DSG/automatic and nonmatching flange hardware. |
Confirm the VIN, gearbox code and installed flange. The table covers verified manual-transmission configurations; other engine and drivetrain combinations require separate checking.
