OVERVIEW
Factory self-locking hardware for the original convertible interior assembly

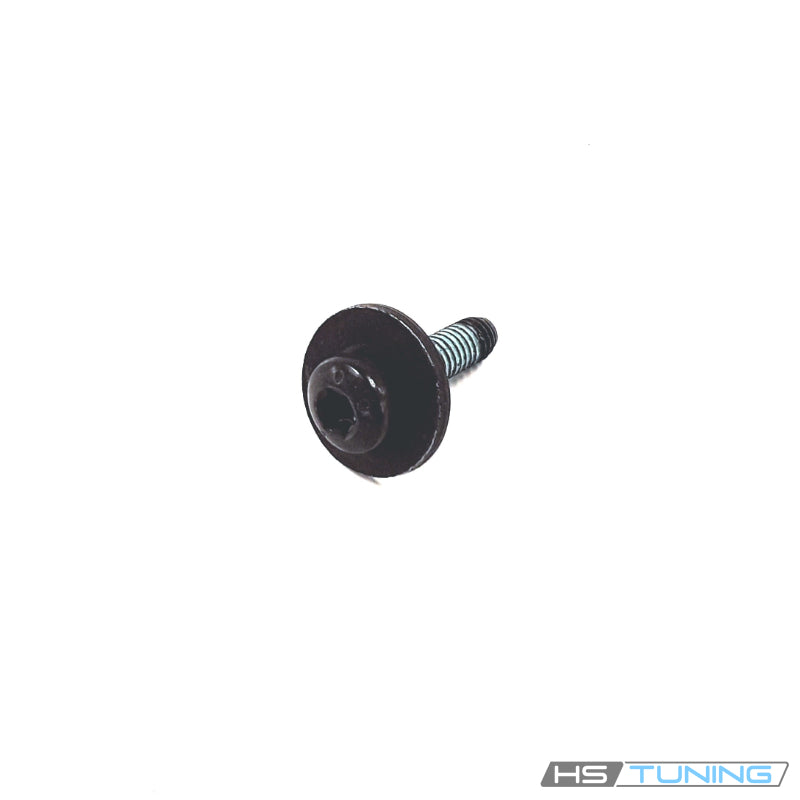

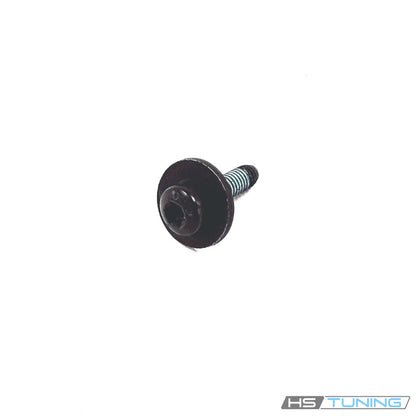

N-909-936-02 is the Genuine VW/Audi M6x25 self-locking bolt cataloged with the interior and safety-belt components on the specified A5 and S5 Cabriolet applications below. Use it only at the original assigned M6 fastening position.
Fasteners with a similar diameter can have different lengths, head forms and clamping requirements. Match the original factory number and assigned joint rather than choosing a bolt by appearance alone.
Technical details
- Complete factory number: N-909-936-02.
- Factory specification: M6 × 25 self-locking socket-head bolt.
- Design: recessed drive head, broad captive washer and factory locking feature.
- Quantity supplied: one individual bolt.
The nominal thread and length describe the fastener itself. This listing supplies one bolt rather than the full quantity required for an assembly. Matching nuts, washers, brackets and related parts are separate.
Common reasons to replace
- The original bolt is missing after component service.
- Threads are damaged or will not engage correctly.
- The drive head is rounded or otherwise damaged.
- Corrosion or deformation makes the original fastener unsuitable for reuse.
Inspect the mating threads, supported component and associated hardware. A new bolt cannot correct a cracked mounting feature, damaged bracket or stripped receiving thread.
Vehicle fitment
Use only at the assigned factory fastening position on the listed applications. These vehicle entries do not establish compatibility with every fastening point on the vehicle.
| Vehicle | Model years | Engine | Configuration | Application restrictions |
|---|---|---|---|---|
| Audi A5 | 2010 | 2.0L turbo gasoline | Cabriolet; type 8F; PR K8K | Original M6x25 interior/safety-belt assembly hardware position N90993602 only; not a substitute for 7/16-inch belt-anchor hardware. |
| Audi S5 | 2010 | 3.0L supercharged gasoline V6 | Cabriolet; type 8F; PR K8K | Original assigned M6x25 interior hardware position only; not for the V8 coupe or a different seat-belt attachment. |
Installation guidance
Follow the exact convertible interior and restraint-system repair procedure for the assigned bolt position. Replace hardware required for single use, use the correct drive tool and apply the specified tightening procedure. Do not substitute this metric fastener for a different belt-anchor bolt.
Check seating and engagement before final tightening. Verify that the serviced assembly is properly secured and that all required functional checks are completed.
Ordering information
One individual genuine bolt. Related nuts, washers, brackets and other assembly components are separate. Confirm VIN and original hardware number.
