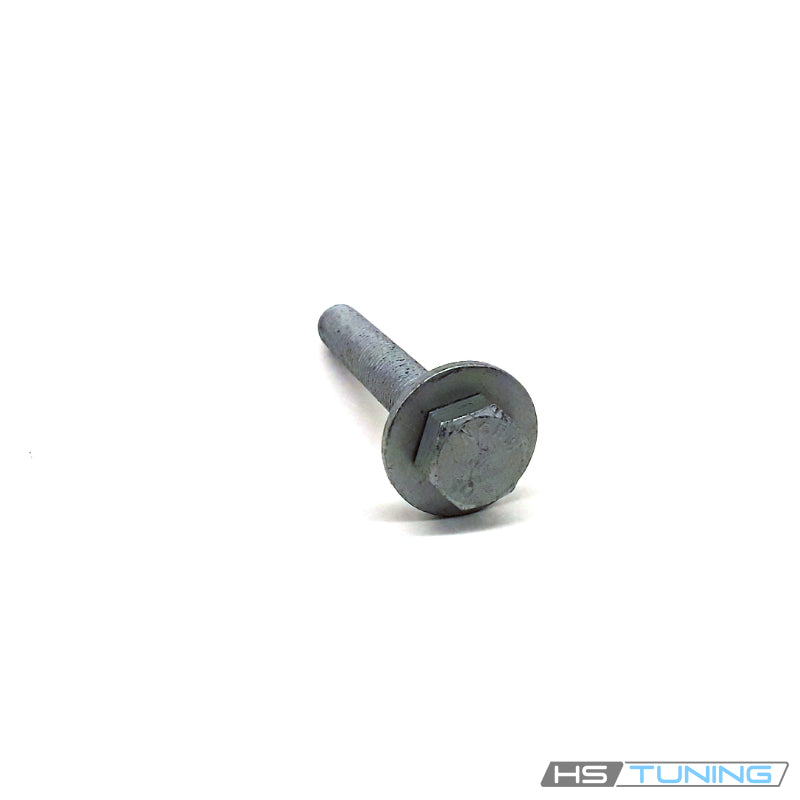

• N-910-166-02 Genuine VW/Audi M12 x 1.5 x 85 combination control arm bolt, hexagon head and washer, original product photo 1
  • N-910-166-02 Genuine VW/Audi M12 x 1.5 x 85 combination control arm bolt, threaded suspension bolt, repeated original archive photo 2
  • N-910-166-02 Genuine VW/Audi M12 x 1.5 x 85 combination control arm bolt, individual combination fastener, repeated original archive photo 3
  • N-910-166-02 Genuine VW/Audi M12 x 1.5 x 85 combination control arm bolt, original bearing arrangement, repeated original archive photo 4
  • N-910-166-02 Genuine VW/Audi M12 x 1.5 x 85 combination control arm bolt, complete control arm bolt, repeated original archive photo 5
  • N-910-166-02 Genuine VW/Audi M12 x 1.5 x 85 combination control arm bolt, head and shank profile, repeated original archive photo 6
  • N-910-166-02 Genuine VW/Audi M12 x 1.5 x 85 combination control arm bolt, front suspension mounting hardware, repeated original archive photo 7
1 7

Genuine VW/Audi

N-910-166-02 Genuine VW/Audi M12 x 1.5 x 85 Front Control Arm Bolt

N-910-166-02 Genuine VW/Audi M12 x 1.5 x 85 Front Control Arm Bolt

$9.00 USD
$9.00 USD $9.00 USD
Sale Sold out
Shipping calculated at checkout.
In stock

N-910-166-02

View full details

OVERVIEW

Factory combination bolt for the front wishbone connection

N-910-166-02 is the Genuine VW/Audi M12 x 1.5 x 85 hexagon-head combination bolt for the assigned front control arm mounting positions below.

The original washer arrangement provides the bearing surface required by the connection. Select by full part number and joint location: several neighboring suspension bolts have different working lengths, thread sizes and bearing designs.

Technical details

  • Complete factory number: N-910-166-02.
  • Factory specification: M12 x 1.5 x 85 mm.
  • Design: external hexagon-head combination bolt with washer arrangement.
  • Quantity supplied: one individual bolt.

M12 is the nominal thread diameter, 1.5 mm the thread pitch and 85 mm the catalog bolt length. The listing supplies one fastener; it does not include a control arm, bushing or mating nut.

Common reasons to replace

  • The mounting connection has been dismantled and requires replacement hardware.
  • Threads are damaged or cross-threaded.
  • The head or washer bearing surface is damaged.
  • The shank is bent or corrosion prevents proper seating.
  • The installed bolt is missing or differs from the original specification.

Check the control arm, bushings, mounting bracket and receiver threads. Repair worn or damaged components before assembly. Replacing a bolt alone does not correct a failed bushing or damaged mounting point.

Vehicle fitment

Match the confirmed engine, chassis and VIN restrictions below, then identify the exact bolt position.

Vehicle Model years Engine Configuration Application restrictions
Audi A8 2009 4.2L gasoline V8; PR T8T D3 standard wheelbase or A8 L; quattro; Assigned front wishbone mounting connection Original N91016602 position only; M12 x 1.5 x 85 mm. Other front suspension bolts differ.
Audi A8 2010 4.2L gasoline V8; PR T8T D3 standard wheelbase or A8 L; quattro; Assigned front wishbone mounting connection VIN 4E-A-000001 through 4E-A-020000; original N91016602 connection only.
Audi A6 2009 3.2L gasoline V6; PR TR2 C6 sedan; front-wheel drive; Assigned front wishbone mounting connection Original N91016602 connection only; not neighboring M12 x 120 or M10 hardware.

Installation guidance

Support the suspension and follow the factory procedure for the exact joint. Use new hardware where required, align the parts, start the threads by hand and apply the prescribed torque and angle sequence. Observe any loaded-suspension tightening position.

Verify seating and clearance and complete alignment checks required by the repair. Renew other single-use mounting hardware as directed by the vehicle procedure.

Ordering information

Sold individually as one genuine combination bolt. Control arm, bushings, nuts and other bolts are separate. Confirm VIN, exact mounting connection and quantity.
