OVERVIEW

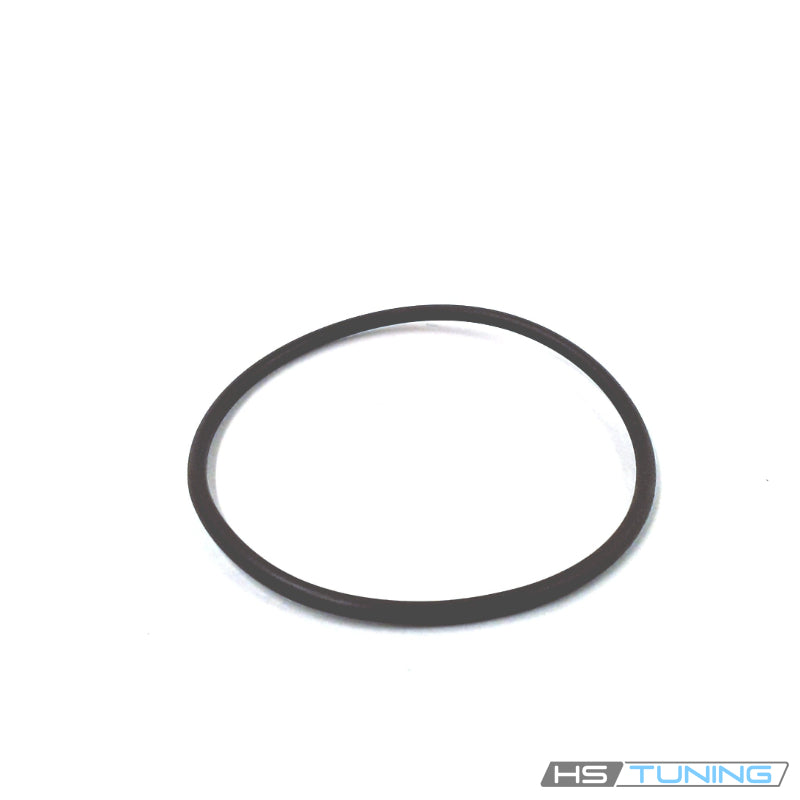

Genuine sealing ring for the original manual gearbox guide sleeve
The N-910-298-01 Genuine VW/Audi O-ring seals the assigned guide-sleeve and gearbox-housing connection on the manual-transmission configurations below. Its factory size is 60.82×2.62.
This is a separate circular sealing ring used at its original housing joint. It is not the rotating input-shaft lip seal, clutch release bearing, guide sleeve or a complete transmission seal kit. Match the full factory number and installed gearbox.
Technical details
- Complete factory number: N-910-298-01.
- Factory specification: 60.82 × 2.62.
- Design: circular O-ring for the original guide-sleeve/housing sealing position.
- Quantity supplied: one individual O-ring.
The nominal ring dimensions identify the factory component rather than shipping dimensions. Correct fit also depends on the original groove and sealing surfaces. Do not substitute another ring based only on approximate diameter.
Common reasons to replace
- The original ring is cut or torn during removal.
- The ring has become flattened or permanently compressed.
- The seal has hardened or cracked.
- Leak diagnosis identifies the original guide-sleeve housing joint.
- The applicable factory service procedure calls for a new seal after disassembly.
Identify the actual leak source and inspect the guide sleeve, groove and housing surface. A new O-ring cannot repair a cracked component, damaged bore or worn rotating shaft seal. Keep clutch friction surfaces free of contamination during the repair.
Vehicle fitment
The rows require the stated quattro 6-speed manual gearbox and the original sealing position assigned N91029801. Observe the B6 VIN branch; automatic and Multitronic applications are excluded.
| Vehicle | Model years | Engine | Configuration | Application restrictions |
|---|---|---|---|---|
| Audi A4 | 2005 | 1.8L turbocharged gasoline inline-four | B6 sedan or Avant; quattro; VIN 8E-2-000001 through 8E-5-400000; 6-speed manual; PR G0L | Original manual gearbox guide-sleeve/housing sealing position assigned N91029801; 60.82×2.62. Excludes automatic, CVT and other gearbox assemblies. |
| Audi A4 | 2005 | 3.0L gasoline V6 | B6 sedan or Avant; quattro; VIN 8E-2-000001 through 8E-5-400000; 6-speed manual; PR G0L | Original manual gearbox guide-sleeve/housing sealing position assigned N91029801; 60.82×2.62. Excludes automatic, CVT and other gearbox assemblies. |
Installation guidance
Follow the factory gearbox and clutch guide-sleeve service procedure. Clean and inspect the groove and mating surface without scratching them. Use only the specified assembly lubricant where directed and fit the ring without twisting, stretching excessively or pinching it.
Install the guide sleeve and associated hardware using the prescribed procedure. Complete the required gearbox fluid-level, leak and clutch-operation checks after reassembly.
Ordering information
Supplied as one genuine O-ring. Guide sleeve, release bearing, rotating shaft seal, clutch, lubricant and other seals are not included. Confirm the installed gearbox, original number and required quantity.
