OVERVIEW
Genuine VW/Audi mounting bolt, part number N-910-639-01. This original fastener is assigned to specific engine bearing-cap and powertrain mount retainer-plate connections. The fitment table identifies the mounting role for each confirmed application. One bolt is supplied.
Technical details
- Original number: N-910-639-01 / N91063901.

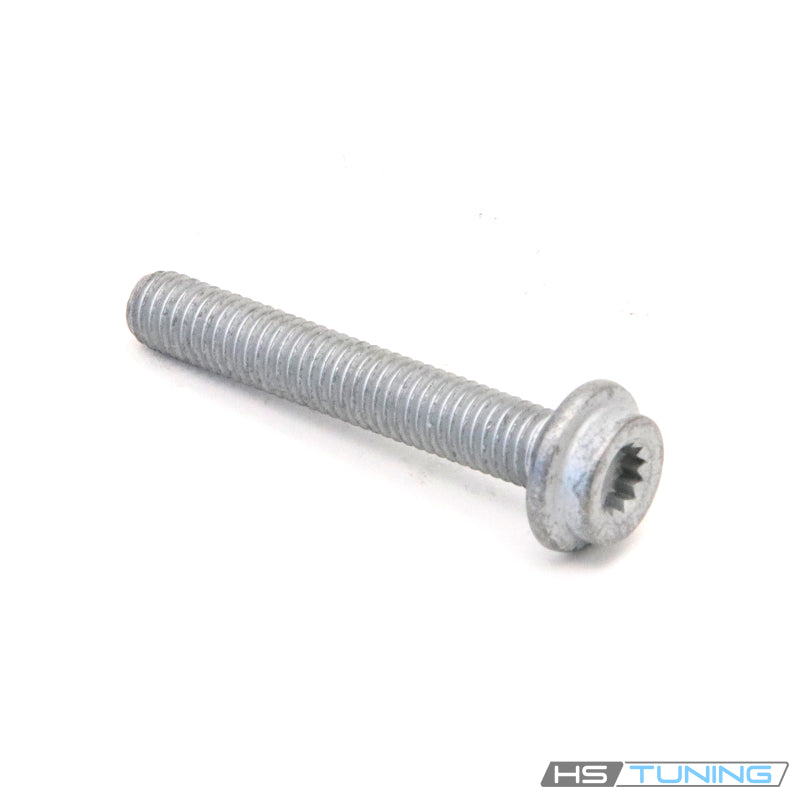

- Internal multipoint drive and attached washer arrangement, as shown in the original photograph.
- Use the original number and assembly diagram to identify the assigned mounting point.
- Bearing caps, mount plates, isolators and surrounding hardware are separate.
In the listed internal engine applications, the bearing-cap attachment retains the main bearing arrangement around the crankshaft. On the listed Audi mount applications, the bolt retains the designated powertrain support plate. These are separate connections with different access, assembly and tightening requirements. Do not transfer installation instructions between them.
The correct fastener length, thread engagement and bearing surface are essential to the prescribed connection. Other bolts beside the assigned position can have different specifications even when they use a similar drive. Match the removed original number and exact engine, transmission or plate arrangement.
Common reasons to replace
Replace missing hardware, damaged threads, a rounded drive recess, deformation or corrosion that prevents correct installation. Internal engine rebuilding and powertrain mount service can also require renewal of removed hardware under the applicable repair procedure. Follow the factory replacement requirement for the specific connection.
Noise, vibration or looseness requires diagnosis of the entire affected assembly. A new bolt does not restore worn engine bearings, damaged mating threads, a cracked retainer plate or a failed rubber or hydraulic mount. Repair the diagnosed component and obtain all required attachment hardware separately.
Installation and service notes
Identify the mounting role in the table and confirm it against the vehicle diagram before ordering. Internal bearing-cap work requires the prescribed engine assembly procedure, cap orientation, bearing inspection and clearance checks. Preserve the original cap identification and position.
For retainer-plate work, support the powertrain according to the repair procedure before disturbing the mount connection. Inspect the plate, mount and mating threads. Start the bolt by hand with the components aligned; do not use it to pull an unsupported or misaligned assembly into place.
Use the correct multipoint tool and the factory tightening sequence, thread preparation, torque and angle requirements for that exact mounting point. Do not use a generic torque based on the head size. Complete the specified checks after assembly. This listing supplies one fastener; adjacent bolts and service components remain separate.
Fitment
| Vehicle | Model years | Engine | Configuration | Application restrictions |
|---|---|---|---|---|
| Volkswagen GTI | 2008 | 2.0L turbo gasoline; verify engine and original bolt assignment by VIN | Base; four-door hatchback; Transmission does not establish engine main-bearing bolt fitment | Use only at the engine bearing-cap mounting position specifying N91063901. Match engine build and bolt location; model year alone does not identify every cylinder-block fastener. |
| Volkswagen Jetta | 2008 | 2.0L turbo gasoline; verify engine and original bolt assignment by VIN | GLI; sedan; Transmission does not establish engine main-bearing bolt fitment | Use only at the engine bearing-cap mounting position specifying N91063901. Match engine build and bolt location; model year alone does not identify every cylinder-block fastener. |
| Volkswagen Jetta | 2008 | 2.0L turbo gasoline; verify engine and original bolt assignment by VIN | Wolfsburg Edition; sedan; Transmission does not establish engine main-bearing bolt fitment | Use only at the engine bearing-cap mounting position specifying N91063901. Match engine build and bolt location; model year alone does not identify every cylinder-block fastener. |
| Volkswagen Passat | 2008 | 2.0L turbo gasoline; verify engine and original bolt assignment by VIN | Komfort or Lux; sedan; Transmission does not establish engine main-bearing bolt fitment | Use only at the engine bearing-cap mounting position specifying N91063901. Match engine build and bolt location; model year alone does not identify every cylinder-block fastener. |
| Volkswagen Passat | 2008 | 2.0L turbo gasoline; verify engine and original bolt assignment by VIN | Turbo; wagon; Transmission does not establish engine main-bearing bolt fitment | Use only at the engine bearing-cap mounting position specifying N91063901. Match engine build and bolt location; model year alone does not identify every cylinder-block fastener. |
| Volkswagen Passat | 2009–2010 | 2.0L turbo gasoline; verify engine and original bolt assignment by VIN | Komfort; wagon; Transmission does not establish engine main-bearing bolt fitment | Use only at the engine bearing-cap mounting position specifying N91063901. Match engine build and bolt location; model year alone does not identify every cylinder-block fastener. |
| Audi allroad Prestige | 2015 | 2.0L turbocharged gasoline/flex fuel | B8.5 wagon, quattro; 8-speed Tiptronic | Specified powertrain mount retainer plate screw N91063901. Match plate, transmission and assigned position; distinct from internal crankshaft bearing-cap use. |
| Audi S4 Premium Plus | 2015 | 3.0L supercharged V6 gasoline | B8.5 sedan, quattro; 6-speed manual | Specified powertrain mount retainer plate screw N91063901. Match plate, transmission and assigned position; distinct from internal crankshaft bearing-cap use. |
| Audi S5 Prestige | 2015 | 3.0L supercharged V6 gasoline | B8.5 coupe, quattro; 6-speed manual | Specified powertrain mount retainer plate screw N91063901. Match plate, transmission and assigned position; distinct from internal crankshaft bearing-cap use. |
Confirm the original part number, mounting role and vehicle equipment before ordering.
