Genuine VW/Audi

Coolant Pump Mounting Bolt

Coolant Pump Mounting Bolt

SKU:N-910-680-01

Regular price $1.28 USD
Regular price $1.28 USD Sale price $1.28 USD
Sale Sold out
Shipping calculated at checkout.
In stock
Quantity
View full details

OVERVIEW

The N-910-680-01 Genuine VW/Audi coolant pump mounting bolt fastens the pump housing at the matching mounting position. The correct fastener helps secure the housing against its mounting surface without substituting a bolt of the wrong length or head style. Keep the required replacement hardware ready when servicing the matching pump.

Technical details

  • OEM number: N-910-680-01 / N91068001.

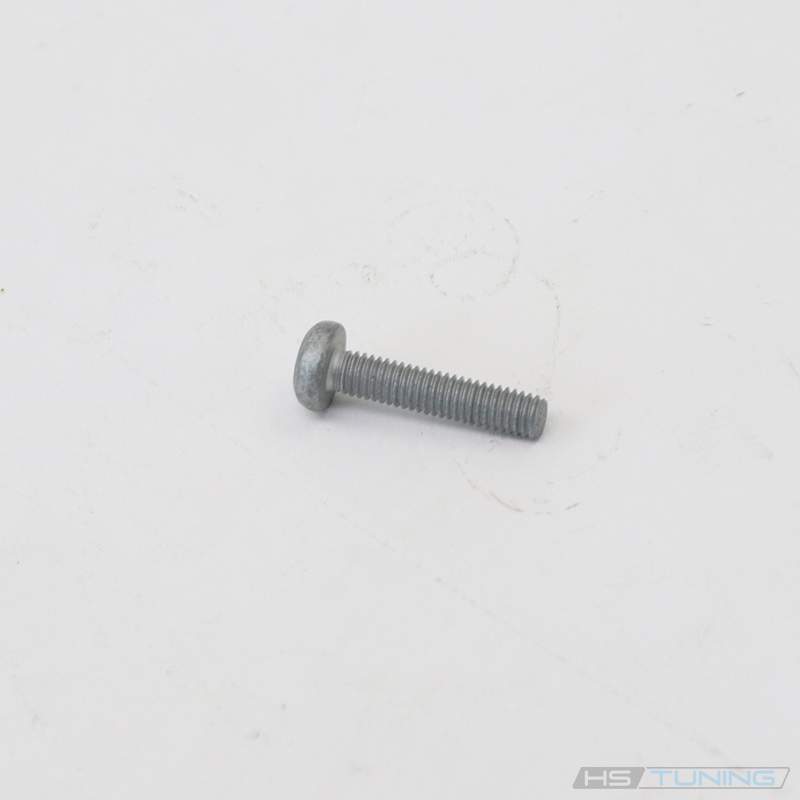

  • Catalog size: M6 x 28 mm.

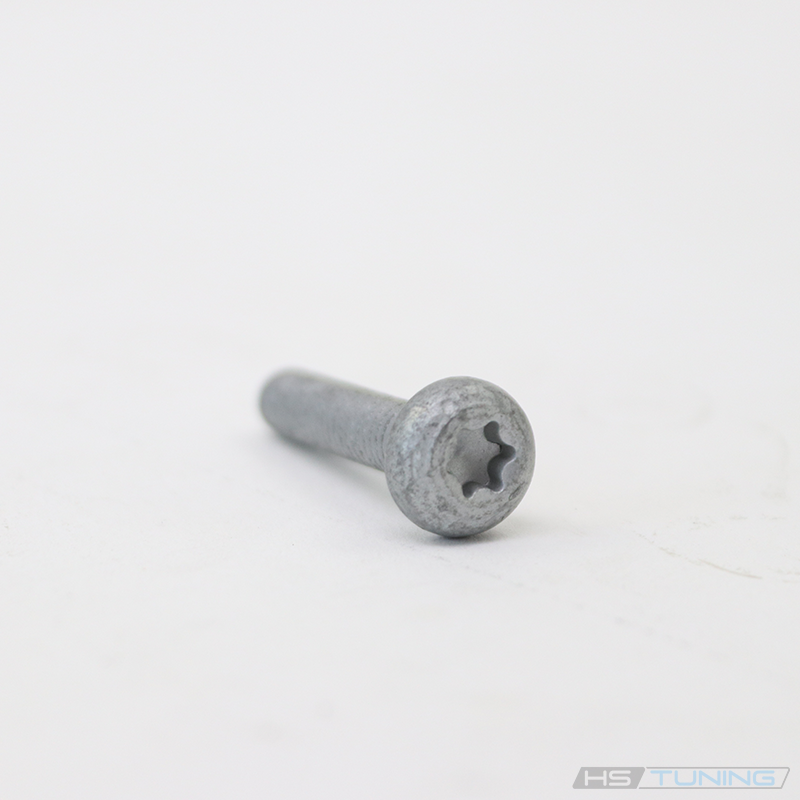

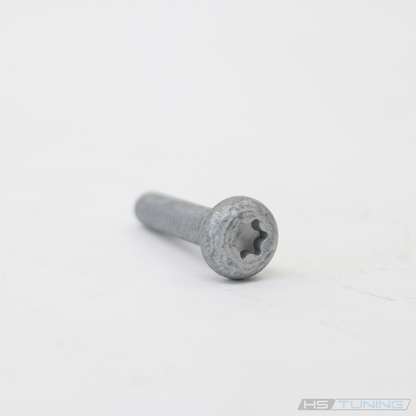

  • Head: low-profile head with an internal six-lobe drive, visible in the source photos.
  • Quantity: one bolt; pump, seals and other mounting hardware are separate.
  • Repair quantity: the documented coolant-pump repairs specify two new N-910-680-01 bolts and retain three longer mounting bolts.

Common reasons to replace

Use new bolts where the matching coolant-pump repair procedure specifies replacement. Also replace missing hardware or a fastener with damaged threads, a distorted head or a drive recess that no longer accepts the correct tool securely. Correct hardware avoids forcing a substitute into the pump housing or mounting threads.

A loose or damaged fastener calls for inspecting the housing, mating surface and receiving threads. Replacing a bolt alone will not correct a cracked housing, a damaged seal or stripped threads. Identify the exact mounting position before selecting hardware because the assembly uses different bolt lengths.

Service notes

Seat the pump correctly on its centering features and start the fasteners by hand. Follow the specified tightening order. Volkswagen’s matching GTI coolant-pump procedure specifies 9 Nm for the housing mounting bolts; verify the current procedure for the particular vehicle and assembly before applying that value.

Keep this housing mounting bolt separate from the coolant-pump drive-gear fastener. The drive-gear bolt has its own part number, thread direction and tightening procedure. Match the removed bolt and mounting position rather than using the pump name alone to choose hardware.

On the confirmed S4 application, this same M6 × 28 fastener secures the thermostat housing. Follow the S4 thermostat procedure for hardware quantity, tightening order and torque. The 9 Nm value and two-bolt replacement quantity described above belong to the matching GTI coolant-pump repair and must not be applied to the S4 thermostat connection.

Fitment

Vehicle Model years Engine Configuration Application restrictions
Volkswagen GTI 2011–2014 2.0L turbocharged gasoline inline-4 Hatchback; Manual / DSG; verify VIN-specific installation Coolant-pump mounting positions 3 and 4 in matching 19K5 repair; not the drive-gear bolt.
Audi A3 2010–2013 2.0L TFSI turbocharged gasoline inline-4 8P hatchback; gasoline engine only; Verify VIN-specific installation Coolant-pump mounting positions shown in matching 19L2 repair; not the drive-gear bolt. Verify pump and VIN.
Audi S4 2013–2016 3.0L supercharged TFSI gasoline V6 B8.5 sedan; quattro; thermostat housing attachment; Seven-speed S tronic dual-clutch Thermostat housing fastener where N91068001 is assigned. This is a different attachment from the GTI/A3 pump connection; do not transfer its torque or repair quantity.

Verify the VIN and installed part before ordering. The table covers confirmed applications; other engines and model variants require separate verification. Trim names apply only in the years they were offered.
