OVERVIEW
Genuine threaded stud for the assigned body attachment

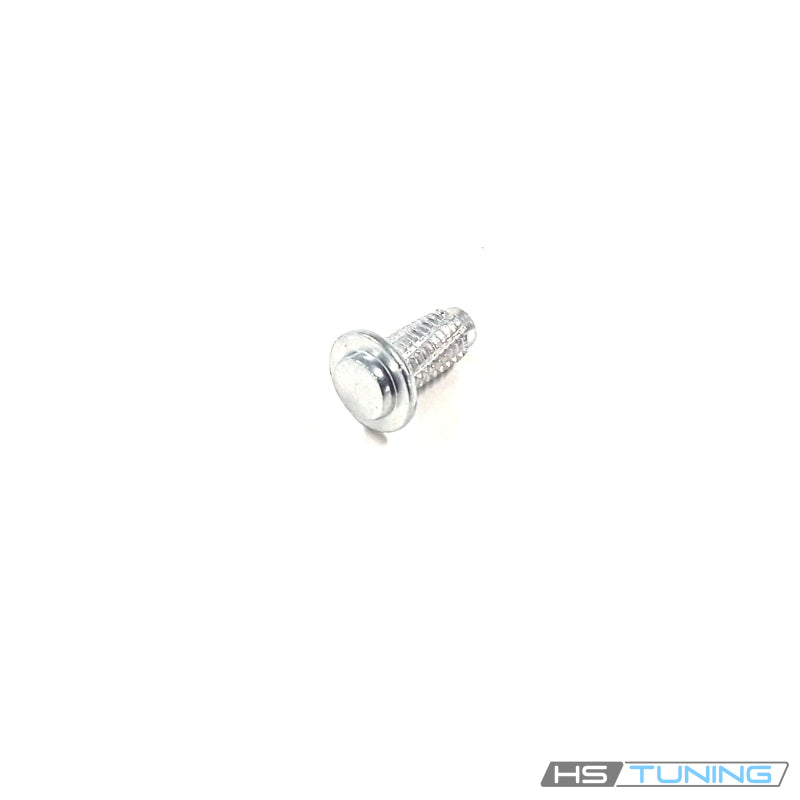

N-910-698-02 is the Genuine VW/Audi threaded stud specified at the original body-frame attachment on the Golf configurations below. The factory identifies it as M8×22.
The body assembly uses several studs and weld fasteners with different dimensions and retaining arrangements. Match the complete number, receiving area and original installation position when restoring an attachment.
Technical details
- Complete factory number: N-910-698-02.
- Factory specification: M8 × 22.
- Design: body attachment threaded stud.
- Quantity supplied: one individual stud.
The factory M8×22 designation identifies this particular component. It does not establish interchangeability with a generic M8 bolt or a longer body stud. Preserve the original projection and attachment arrangement.
Common reasons to replace
- The original stud is missing after body repair.
- The receiving thread is damaged.
- The stud is bent or its retaining base is damaged.
- The original attachment has been removed during an approved repair.
- Incorrect hardware was fitted during earlier work.
Inspect the surrounding body structure and original mounting area before selecting a repair method. A replacement stud cannot correct distorted or damaged supporting metal. Identify the exact factory-assigned position before disturbing an intact attachment.
Vehicle fitment
Use at the original M8×22 body attachment assigned N91069802 on the hatchback configurations shown. Other studs in the same body group have separate factory numbers.
| Vehicle | Model years | Engine | Configuration | Application restrictions |
|---|---|---|---|---|
| Volkswagen Golf | 2015 | 1.8L turbocharged gasoline I4 | Mk7 hatchback; PR K8G; Original body-frame stud position | Only original body attachment assigned N91069802 M8×22. Confirm the actual stud position and factory repair method. |
| Volkswagen Golf | 2015 | 2.0L TDI diesel I4 | Mk7 hatchback; PR K8G; Original body-frame stud position | Only original body attachment assigned N91069802 M8×22. Confirm the actual stud position and factory repair method. |
Installation guidance
Follow the model-specific factory body repair instructions, including the required attachment process, positioning tools and surface preparation. Restore the original mounting geometry and protective finish as directed. Do not treat the stud as a conventional screw-in replacement without confirming the repair procedure.
Check the finished attachment, correct projection and mating-component alignment. Restore the specified corrosion protection and surrounding trim or hardware according to the repair procedure.
Ordering information
Supplied as one genuine stud. Body panels, nuts, sealants, installation tools and other hardware are not included. Confirm the original number, repair location and quantity needed.
