OVERVIEW
Genuine hood-hinge and alarm-bracket attachment hardware

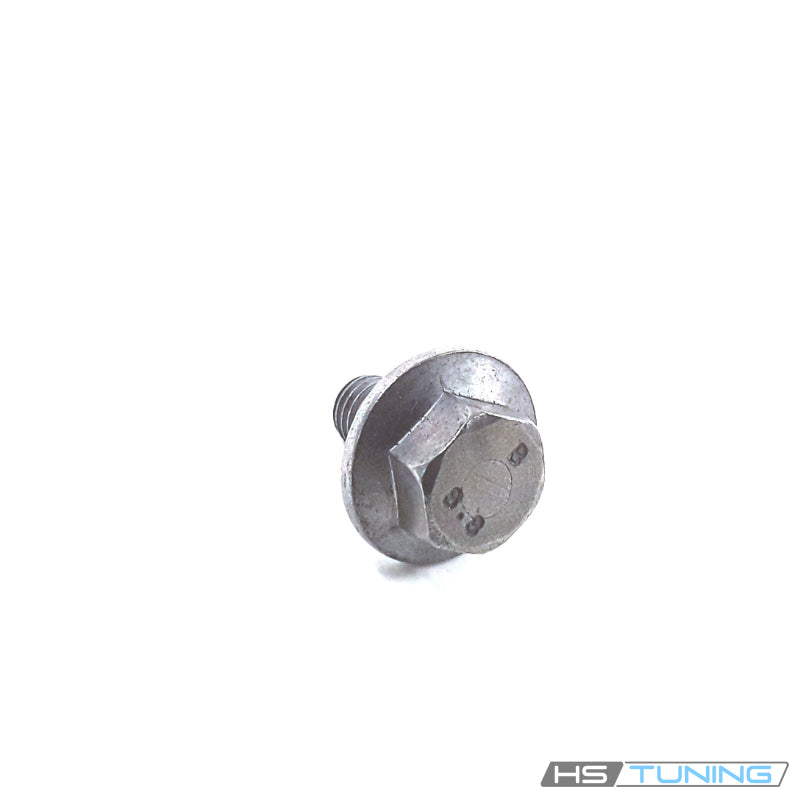

The N-910-793-01 Genuine VW/Audi hex collared bolt secures the assigned hood-hinge or anti-theft alarm bracket connection shown in the fitment table. The external hex head and integrated collar provide the original wrenching and seating arrangement for the specified joint.
These are separate applications of the same factory number. Match the bolt to its original mounting point; the hood assembly and alarm bracket also use other fasteners that are not interchangeable with this M8 × 16 bolt.
Technical details
- Complete factory number: N-910-793-01.
- Nominal factory specification: M8 × 16.
- Design: external-hex bolt with an integrated collar at the bearing surface.
- Quantity supplied: one individual bolt.
The nominal specification describes the fastener itself rather than packaged shipping dimensions. Match the complete factory number, original attachment point and head seating arrangement. Similar-looking hardware elsewhere in the same assembly can differ in length, thread size or bearing surface.
Common reasons to replace
- A bolt is missing after component removal or previous service.
- The drive head is damaged or rounded.
- The threads have been crossed, stripped or otherwise damaged.
- The bolt is bent or its bearing surface no longer seats correctly.
- A previous repair used incorrect substitute hardware.
Inspect the mating threads, hinge or bracket and bearing surface. Damaged threads, a bent hinge or a distorted bracket require correction beyond a replacement bolt. Alarm faults require electrical diagnosis; this fastener does not replace an alarm module or security shear bolt.
Vehicle fitment
The Tiguan row identifies hood-hinge hardware for the listed model years. The CC rows identify the original PR 7AG alarm-bracket connection. Match the application as well as the vehicle.
| Vehicle | Model years | Engine | Configuration | Application restrictions |
|---|---|---|---|---|
| Volkswagen Tiguan | 2010, 2012 | 2.0L TSI turbocharged gasoline inline-four | First-generation SUV; front-wheel drive or 4Motion; Original hood-hinge arrangement | Assigned M8×16 hood-hinge fastener only. Hood and hinges are not included. Do not substitute the separate M6 or longer M8 bolt. |
| Volkswagen CC | 2009–2011 | 2.0L TSI turbocharged gasoline inline-four; front-wheel drive | Sedan; original anti-theft alarm; PR 7AG; Factory alarm bracket attachment | PR 7AG electronic alarm equipment only; original alarm mounting bracket connection assigned N91079301 M8×16. Not a replacement for the separate security shear bolts. |
| Volkswagen CC | 2009–2011 | 3.6L FSI gasoline VR6; front-wheel drive or 4Motion | Sedan; original anti-theft alarm; PR 7AG; Factory alarm bracket attachment | PR 7AG electronic alarm equipment only; original alarm mounting bracket connection assigned N91079301 M8×16. Not a replacement for the separate security shear bolts. |
Installation guidance
Follow the factory procedure for the exact joint. For hood-hinge work, support the hood and preserve the required alignment before loosening fasteners. For alarm-bracket service, follow the applicable electrical access and mounting instructions.
Align the mating components before engaging the bolt, start the threads carefully and use the correct tool for the actual drive. Follow the factory tightening instruction and sequence for the exact connection. Do not transfer torque values between different applications that happen to use the same bolt number.
Verify hinge alignment, panel clearance and normal hood latching after hood service. For alarm-bracket work, check that the bracket is secure and wiring is routed correctly. Use the tightening instruction for the actual attachment.
Ordering information
Supplied as one genuine bolt. Hood, hinge, alarm bracket, alarm electronics, shear bolts and a complete hardware kit are not included. Confirm the required repair quantity.
