OVERVIEW
Genuine VW/Audi Multi-Purpose Flanged Bolt
N-910-799-01 is an original M6 x 20 mm bolt used at specific interior, body and electrical mounting points. Confirmed examples include a console armrest mount, a sunroof frame, telephone antenna hardware and an instrument panel bracket. These are distinct applications of the same OEM fastener; the correct location must be identified in the vehicle's component diagram.
Technical details
- Part number: N-910-799-01 / N91079901.
- Nominal size: M6 x 20 mm.

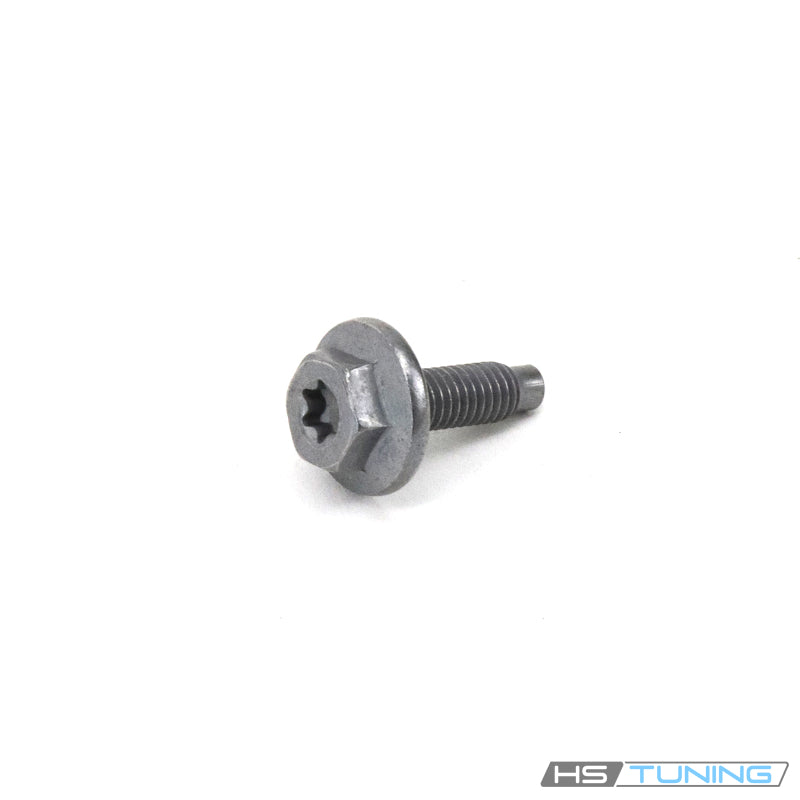

- Head configuration: External hex head with an integral collar and an internal drive recess visible in the original product photograph.
- Function: Clamps the designated component or bracket to its mounting point. The collar provides a bearing surface beneath the head.
- Quantity: One individual bolt; retained components and other hardware are supplied separately.
Common reasons to replace
Replace a missing bolt when reinstalling a serviced console, bracket or other assigned component. Rounded drive surfaces, damaged threads, corrosion or a bent shank can interfere with correct engagement and tightening. Inspect a loose joint before fitting new hardware: a cracked mounting tab, distorted bracket or stripped threaded receiver can prevent secure retention even with a new bolt. A bolt replacement addresses the fastener itself and should not be presented as a repair for an electrical fault or damaged component.
Installation and service notes
Compare the original bolt with the part number specified for the exact joint. Align the component and start the bolt by hand to reduce the risk of cross-threading. Seat the appropriate drive tool fully and follow the vehicle repair procedure for that mounting point. Torque, renewal instructions and preparation requirements vary between applications; no universal torque value or thread-locking requirement is implied. For restraint-system bracket work, follow the manufacturer's isolation, handling and reassembly procedure. This listing supplies ordinary fastening hardware only.
Vehicle fitment
Each row identifies a confirmed mounting application. Engine and model information help select the vehicle, while the retained component and original bolt position establish the actual fit. Equipment differences can change the applicable hardware.
| Vehicle | Model years | Engine | Configuration | Application restrictions |
|---|---|---|---|---|
| Audi Q3 | 2021 | 2.0L turbo gasoline | S-Line Premium; Match the original mounting diagram and equipment | Console armrest mount assembly; only bolt positions specifying N91079901. |
| Audi Q3 | 2021 | 2.0L turbo gasoline | Original telephone antenna equipment; Match the original mounting diagram and equipment | Telephone antenna fastening positions only; match installed antenna and diagram. |
| Audi A6 | 2015 | 2.0L turbo gasoline | C7; Premium Plus; sedan; Match the original mounting diagram and equipment | Sunroof frame bolt positions specifying N91079901; sunroof equipment must match. |
| Volkswagen Tiguan | 2015 | 2.0L turbo gasoline | S / SE / SEL / R-Line; original instrument panel bracket; Match the original mounting diagram and equipment | Instrument panel air bag bracket bolt positions specifying N91079901. Hardware only; no air bag included. |
Verify the original N91079901 location, equipment and vehicle diagram by VIN before ordering.
