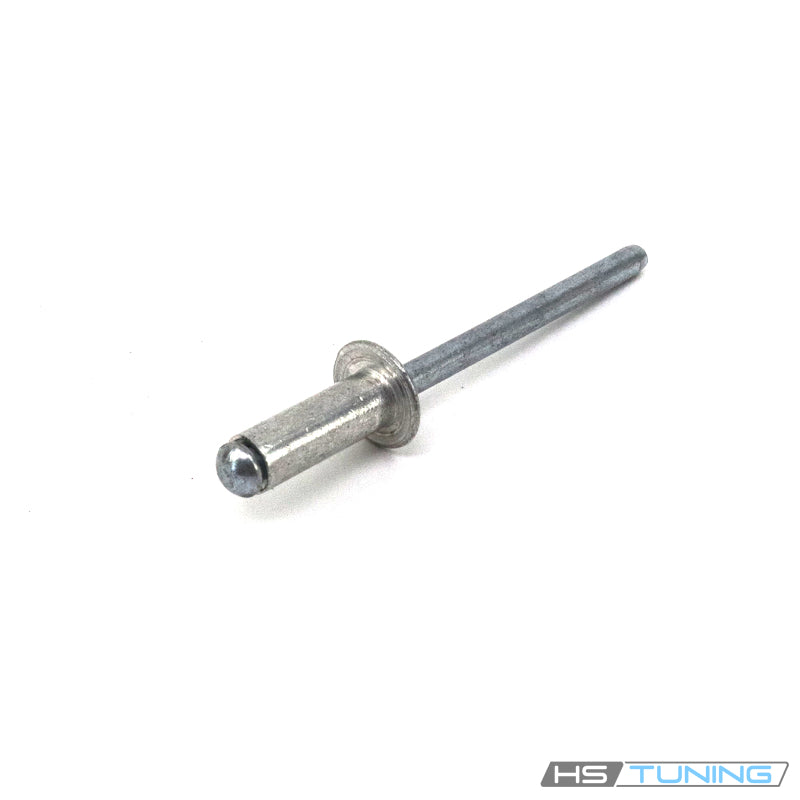

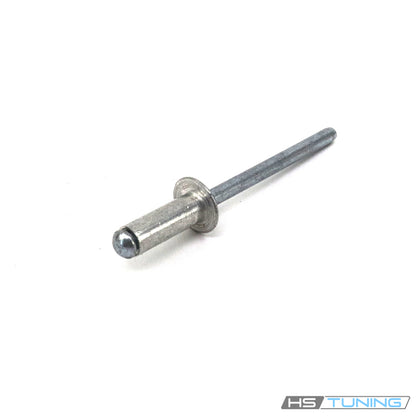

N-910-939-01 Genuine VW/Audi Blind Rivet - 6 x 16

Genuine VW/Audi blind rivet, part number N-910-939-01. This original 6 x 16 rivet secures components at its assigned attachment in the horn mounting arrangement on the configuration below. One unset rivet is supplied.

Technical details

• Original number: N-910-939-01 / N91093901.
• Published nominal size: 6 x 16 mm.
• Blind-rivet body with an integral setting mandrel.
• Listed application: specified horn mounting hardware position.
• Horn, mounting bracket, rivet-setting tool and other hardware are separate.

The rivet forms a permanent mechanical attachment when set using the prescribed tool. The body and mandrel work together to secure the assembled components. This is not a reusable screw or push-in trim clip.

Match the original number and attachment before ordering. Nominal size alone does not establish the correct material stack, setting method or suitability for another bracket. The same number can have other factory applications, but each mounting position must be checked separately.

Common reasons to replace

Install a new rivet when the original is removed to release the prescribed attachment during horn or bracket service. A drilled-out or otherwise removed blind rivet cannot be reset for reuse.

Replace a missing, loose or damaged rivet and inspect the surrounding bracket and mounting holes. Previous repair work can leave an unsuitable substitute or a fastener that was not fully set.

A loose horn or bracket can require repair of the complete mounting arrangement. A new rivet cannot restore an enlarged hole, cracked bracket, distorted mounting surface or damaged horn housing. Correct the diagnosed component defect before setting replacement hardware.

An inoperative or weak-sounding horn requires electrical and component diagnosis. Replacing mounting hardware does not repair an electrical supply fault, wiring damage or an internally failed horn.

Installation and service notes

Follow the factory procedure for the exact horn and bracket arrangement. Identify the specified rivet location before removal and protect adjacent wiring and components during the required access work.

Use the approved removal method to avoid enlarging the mounting holes or damaging the bracket. Remove loose fragments and inspect the contact surfaces and attachment holes before assembly.

Align the components correctly and fit the new original rivet at its assigned position. Use the specified setting tool and suitable nosepiece, keeping the rivet seated as required during setting.

Do not substitute a different length solely because the body enters the hole, and do not use the rivet to draw a distorted bracket into position. The surrounding parts must have their prescribed alignment before setting the connection.

Inspect the set head and completed attachment according to the repair procedure. If the rivet does not set normally, inspect tool selection, hardware and component seating before continuing.

Confirm secure horn and bracket mounting and the required clearance from neighboring components. Complete the prescribed electrical and horn-operation checks after reassembly. This listing supplies one original rivet; select the bracket, horn and remaining service parts separately.

Fitment

Confirm original N91093901 at the assigned horn mounting position. One rivet supplied.
