OVERVIEW

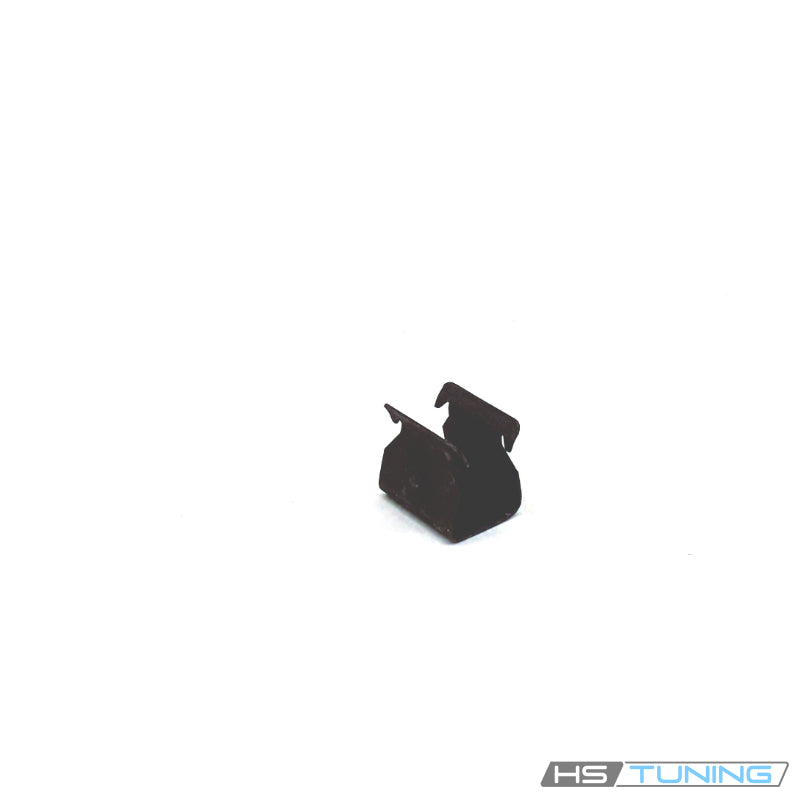

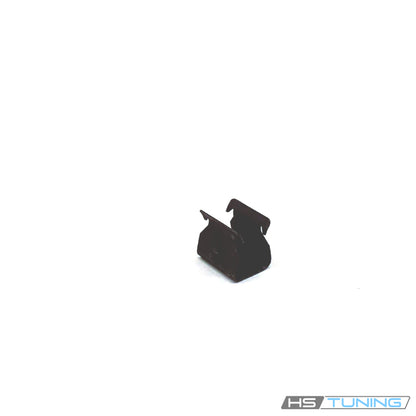

Genuine cooling-fan assembly retaining clip
The N-911-007-01 Genuine VW/Audi clip provides the assigned retention point in the original fan-housing and air-guide assembly on the Jetta configurations listed below.
This is a separate retaining clip rather than a fan motor, complete shroud or electrical connector. The cooling module uses several different fasteners. Match the original clip number, receiving feature and attachment position before ordering.
Technical details
- Complete factory number: N-911-007-01.
- Factory specification: 15 × 14.2 × 9.
- Design: formed retaining clip for the original fan-housing/air-guide assembly.
- Quantity supplied: one individual clip.
The nominal catalog specification identifies the clip itself rather than packaged shipping dimensions. Correct engagement depends on the original receiving point. Do not substitute a screw, cable tie or clip of a different profile simply because it fits near the same fan housing.
Common reasons to replace
- The original clip is missing after cooling-module service.
- The retaining tabs have bent or broken.
- The clip no longer engages securely in its original position.
- The clip is distorted after removal.
- A previous repair used substitute hardware that does not retain the component correctly.
Inspect the housing, receiving tabs and adjoining brackets before fitting a replacement. A new clip cannot restore a cracked shroud or broken mounting feature. Fan operation faults require separate diagnosis of the motor, wiring and control system.
Vehicle fitment
The rows require the original factory fan-housing/air-guide connection assigned this clip. Confirm the actual receiving point and observe the stated 2014 catalog VIN branch.
| Vehicle | Model years | Engine | Configuration | Application restrictions |
|---|---|---|---|---|
| Volkswagen Jetta | 2015 | 2.0L gasoline inline-four | Mk6 sedan; front-wheel drive; Original factory fan housing/air-guide arrangement | Assigned N91100701 clip in original twin-fan housing/air-guide assembly; nominal 15×14.2×9. Match original clip position and receiving feature. |
| Volkswagen Jetta | 2015 | 1.8L TSI turbocharged gasoline inline-four | Mk6 sedan; front-wheel drive; Original factory fan housing/air-guide arrangement | Assigned N91100701 clip in original twin-fan housing/air-guide assembly; nominal 15×14.2×9. Match original clip position and receiving feature. |
| Volkswagen Jetta | 2015 | 2.0L TDI diesel inline-four | Mk6 sedan; front-wheel drive; Original factory fan housing/air-guide arrangement | Assigned N91100701 clip in original twin-fan housing/air-guide assembly; nominal 15×14.2×9. Match original clip position and receiving feature. |
| Volkswagen Jetta | 2014 | 2.0L TDI diesel inline-four | Mk6 sedan; front-wheel drive; VIN from 16-E-000001; Original factory fan housing/air-guide arrangement | Catalog VIN branch from 16-E-000001; original fan-housing attachment assigned N91100701. Different air guides elsewhere in the table have their own market restrictions. |
Installation guidance
Follow the factory cooling-fan module access procedure, including the prescribed electrical isolation steps before working near a fan. Protect wiring and nearby cooling components. Align the clip with its original receiving feature and engage it using the specified method without bending the housing.
Confirm that the clip locks into position and the retained component is secure. Check clearance from the fan blades and restore all wiring, connectors and other retainers disturbed during service. Complete the prescribed cooling-fan functional checks.
Ordering information
Supplied as one genuine clip. Fan motor, shroud, air guide, bracket, wiring and a complete hardware kit are not included. Confirm the quantity required for the original attachment.
