OVERVIEW
Factory hex flange hardware for the original electric-drive assembly

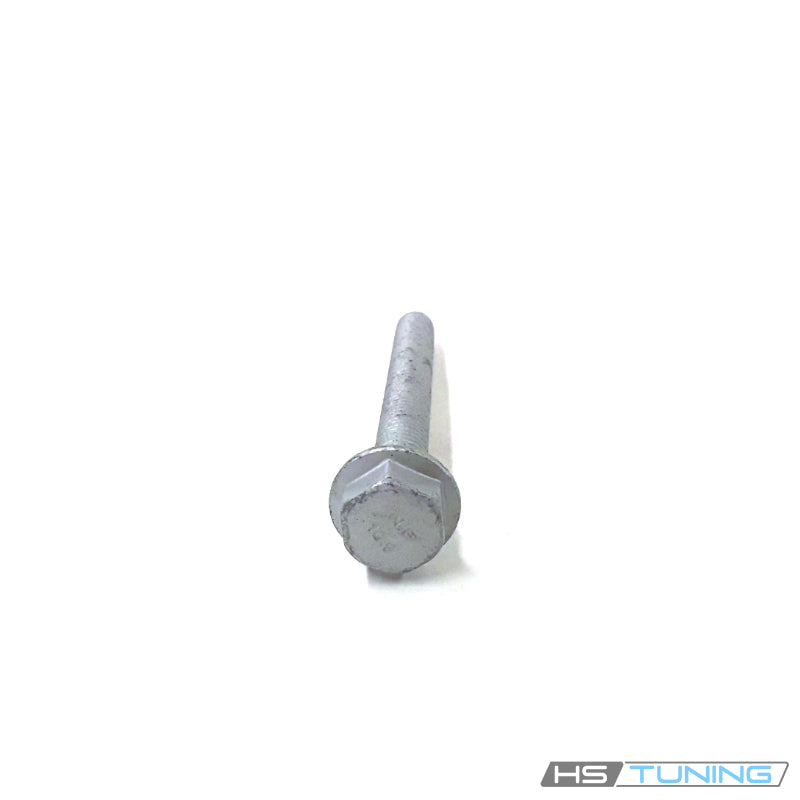

N-911-056-01 is a Genuine VW/Audi M10 x 85 hex-head flange bolt used at the specified original electric-drive assembly attachment on the confirmed Touareg Hybrid application below.
The integral flange provides the original head contact area. Correct length, head geometry and fastening location matter when assembling hybrid drivetrain components; a generic bolt of the same nominal diameter does not establish interchangeability.
Technical details
- Complete factory number: N-911-056-01.
- Factory specification: M10 x 85 mm hex-head bolt with integral flange.
- Design: External six-sided head with broad collar and threaded shank.
- Quantity supplied: one individual bolt; hybrid drive unit, inverter, brackets and other mounting hardware are not included.
The M10 x 85 designation gives nominal diameter and fastener length. No unverified thread pitch, strength class, torque value, shipping dimensions or weight are assigned.
Common reasons to replace
- Rounded head flats that prevent secure tool engagement.
- Damaged threads, a bent shank or an impaired flange seating surface.
- Missing hardware or an incorrect substitute found during assembly service.
A hybrid-system warning does not identify a failed bolt. Diagnose the affected system and inspect the original attachment, receiving threads and supported component before choosing repair hardware.
Vehicle fitment
Match the hybrid drivetrain and original fastening point below. This is individual mechanical hardware, with compatibility established by its complete factory number.
| Vehicle | Model years | Engine | Configuration | Application restrictions |
|---|---|---|---|---|
| Volkswagen Touareg Hybrid | 2011 | 3.0L supercharged gasoline-electric hybrid | 7P SUV, 4Motion; 8-speed automatic hybrid drivetrain | Original electric-drive assembly fastening point specifying N-911-056-01. Confirm the exact joint; adjacent inverter production-date limits do not restrict this bolt entry. Not a battery or electrical component. |
Installation guidance
Service the hybrid drivetrain under the applicable factory procedure, including required electrical isolation and component support. Preserve the original spacer and hardware order and start the correct fastener by hand.
Use the specified tightening method for the exact joint and complete all required attachment and operational checks before returning the vehicle to service.
Ordering information
New and unused inventory. Sold individually as N-911-056-01. Confirm the full original number and required quantity before ordering.
