OVERVIEW
Specified fastener for the engine oil level sensor
N-911-279-02 is the Genuine VW/Audi M6x25 bolt cataloged for the engine oil level sensor mounting positions below. Correct hardware helps secure the sensor flange evenly at its assigned engine location.
Fasteners with a similar diameter can have different lengths, head forms and clamping requirements. Match the original factory number and assigned joint rather than choosing a bolt by appearance alone.
Technical details
- Complete factory number: N-911-279-02.
- Factory specification: M6 × 25 oil level sensor fastening bolt.

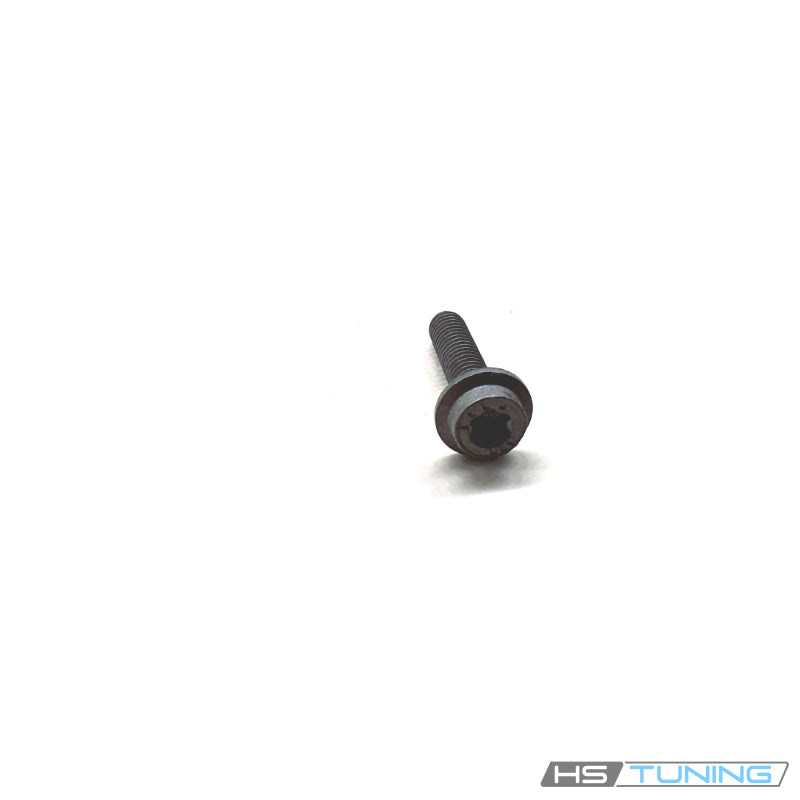

- Design: recessed drive head with collar and threaded shank.
- Quantity supplied: one individual bolt.
The nominal thread and length describe the fastener itself. This listing supplies one bolt rather than the full quantity required for an assembly. Matching nuts, washers, brackets and related parts are separate.
Common reasons to replace
- The original bolt is missing after component service.
- Threads are damaged or will not engage correctly.
- The drive head is rounded or otherwise damaged.
- Corrosion or deformation makes the original fastener unsuitable for reuse.
Inspect the sensor flange, sealing surface and mating threads. This listing supplies hardware only: a sensor fault or leak may require separate sensor, seal or mounting-surface repair.
Vehicle fitment
Use only at the assigned factory fastening position on the listed applications. These vehicle entries do not establish compatibility with every fastening point on the vehicle.
| Vehicle | Model years | Engine | Configuration | Application restrictions |
|---|---|---|---|---|
| Audi S5 Sportback | 2018–2020 | 3.0L turbo gasoline V6 | B9 Sportback; quattro | Oil level sensor bolt; production through December 7, 2020; original assigned M6x25 position. |
| Audi S5 | 2018–2020 | 3.0L turbo gasoline V6 | B9 coupe or cabriolet; quattro | Oil level sensor attachment; production through December 7, 2020; confirm original hardware. |
| Audi RS5 | 2018 | 2.9L twin-turbo gasoline V6 | B9 coupe; quattro | Original assigned oil level sensor bolt only. |
| Audi RS5 Sportback | 2019, 2021 | 2.9L twin-turbo gasoline V6 | B9 Sportback; quattro | Oil level sensor mounting; production through December 7, 2020. Later production uses different hardware. |
Installation guidance
Follow the engine-specific oil level sensor service procedure. Drain or control the engine oil as directed, renew designated seals and tighten the sensor hardware in the specified sequence and torque. Do not overtighten the sensor flange.
Restore the correct oil level if disturbed, inspect for leaks and verify the oil level sensor operation according to the repair procedure.
Ordering information
One individual genuine bolt. Related nuts, washers, brackets and other assembly components are separate. Confirm VIN and original hardware number.
