OVERVIEW
Genuine VW/Audi Underbody and Splash Shield Bolt
N-911-407-01 is an original combination bolt used at assigned underbody trim and splash shield mounting positions. Confirmed applications include Audi e-tron underbody trim and selected A6 / S6 radiator support deflectors. It retains the specified cover or shield at its intended mounting point; it is not a universal replacement for every undertray screw or impact guard bolt.
Technical details
- OEM number: N-911-407-01 / N91140701.

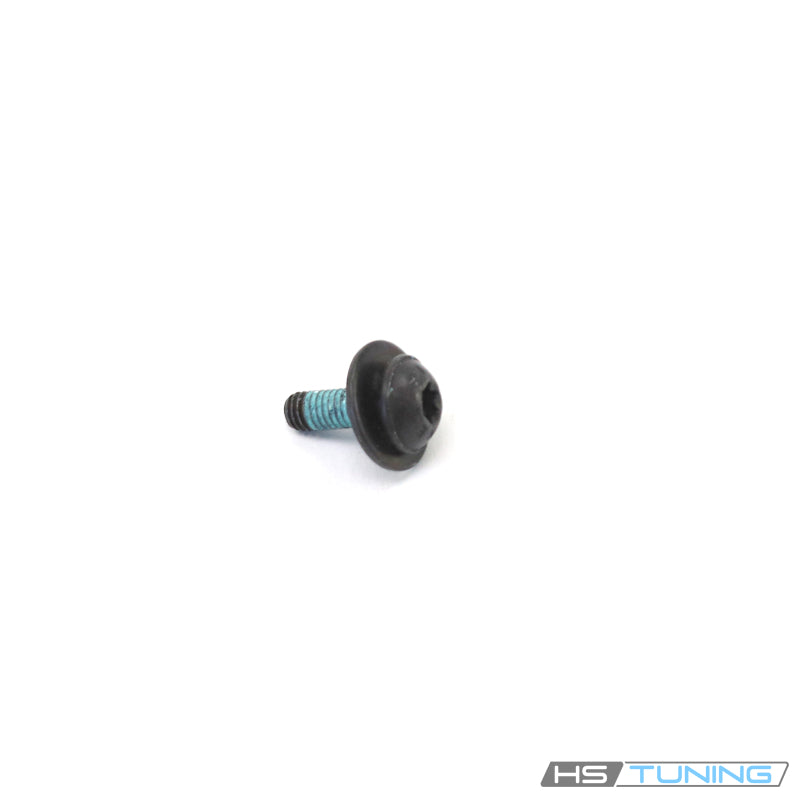

- Configuration: Combination head bolt with a washer beneath the head, visible in the original product photo.
- Drive: Internal Torx recess, as identified by the genuine parts supplier.
- Function: Secures an assigned body cover, deflector or shield to its mating mounting point. Correct hardware helps keep the cover seated and reduces movement at the fastened joint.
- Supply: One bolt. Shields, guide pins, clips and other retaining hardware are separate items.
Common reasons to replace
Renew missing hardware after removing an underbody panel for service. Replace a bolt with a rounded drive recess, damaged threads, corrosion, a bent shank or a damaged washer where required by the repair procedure. Inspect loose or noisy shields for cracked mounting ears, missing clips and damaged receiving threads. A new bolt cannot restore a broken shield attachment or stripped receiver, so those defects should be repaired before reassembly.
Installation and service notes
Match the fastening diagram and original part reference, align the shield and start the bolt by hand. Confirm that the washer seats against the intended mounting surface and that adjacent guide pins and retainers are installed correctly. Use the vehicle's tightening procedure for underbody trim; an impact guard or structural subframe bolt can require a different specification. Follow the renewal and thread preparation instructions for the assigned joint rather than adding a generic torque value or an unspecified locking compound. Work near electric-drive components must follow the manufacturer's applicable isolation and handling procedures.
Vehicle fitment
The confirmed locations below are component-specific. Model years from an Audi service procedure identify supported applications and do not mean every vehicle has an open service campaign. Check the VIN, installed shield and original fastening diagram when selecting hardware.
| Vehicle | Model years | Engine | Configuration | Application restrictions |
|---|---|---|---|---|
| Audi e-tron | 2019–2022 | Battery electric | quattro; GE SUV; Confirm installed body equipment and fastening diagram | Underbody trim positions listed in Audi service procedure 93V2; verify original fastener and VIN applicability. |
| Audi e-tron Sportback | 2020–2022 | Battery electric | quattro; GE Sportback; Confirm installed body equipment and fastening diagram | Underbody trim positions listed in Audi service procedure 93V2; verify original fastener and VIN applicability. |
| Audi A6 | 2016 | 2.0L turbo gasoline | C7; Premium / Premium Plus; Confirm installed body equipment and fastening diagram | Radiator support front splash deflector bolt positions; diagram notes applications from 10/22/2012. |
| Audi A6 | 2016 | 3.0L supercharged gasoline V6 | C7; Prestige; quattro; Confirm installed body equipment and fastening diagram | Radiator support front splash deflector bolt positions; confirm N91140701 in the original diagram. |
| Audi A6 | 2016 | 3.0L TDI diesel V6 | C7; TDI Prestige; quattro; Confirm installed body equipment and fastening diagram | Radiator support front splash deflector bolt positions; confirm N91140701 in the original diagram. |
| Audi S6 | 2016 | 4.0L twin-turbo gasoline V8 | C7; Prestige; quattro; Confirm installed body equipment and fastening diagram | Radiator support splash shield bolt positions specifying N91140701 only. |
| Audi S6 | 2015 | 4.0L twin-turbo gasoline V8 | C7; Base; quattro; Confirm installed body equipment and fastening diagram | Front lower bumper plate fastener position 13 specifying N91140701 only. |
Confirm N91140701 at the original cover or shield bolt position before ordering.
