OVERVIEW
Original upper steering-column mounting hardware

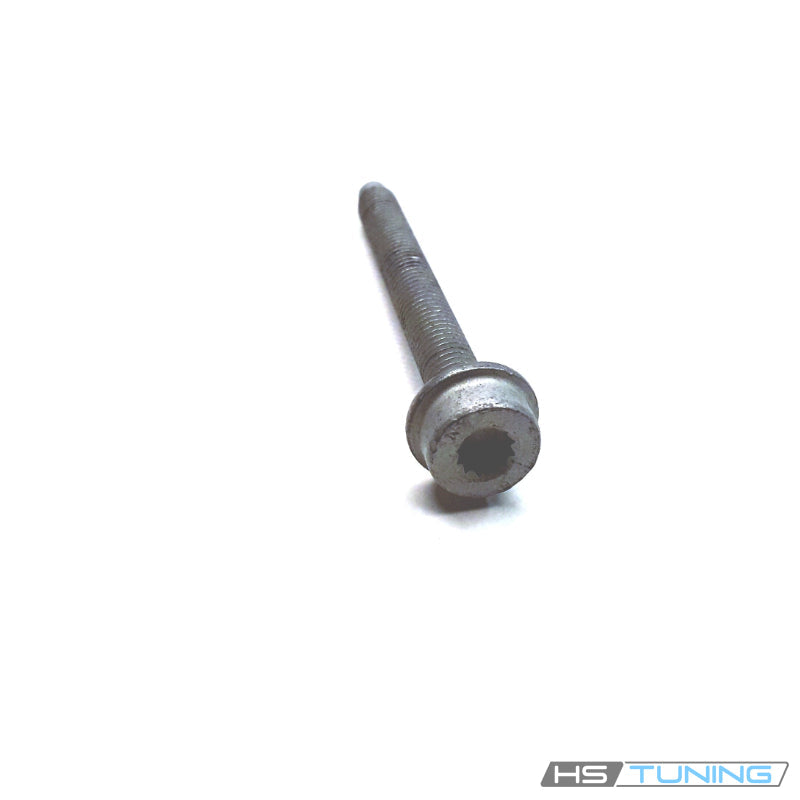

N-911-542-01 is the Genuine VW/Audi M8 x 75 bolt assigned to the specified upper steering-column mounting point. The long shank and head bearing arrangement match the original support joint rather than a general body attachment.
The upper mounting bolt, lower column bolt and intermediate-shaft fastening bolt are separate parts. Select the complete factory number for the actual joint being serviced, even when several bolts appear together in a steering-column diagram.
Technical details
- Complete factory number: N-911-542-01.
- Factory specification: M8 x 75 mm steering-column upper mounting bolt.
- Design: Long shank, recessed drive and head bearing flange for the assigned column support.
- Quantity supplied: one individual bolt.
M8 x 75 is the confirmed nominal size. Correct full part number, drive engagement and mounting position are required; a general-purpose M8 fastener is not selected by length alone.
Common reasons to replace
- A damaged drive recess that prevents controlled tightening or removal.
- Damaged threads, a bent shank or an impaired head seating surface.
- Missing original mounting hardware or an incorrect substitute found during column service.
Column looseness, vibration or noise can arise from a worn bracket, damaged support or adjustment mechanism fault. Inspect the complete mounting assembly and receiving threads before replacing hardware.
Vehicle fitment
The entries below identify confirmed upper-column mounting applications. Confirm the original complete bolt number and VIN-specific column arrangement.
| Vehicle | Model years | Engine | Configuration | Application restrictions |
|---|---|---|---|---|
| Audi A4 | 2010 | 2.0L turbocharged gasoline | B8 sedan, FWD; CVT automatic | Original steering-column upper mounting position specifying N-911-542-01. Confirm complete bolt number and column mounting arrangement by VIN. |
| Audi A4 | 2013–2014 | 2.0L turbocharged gasoline | B8.5 sedan, quattro; 6-speed manual or 8-speed automatic | Original steering-column upper mounting position specifying N-911-542-01. Match the original bolt revision and mounting arrangement; lower and intermediate-shaft bolts differ. |
| Audi A4 | 2014 | 2.0L turbocharged gasoline | B8.5 sedan, FWD; CVT automatic | Specified original upper steering-column mounting position requiring N-911-542-01. Confirm factory bolt revision by VIN. |
| Audi S4 | 2014 | 3.0L supercharged V6 gasoline | B8.5 sedan, quattro; 6-speed manual or 7-speed S tronic | Original steering-column upper mounting position specifying N-911-542-01. Match the complete number and original column support arrangement. |
Installation guidance
Support the steering column and follow the factory procedure for the exact vehicle. Observe the required electrical isolation and restraint-system precautions before working around the column.
Use the correct drive tool and specified tightening sequence. Replace other single-use fasteners where instructed, then verify column attachment security, adjustment and steering operation.
Ordering information
New and unused inventory. Sold individually as N-911-542-01. Confirm VIN, original mounting position and quantity before ordering.
