OVERVIEW

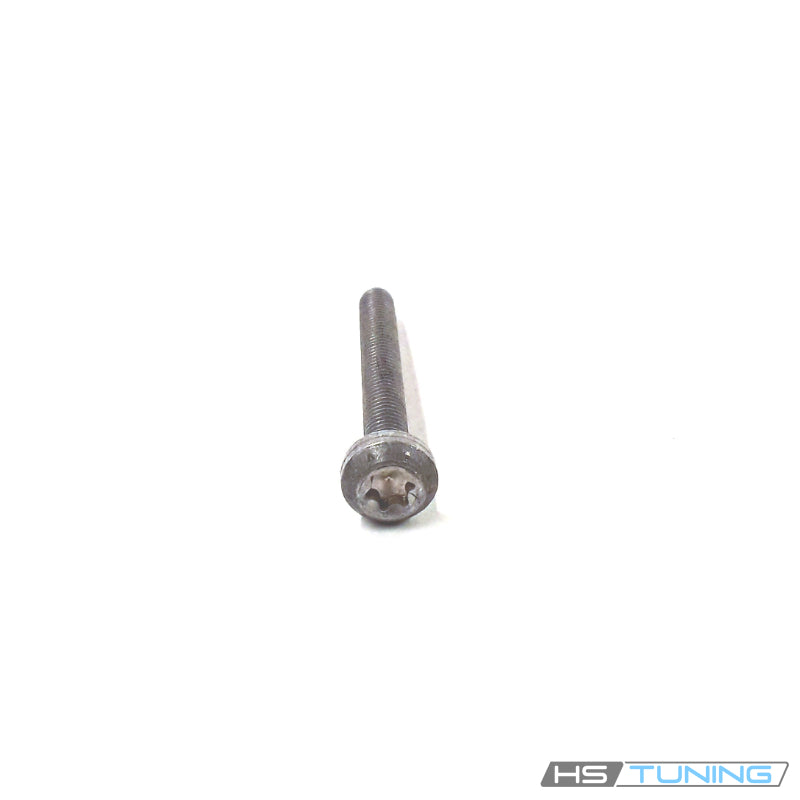

Genuine VW/Audi N-911-649-01 is an individual mounting bolt for the original oil-pump attachment in the verified applications below. The recessed drive, bearing flange and threaded shank are shown in the archive product photograph.
Technical details and contents
- Factory part number: N-911-649-01 / N91164901.
- Factory nominal fastener specification: M8 × 65.
- Application: assigned oil-pump mounting connection; diagram position varies by vehicle.
- Quantity supplied: one individual bolt.
- Pump, drive components, seals and other mounting hardware are separate.
The nominal designation identifies the functional fastener size. It is not a packaged shipping measurement. Neighboring fasteners in the pump assembly have different lengths and factory numbers, so select the assigned bolt for its exact location.
Function in the lubrication system
This fastener retains the oil pump at its specified mounting point. The pump attachment must remain correctly seated and aligned during operation. Correct mounting hardware supports the intended assembly, but the bolt does not regulate oil pressure or repair internal pump wear.
Common reasons to replace
- The original bolt is missing following oil-pump or engine service.
- The recessed drive has become rounded or damaged.
- Thread damage prevents smooth installation by hand.
- The shank is bent, or the bearing surface is damaged.
- The exact factory repair procedure requires replacement during reassembly.
Inspect the receiving threads, pump mounting surfaces and associated components before installing replacement hardware. A new fastener will not correct a cracked mounting point, damaged pump housing, restricted oil pickup or another lubrication-system fault.
Vehicle fitment
Match the complete vehicle configuration and the original pump diagram assignment. Other bolts within the same assembly can look similar while having different lengths. The table identifies the confirmed model-year configuration for this connection.
| Vehicle | Model years | Engine | Configuration | Application restrictions |
|---|---|---|---|---|
| Audi Q7 | 2017 | 2.0L turbocharged gasoline inline-four | 4M SUV; original oil-pump mounting assembly; 8-speed automatic; quattro | Oil-pump mounting fastener at original diagram position 22, nominal M8 × 65. Match pump and attachment; 3.0L engines excluded. |
| Volkswagen GTI | 2015–2017 | 2.0L EA888 Gen 3 turbocharged gasoline inline-four | Mk7 hatchback; front-wheel drive; 6-speed manual / 6-speed DSG | Assigned original oil-pump hardware connection specifying N91164901, M8 × 65. Confirm engine, pump and exact fastening point; neighboring oil-pan and bracket bolts are separate. |
| Volkswagen GTI | 2018–2021 | 2.0L EA888 Gen 3 turbocharged gasoline inline-four | Mk7.5 hatchback; front-wheel drive; 6-speed manual | Assigned original oil-pump hardware connection specifying N91164901, M8 × 65. Confirm engine, pump and exact fastening point; neighboring oil-pan and bracket bolts are separate. |
| Volkswagen GTI | 2018 | 2.0L EA888 Gen 3 turbocharged gasoline inline-four | Mk7.5 hatchback; front-wheel drive; 6-speed DSG | Assigned original oil-pump hardware connection specifying N91164901, M8 × 65. Confirm engine, pump and exact fastening point; neighboring oil-pan and bracket bolts are separate. |
| Volkswagen GTI | 2019–2021 | 2.0L EA888 Gen 3 turbocharged gasoline inline-four | Mk7.5 hatchback; front-wheel drive; 7-speed DSG | Assigned original oil-pump hardware connection specifying N91164901, M8 × 65. Confirm engine, pump and exact fastening point; neighboring oil-pan and bracket bolts are separate. |
| Volkswagen Golf R | 2015–2017 | 2.0L EA888 Gen 3 turbocharged gasoline inline-four | Mk7 hatchback; 4Motion; 6-speed DSG; 6-speed manual for 2016–2017 only | Assigned original oil-pump hardware connection specifying N91164901, M8 × 65. Confirm engine, pump and exact fastening point; neighboring oil-pan and bracket bolts are separate. |
| Volkswagen Golf R | 2018–2019 | 2.0L EA888 Gen 3 turbocharged gasoline inline-four | Mk7.5 hatchback; 4Motion; 6-speed manual / 7-speed DSG | Assigned original oil-pump hardware connection specifying N91164901, M8 × 65. Confirm engine, pump and exact fastening point; neighboring oil-pan and bracket bolts are separate. |
| Volkswagen GLI | 2022–2024 | 2.0L EA888 Gen 3 turbocharged gasoline inline-four | Mk7.5 Jetta sedan; front-wheel drive; 6-speed manual | Assigned original oil-pump hardware connection specifying N91164901, M8 × 65. Confirm engine, pump and exact fastening point; neighboring oil-pan and bracket bolts are separate. |
| Audi A3 | 2015–2016 | 2.0L EA888 Gen 3 turbocharged gasoline inline-four | 8V sedan; quattro; 6-speed S tronic DSG | Assigned original oil-pump hardware connection specifying N91164901, M8 × 65. Confirm engine, pump and exact fastening point; neighboring oil-pan and bracket bolts are separate. |
Installation guidance
Follow the factory oil-pump removal and installation procedure for the exact engine. Maintain cleanliness when the lubrication system is open and prevent debris from entering oil passages. Check the condition and placement of the pump, seals and drive components before fastening.
Start the bolt by hand with the pump properly aligned. Use the correct recessed-drive tool and follow the specified tightening sequence, torque, angle and renewal instructions for this mounting point. Do not substitute a torque value from an adjacent oil-pan or pump-cover fastener.
If the repair began because of an oil-pressure concern, complete the required diagnosis and post-repair checks. Replacement mounting hardware alone does not establish that the pump or oil-pressure system is operating correctly.
Ordering information
This listing contains one genuine mounting bolt. Confirm the required quantity and any additional seals or fasteners before beginning the repair. The oil pump, oil, filter, drive chain and a complete installation kit are not included.
