OVERVIEW
Factory bolt for the assigned fuel pump mounting
Genuine VW/Audi N-911-873-01 secures the designated attachment in the matching high-pressure fuel pump assembly. The socket head provides the original tool engagement while the threaded shank matches the assigned mounting point.
This listing supplies one dry fastener. The pump, flange, fuel lines and fuel are separate components; replacing mounting hardware does not correct a faulty pump or a damaged mounting surface.
Technical details
- Complete factory number: N-911-873-01.
- Factory specification: M8 × 30 socket head bolt, factory number N-911-873-01.

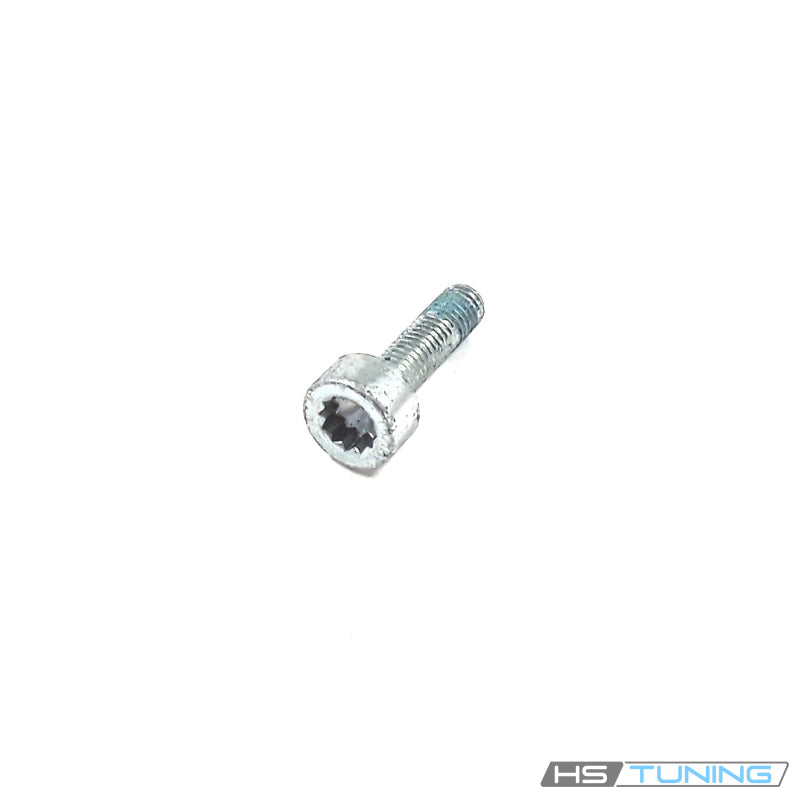

- Design: cylindrical socket head and threaded shank as shown in the original archive photo.
- Quantity supplied: one individual fuel pump mounting bolt.
The exact engine and pump arrangement determine its use. Match the full part number, length and original fastening position. Use the correct drive tool for the socket shown; do not force a similar tool into the head.
Common reasons to replace
- The repair procedure requires replacement of removed hardware.
- The socket or bolt threads are damaged.
- Corrosion or deformation prevents the fastener from seating correctly.
Inspect the pump flange, receiving threads and mating faces during service. A damaged mounting thread or distorted flange requires its own repair. Diagnose fuel-system faults before replacing hardware.
Vehicle fitment
The confirmed applications below distinguish CNRB and CPNB diesel engines and their original high-pressure pump attachments. Match the engine code, full bolt number and assigned mounting point; gasoline and Hybrid pump arrangements are not covered by these rows.
| Vehicle | Model years | Engine | Configuration | Application restrictions |
|---|---|---|---|---|
| Volkswagen Touareg | 2013–2014 | 3.0L V6 TDI, CNRB | 7P 4MOTION; TDI Sport / Lux / Executive / R-Line where equipped | Original high-pressure fuel pump attachment, diagram position 11, M8 × 30. Confirm CNRB engine and original pump hardware; not gasoline or Hybrid. |
| Audi A6 | 2014 | 3.0L V6 TDI; CPNB | C7 sedan; quattro | Original high-pressure fuel pump mounting, M8 × 30. Three bolts used at pump; one supplied. Match factory pump and engine code. |
| Audi A7 | 2014 | 3.0L V6 TDI; CPNB | C7 Sportback; quattro | Original high-pressure fuel pump mounting, M8 × 30. Three bolts used at pump; one supplied. Match factory pump and engine code. |
Installation guidance
Follow the factory high-pressure fuel pump service procedure, including the prescribed pressure relief and cleanliness requirements. Position the assembly correctly and use the specified replacement hardware, tightening sequence and torque for the exact engine.
Complete all required pump drive, fuel-system and leak checks if the assembly was disturbed. Renew separate seals and other single-use service components when the repair procedure requires them.
Ordering information
One individual Genuine VW/Audi N-911-873-01 bolt is supplied. Confirm the complete original number and required quantity; additional mounting bolts are ordered separately.
