OVERVIEW
Genuine VW/Audi Door Reinforcement Bar Bolt
N-911-946-01 is original fastening hardware for specified Audi door reinforcement beam locations. The same OEM part number also appears at assigned radiator support splash deflector positions on selected A6 and S6 applications. The component diagram determines the correct use: the bolt's catalog name does not make it suitable for every door, shield or bracket fastening point.
Technical details
- OEM part number: N-911-946-01 / N91194601.

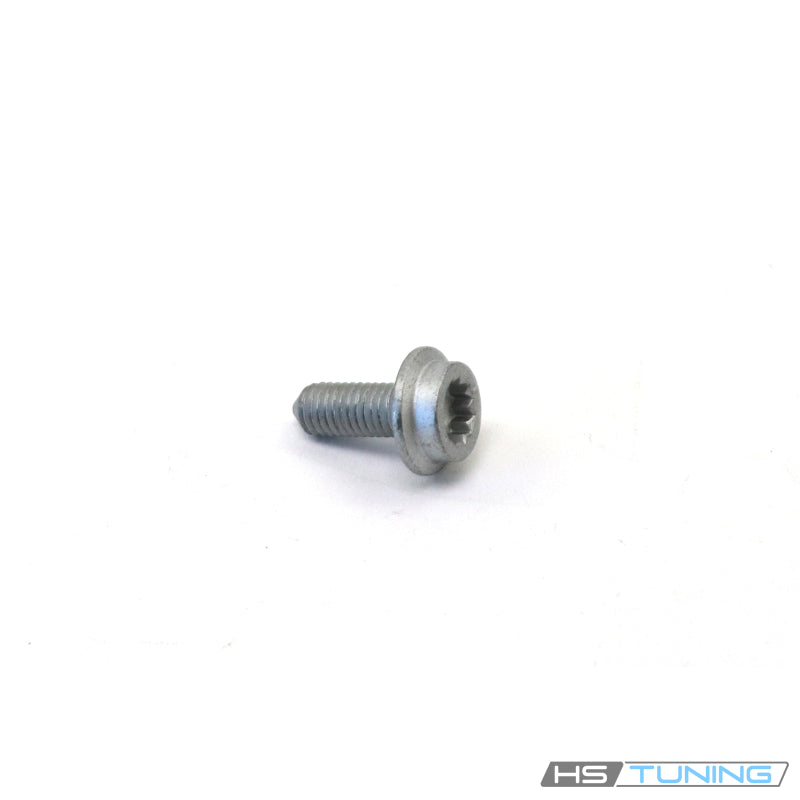

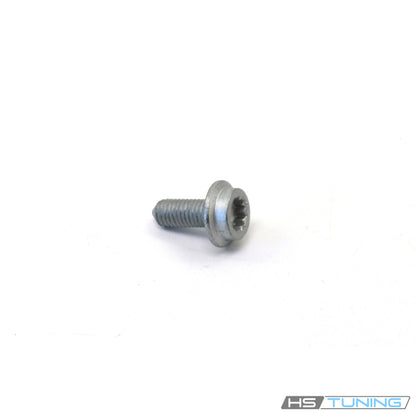

- Head configuration: Flat-profile head with an internal multipoint drive, identified in the genuine parts catalog and visible in the original photo.
- Primary catalog names: Door reinforcement bar bolt / reinforcement beam screw.
- Additional confirmed function: Front splash deflector screw at specified A6 / S6 mounting positions.
- Supply: One individual bolt. Door reinforcement, door shell, retaining nuts and splash shields are supplied separately.
Common reasons to replace
Replace missing hardware during door component or splash deflector service. Renew a bolt with damaged threads, a bent shank, corrosion or a rounded internal drive that prevents correct tool engagement. Damage beneath the head can also interfere with proper seating. If the original fastener loosened or the retained part has moved, inspect the mating threads, retaining nut and component mounting point before reassembly. Collision damage or a distorted door reinforcement requires assessment of the assembly; new hardware alone does not restore damaged structural parts.
Installation and service notes
Match the original OEM reference to the exact door or splash deflector diagram. Check the mating retainer, align the component and start the bolt by hand without forcing damaged threads. Use a fully seated multipoint tool and follow the vehicle-specific tightening, renewal and thread preparation instructions. A door reinforcement joint and a splash shield joint can have different procedures despite using the same part number, so no universal torque value is implied. Do not replace an adjacent fastener with this bolt merely because the head looks similar.
Vehicle fitment
The table distinguishes the confirmed component locations and vehicle configurations. Match the body style, equipment and installed fastening point. Nearby splash shield bolts can carry different OEM numbers and should be ordered separately when required.
| Vehicle | Model years | Engine | Configuration | Application restrictions |
|---|---|---|---|---|
| Audi A4 | 2015 | 2.0L turbo gasoline | B8; Premium; quattro sedan; Confirm original body style, component and fastening diagram | Door reinforcement beam screw at the original assigned door location. |
| Audi S4 | 2015 | 3.0L supercharged gasoline V6 | B8; Premium Plus / Prestige; quattro sedan; Confirm original body style, component and fastening diagram | Door reinforcement beam screw at the original assigned door location. |
| Audi S5 | 2015 | 3.0L supercharged gasoline V6 | B8; Prestige; quattro coupe / convertible; Confirm original body style, component and fastening diagram | Door reinforcement / impact beam bolt; match the body style and door diagram. |
| Audi allroad | 2016 | 2.0L turbo flex-fuel | B8; Premium Plus; quattro wagon; Confirm original body style, component and fastening diagram | Door reinforcement bar bolt at positions specifying N91194601 only. |
| Audi A6 | 2016 | 2.0L turbo gasoline | C7; Premium; Confirm original body style, component and fastening diagram | Radiator support front deflector screw; use only at the N91194601 position, not the adjacent N91140701 bolt. |
| Audi A6 | 2016 | 3.0L supercharged gasoline V6 | C7; Prestige; quattro; Confirm original body style, component and fastening diagram | Radiator support front deflector screw; use only at the N91194601 position, not the adjacent N91140701 bolt. |
| Audi A6 | 2016 | 3.0L TDI diesel V6 | C7; TDI Prestige; quattro; Confirm original body style, component and fastening diagram | Radiator support front deflector screw; use only at the N91194601 position, not the adjacent N91140701 bolt. |
| Audi S6 | 2016 | 4.0L twin-turbo gasoline V8 | C7; Prestige; quattro; Confirm original body style, component and fastening diagram | Radiator support front deflector screw positions specifying N91194601 only. |
Verify N91194601 at the original fastening position by VIN and the applicable vehicle diagram.
