OVERVIEW
N-912-225-01 Genuine VW/Audi Upper Shock Absorber Mounting Bolt - M10 x 40 mm. This Genuine VW/Audi fastener secures the assigned upper shock absorber mounting connection. The mounting joint holds the shock assembly in its designed position while suspension movement loads the connection. Matching the correct bolt and the vehicle's mounting arrangement is essential when replacing a shock or servicing its upper mount.
Technical details
- OEM part number: N-912-225-01 / N91222501.

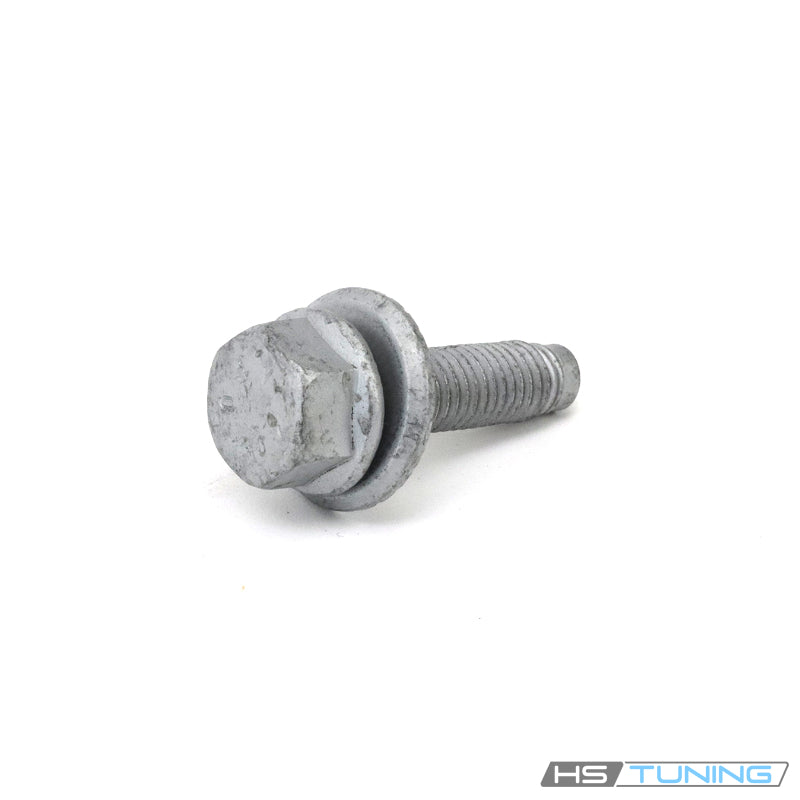

- Hexagon head with an attached washer / combination head arrangement, visible in the original product photo.
- Catalog size: M10 x 40 mm.
- Upper shock absorber mounting application; the vehicle diagram determines the exact location.
- The Audi catalog identifies this fastener as non-reusable: install a new bolt after removal.
- Supplied as one bolt. Mounts, brackets, washers not integral to this bolt, and other repair components are separate.
Common reasons to replace
A new bolt is required when this specified fastener is removed during shock absorber or upper mount service. Replace hardware with damaged threads, a distorted seating area, corrosion affecting the connection or a rounded hex head. A loose or damaged mounting connection warrants inspection of the bolt, mount and mating threads rather than simply tightening an unknown used fastener.
Installation and service notes
Support the suspension assembly as directed by the vehicle repair procedure before releasing its mounting hardware. Inspect the mounting holes and mating threads, compare the new fastener with the specified part number, and install it in the factory-assigned position. Follow the prescribed suspension support position and tightening procedure; this listing does not substitute a generic torque value for the repair manual.
A new bolt does not correct a torn mount, damaged bearing, elongated mounting hole or stripped mating thread. Inspect those components separately and replace any other single-use hardware required by the repair. Confirm the suspension equipment and mounting diagram before ordering; the same vehicle may use different fasteners at its lower mount and other suspension joints.
Fitment
| Vehicle | Model years | Engine | Configuration | Application restrictions |
|---|---|---|---|---|
| Audi A6 allroad | 2020–2024 | Match the original suspension assembly; engine does not establish bolt fitment | C8 allroad quattro; assigned upper shock absorber mounting point; Transmission does not determine suspension mounting-bolt fitment | Confirm upper mounting location and suspension equipment by VIN. Use only where N91222501 is specified; replace after removal and do not reuse. |
Match the OEM part number, original mounting location and vehicle equipment before ordering. Additional vehicle applications are added only after catalog confirmation.
