OVERVIEW

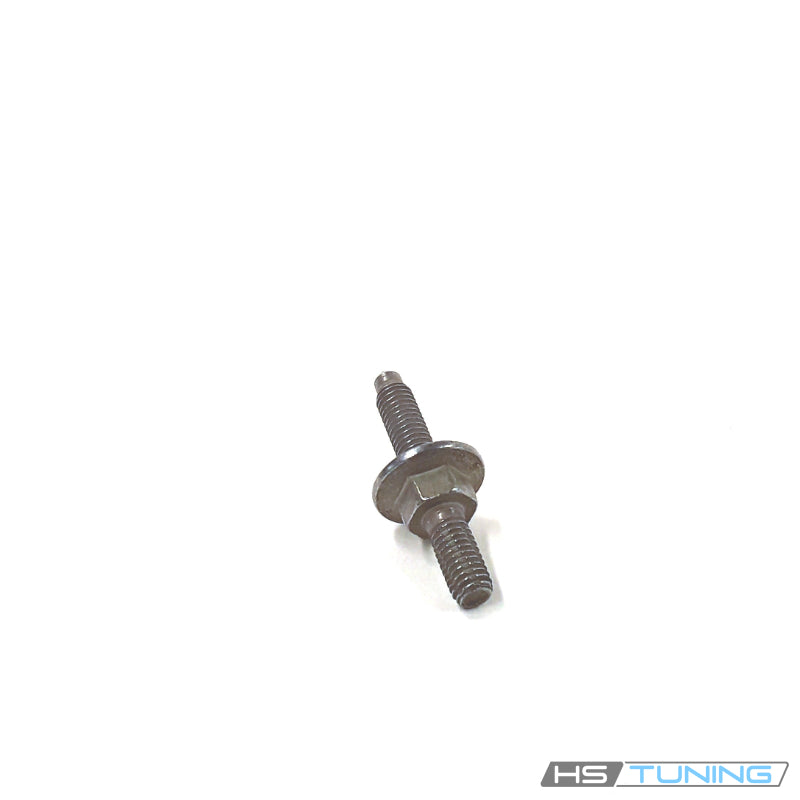

Factory double-collared stud for the fender mounting assembly
N-912-440-01 is the Genuine VW/Audi double collared stud used at the assigned fender and end-cover mounting positions on the confirmed Audi A4 applications below.
The two threaded portions and central hexagon provide the original mounting arrangement. This small service fastener is supplied separately from the fender, end plate, cover and supporting brackets.
Technical details
- Complete factory number: N-912-440-01.
- Factory specification: M6 x 22 factory designation.
- Design: double collared threaded mounting stud with central hexagon.
- Quantity supplied: one individual stud.
M6 is the nominal thread size and 22 mm is the catalog dimension for this stud. Match the complete factory number and exact mounting position rather than substituting a general-purpose bolt.
Common reasons to replace
- The stud is missing after body or trim service.
- Threads are damaged or crossed.
- The central hexagon is rounded or damaged.
- The stud is bent and no longer aligns the original connection.
- The bearing collars are damaged or cannot seat correctly.
Inspect the mating receiver, bracket, cover and mounting faces. A new stud cannot repair a cracked mount or distorted body component. Correct alignment before tightening the connection.
Vehicle fitment
Match the original stud number and exact mounting position below. Nearby fender and bracket connections use different hardware.
| Vehicle | Model years | Engine | Configuration | Application restrictions |
|---|---|---|---|---|
| Audi A4 | 2017 | 2.0L turbocharged gasoline I4 | B9 sedan; front-wheel drive; Fender/end-cover mounting connection | Assigned N91244001 stud positions; left or right as applicable. Confirm original end plate and cover arrangement. |
| Audi A4 | 2025 | 2.0L turbocharged gasoline I4 with mild-hybrid system | B9 sedan; quattro; Fender/end-cover mounting connection | Assigned N91244001 mounting stud only; not the complete fender, bracket or end cover. |
Installation guidance
Follow the vehicle-specific fender and end-cover service procedure. Align the components, engage the correct threaded end by hand and apply the prescribed tightening specification for the stud and associated hardware.
Verify seating and component clearance. Check that the cover and supporting parts are secured in their original positions without stressing adjacent trim.
Ordering information
One individual genuine stud. Fender, end cover, brackets, nuts and other hardware are separate. Confirm VIN, original number and required quantity.
