OVERVIEW
Genuine bolt for the specified seat-belt mounting connection

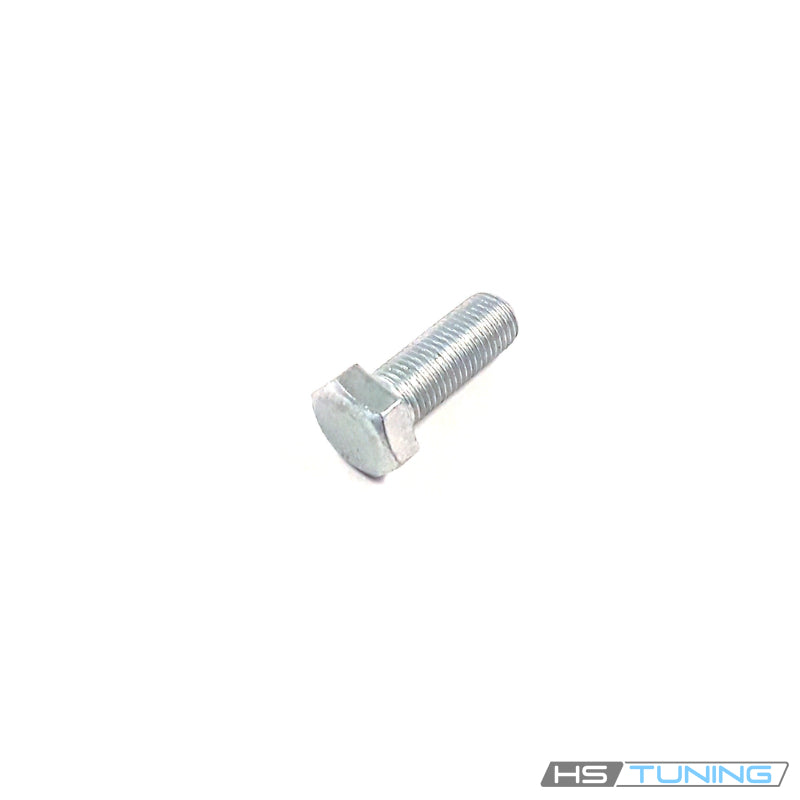

N-989-215-02 is the Genuine VW/Audi hexagon-head bolt assigned to the original seat-belt mounting connections listed below. Its factory specification is 7/16-20×30.
This is an individual mechanical mounting bolt. Seat-belt assemblies use different fasteners at their various attachment points, so confirm the complete factory number and the original installation position rather than treating it as universal belt hardware.
Technical details
- Complete factory number: N-989-215-02.
- Factory specification: 7/16-20 thread × 30 mm nominal length.
- Design: hexagon-head seat-belt mounting bolt.
- Quantity supplied: one individual bolt.
The 7/16-20 thread is an inch-series specification and must not be substituted with a similarly sized metric bolt. Preserve the original bearing and spacer arrangement and use the exact factory-assigned fastener.
Common reasons to replace
- The bolt is missing during interior or belt service.
- The hexagon drive is damaged.
- Threads are damaged or cross-threaded.
- The head or bearing surface is distorted.
- The applicable factory repair procedure requires replacement.
Inspect the anchor, receiving threads, belt bracket and any original spacer or washer. If the restraint system has been involved in a collision, follow the complete factory inspection and replacement procedure for all affected components.
Vehicle fitment
The table identifies confirmed body configurations and original mounting applications. Other belt attachment points and other body styles require separate part-number verification.
| Vehicle | Model years | Engine | Configuration | Application restrictions |
|---|---|---|---|---|
| Audi allroad | 2013 | 2.0L turbocharged gasoline I4 | B8 wagon; quattro; PR K8D; Original seat-belt mounting connection | Only original N98921502 7/16-20×30 belt attachment; retain original hardware arrangement. |
| Audi A4 | 2011 | 2.0L turbocharged gasoline I4 | Avant; quattro; PR K8D; Original seat-belt mounting connection | Avant only; original N98921502 7/16-20×30 belt attachment. |
Installation guidance
Follow the vehicle-specific restraint-system service procedure and maintain the original belt routing and mounting stack. Start the correct bolt by hand and use the factory tightening specification for the exact anchor connection.
Verify secure attachment, correct belt routing and unobstructed belt and buckle operation. Complete any other checks required by the factory procedure before returning the vehicle to service.
Ordering information
One genuine bolt is supplied. Belts, retractors, buckles, spacers and washers are not included. Confirm the original factory number, mounting position and quantity needed.
