RS500 Turbo Upgrade Kit & Tuning Package for 8J (MkII) Audi TTRS 2.5 TFSI

034Motorsport is proud to offer the RS500 Turbo Upgrade & Tuning Package for the 2.5 TFSI engine found in the 8J Audi TTRS!

RS500 was designed for the track day enthusiast who desires an improved usable powerband without sacrificing reliability. Providing significant increases in horsepower and torque past 5,000 RPM, the RS500 Tuning Package shines on track where the factory turbocharger drops off at higher RPM's. Consisting of an OEM+ turbocharger upgrade, higher-flow high-pressure fuel pump, and 034Motorsport’s proprietary performance software, the RS500 tuning package is the elegant, reliable solution for breathtaking performance on the street or track, at an excellent price point.

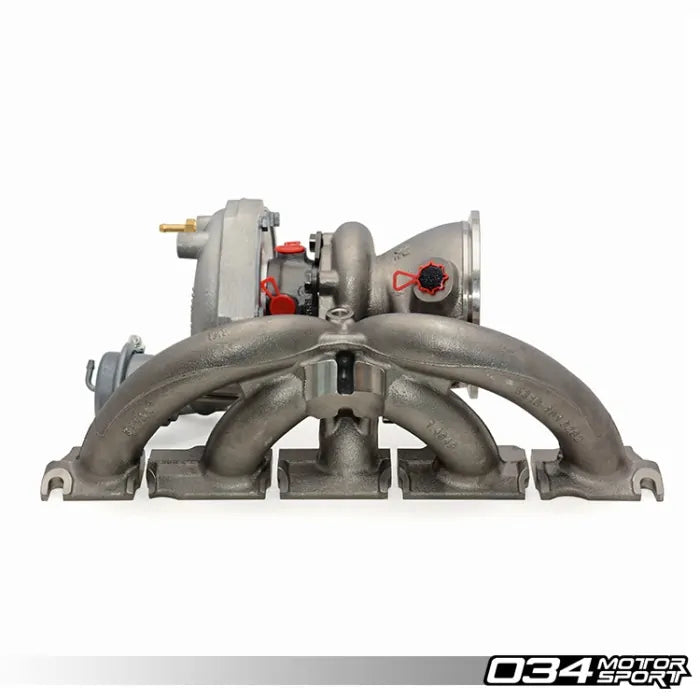

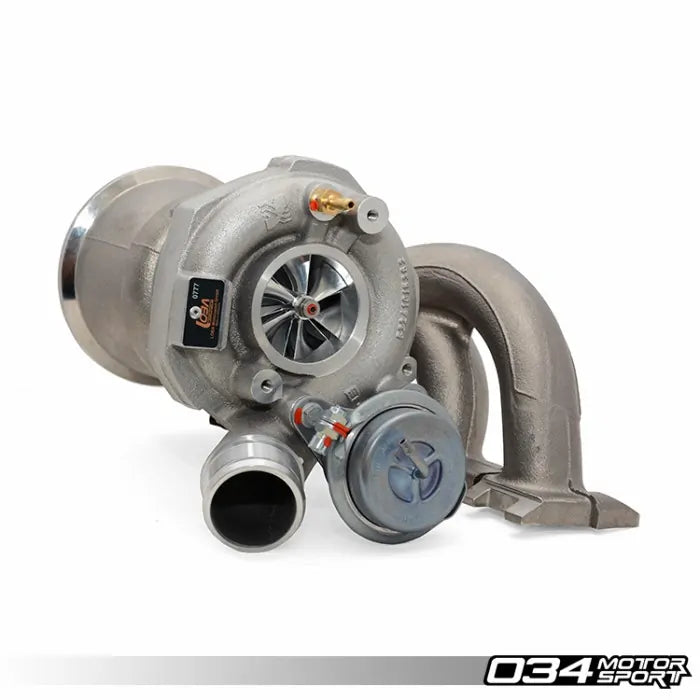

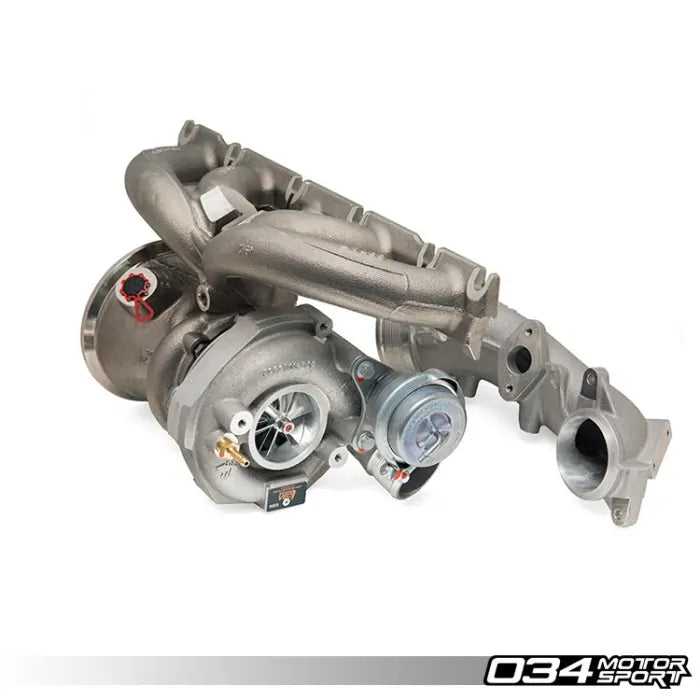

At the center of the 034Motorsport RS500 Tuning Package is the LOBA LO500P drop-in hybrid turbocharger upgrade. Made in Germany and based on the factory Borg Warner unit, this turbocharger features a state-of-the-art billet compressor wheel and clipped turbine wheel to allow for higher flow. The backplate, compressor housing, turbine housing, and exhaust manifold have all been CNC-machined for optimal flow and increased performance. The LO500P turbocharger also features an upgraded thrust bearing, is precision-balanced to ensure reliability, and is the only upgraded turbocharger available for the 2.5 TFSI engine that has been tested and approved by Audi Sport (Part Number  ASCR13 TT 01 01) during the SP4T Race Car’s development.

034Motorsport’s extensive racing experience with the TT RS led to the development of a new line of performance software for the 2.5 TFSI’s Bosch MED 9 ECU, debuting with the RS500 Tuning Package. 034Motorsport spent a significant amount of time developing and verifying our proprietary software to ensure that RS500 delivers consistent, reliable power under grueling track conditions. Through optimization of the factory ECU's boost, fueling, and timing maps, the RS500 Tuning Package brings out the potential of the LO500P Turbocharger. Peak boost ranges from 21-25 PSI (octane dependent) and tapers to 18 PSI by the new 7,100 RPM redline to keep the turbo running at its optimum efficiency. This conservative, track-oriented boost mapping provides rock-solid performance lap after lap, and is combined with an advanced boost control strategy that allows for increased precision beyond factory limits. Going beyond power improvements, 034Motorsport’s calibrator also made improvements to the throttle mapping, increased idle stability, and enabled left-foot braking. The end result is a tune that drives as smoothly as a factory calibration, with power delivery that is consistent and manageable on the street and track alike.

Along with the LO500P Turbocharger and 034Motorsport ECU Calibrations, the RS500 Tuning Package includes a 034Motorsport High-Pressure Fuel Pump Upgrade, Loba CNC-Machined Compressor Inlet Pipe, and Installation Hardware Kit. RS500 installs as a drop-in replacement for the factory parts, without requiring extensive modifications to other components.

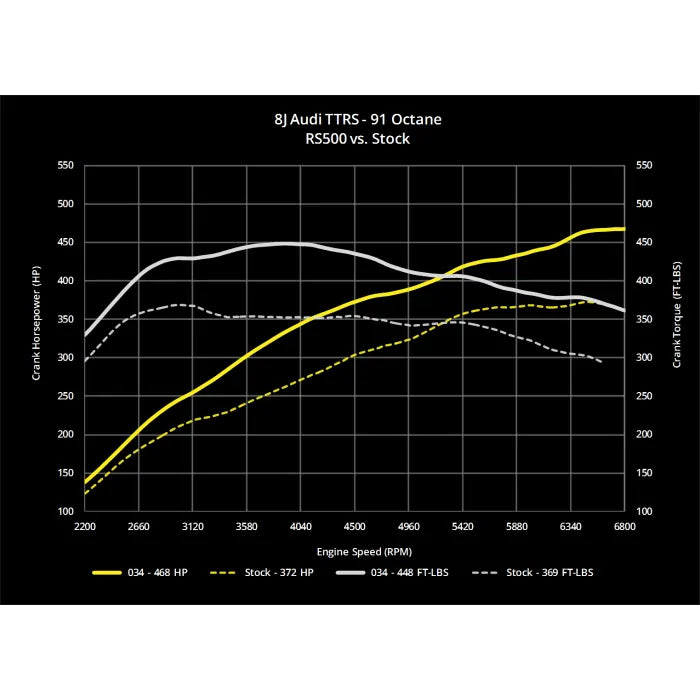

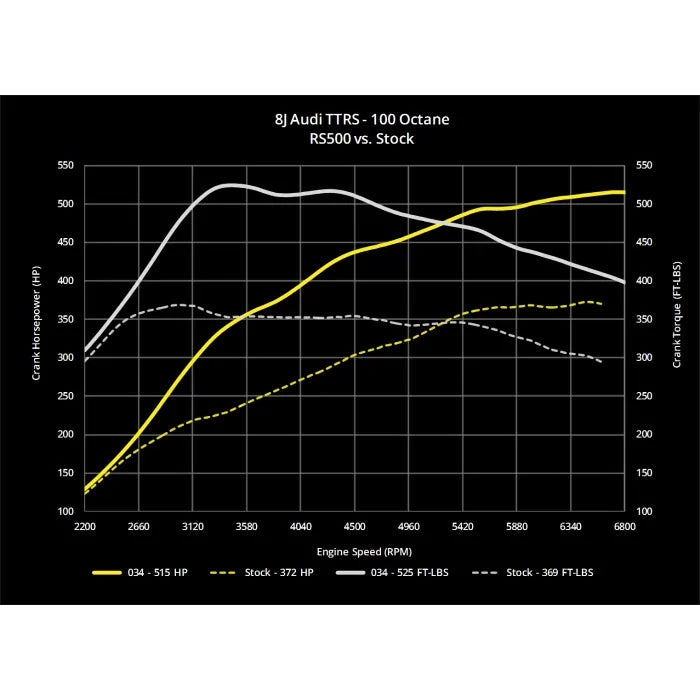

Peak Horsepower & Torque:

• Stock: 372 Horsepower / 369 Foot-Pounds of Torque (As Measured by 034Motorsport on 91 Octane)
• RS500 91 Octane: 468 Horsepower / 448 Foot-Pounds of Torque
• RS500 100 Octane: 515 Horsepower / 525 Foot-Pounds of Torque

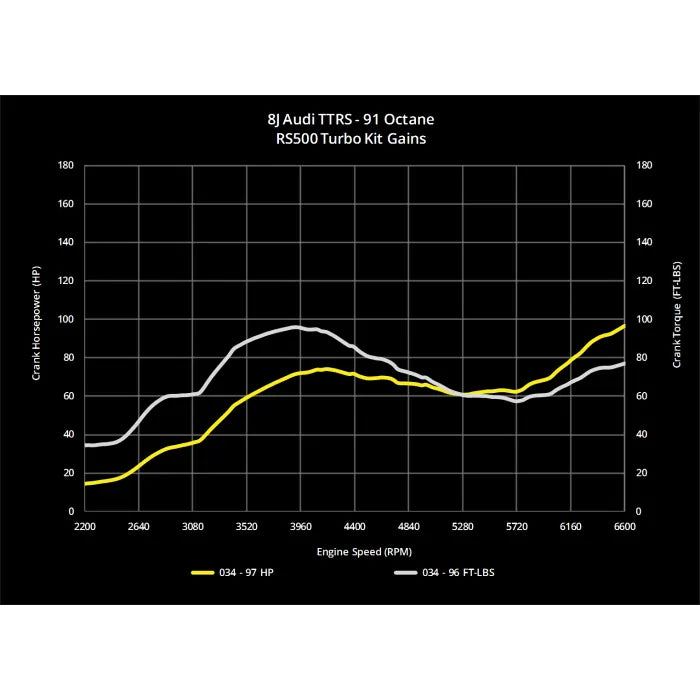

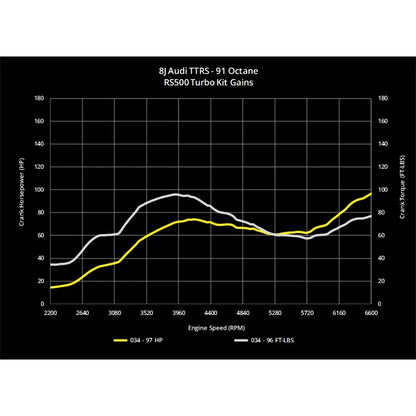

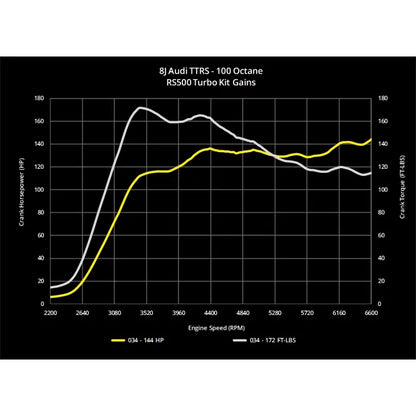

Peak Horsepower & Torque Gains Under Curve:

• 91 Octane: 113 HP @ 6,600 RPM / 96 TQ @ 3,950 RPM

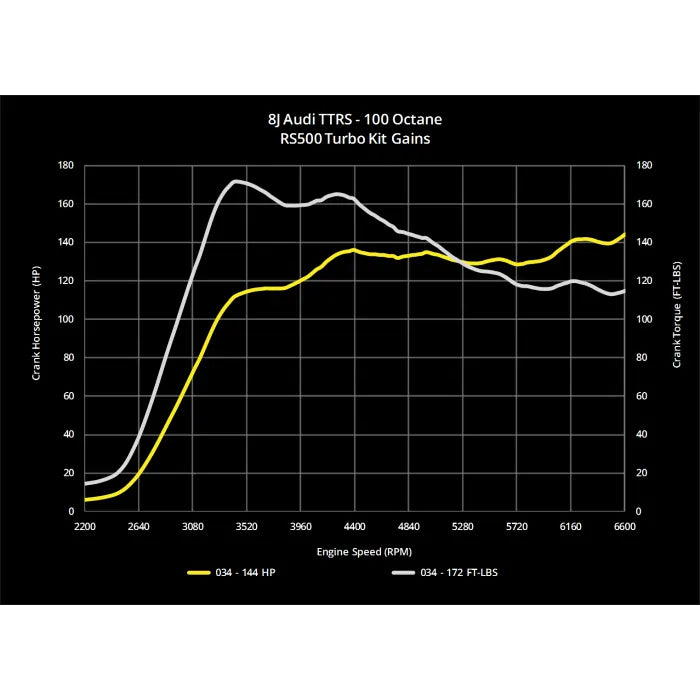

• 100 Octane: 144 HP @ 6,600 RPM / 172 TQ @ 3,400 RPM

All Dynamic+ tunes can now be flashed anywhere you please with the 034SPI (Smartphone Interface) Mobile Flashing application!

Designed for use on iOS and Android Devices as well as Apple Silicon-equipped laptops (M1, M2, M3), 034SPI allows you to easily flash your car, change fuel maps, configure live data displays, record and submit data logs to 034Motorsport's Tuning Support team, and utilize diagnostic support tools such as DTC/CEL code read/clear and more! Available now for use with any Dynamic+ ECU or TCU tune and the latest R4 Dynamic+ End User Flashing Dongle (May 2023 & Newer)! Download via the Apple App Store or Google Play Store Today!

Download for iOS / Android

To see full app features and access helpful How-To YouTube videos: Click Here

Detailed Flashing Features:

• Complete Any ECU Or TCU Tune Flash
• Quickly Flash Different Fuel Octane Or Transmission Files
• Flash ECU/TCU Using Mobile Device's Internet Connection
• Enhanced Flashing Protocol Protections For Increased Flashing Stability
• User-Configurable Live Data Displays
• Multiple Data Display Views
• Dozens Of Defined Variables Available
• High-Speed Datalogging Of Pre-Defined Variables
• Easy Upload Of Logs To 034Motorsport Server
• Datalog Analysis Services Available Free Of Charge
• Read & Clear DTCs On ECU & TCU
• View Emissions Monitor Statuses
• Perform Adaptations/Recalibrations*
  • *Available for limited platforms, coverage expanding regularly

Tuning Features:

• Developed In-House on the Street, Track, and 034Motorsport's Chassis Dyno
• Optimized Boost, Timing, and Fueling Maps for Increased Horsepower & Torque
• Increased Rev Limiter to 7,100 RPM
• Speed Limiter (Governor) Removed
• Improved Throttle Response & Power Delivery
• Refined Throttle Mapping for Part Throttle Drive-ability
• Mirrored Throttle Mapping Between Normal & Sport Mode (No More Touchy On/Off Switch!)
• Increased Idle Stability (Especially Helpful with Lightweight Flywheels!)
• More Aggressive Exhaust Flap Control In Sport Mode
• Left-Foot Braking Enabled

Hardware Features:

• LOBA LO500P Turbocharger
  • LOBA LO-3171“Extended Tip” Forged Billet Compressor Wheel
  • 5-Axis CNC Re-Profiled Compressor Housing & Backplate
  • 5-Axis CNC-Machined Exhaust Manifold
  • Clipped Turbine Wheel
  • Upgraded Thrust Bearing
  • Upgraded Wastegate Actuator
  • Precision Balanced Individual Components & CHRA
  • Approved Official Audi Sport Part (ASCR13 TT 01 01)
  • SCCA World Challenge Legal
  • Made in Germany

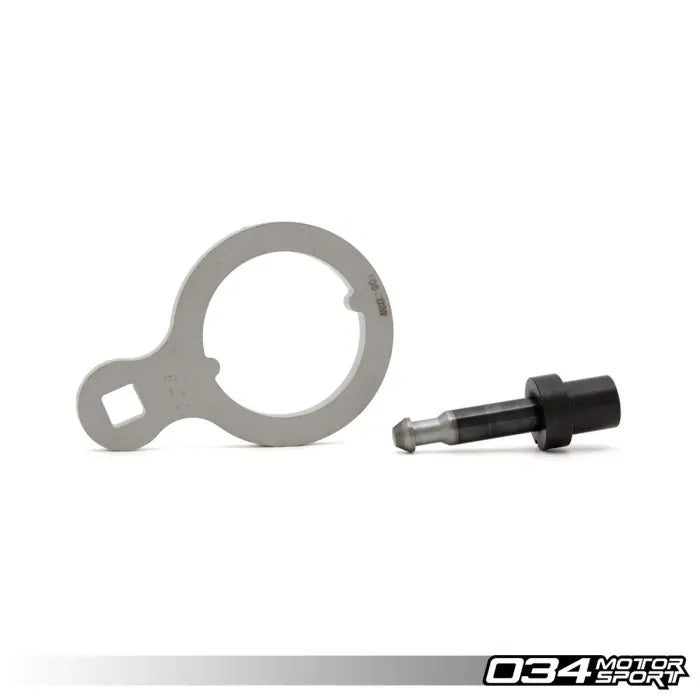

• 034Motorsport High Pressure Fuel Pump Piston Upgrade Kit with 034Motorsport Tool
  • Yields up to 50% Flow Increase Over the Factory High Pressure Fuel Pump
  • Increased Piston Diameter
    • Stock Pump: 9.98mm (Area: 78.23mm2)
    • 034Motorsport Pump: 11.48mm (Area: 103.51mm2)
  • Raises the Factory Fueling Limits Present in 2.5T Engines
  • Required for Stage 2+ & RS500 Performance Software
  • Fuel Pump Internals Precision-Machined to Aerospace Tolerances
  • DLC Coated Piston and Cylinder for Reduced Friction and Increased Performance
  • Matched Piston and Cylinder for Absolute Precision

What's Included

• Loba LO500P Turbocharger

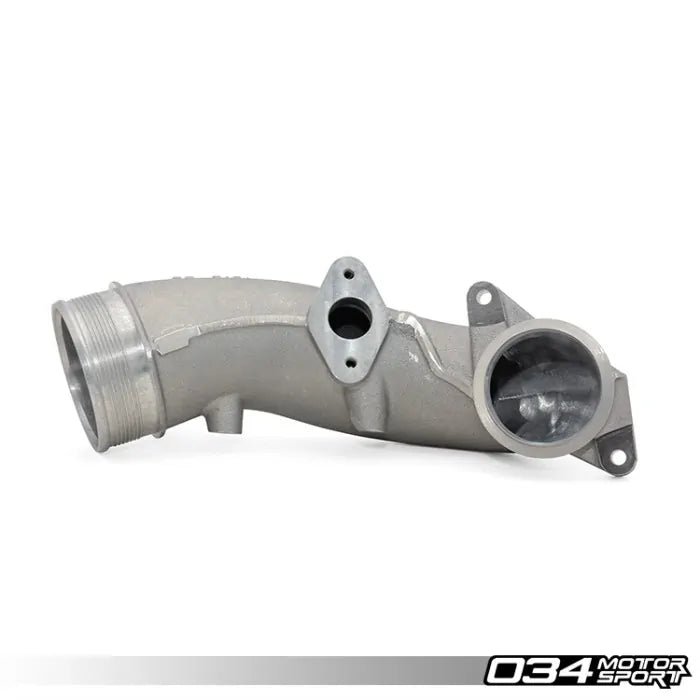

• LOBA CNC-Machined Compressor Inlet Pipe
• 034Motorsport High Pressure Fuel Pump Piston Upgrade Kit with 034Motorsport Tool
• Installation Hardware Kit

Compatible Vehicles:

• 2012 - 2013 Audi TTRS 2.5 TFSI (8J)
