Unitronic Performance ECU Software Audi RS3/TTRS 8V/8S

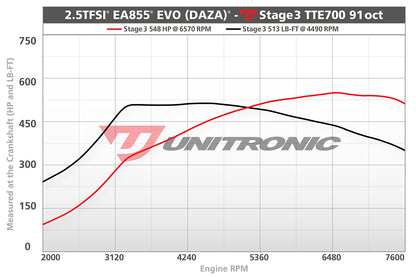

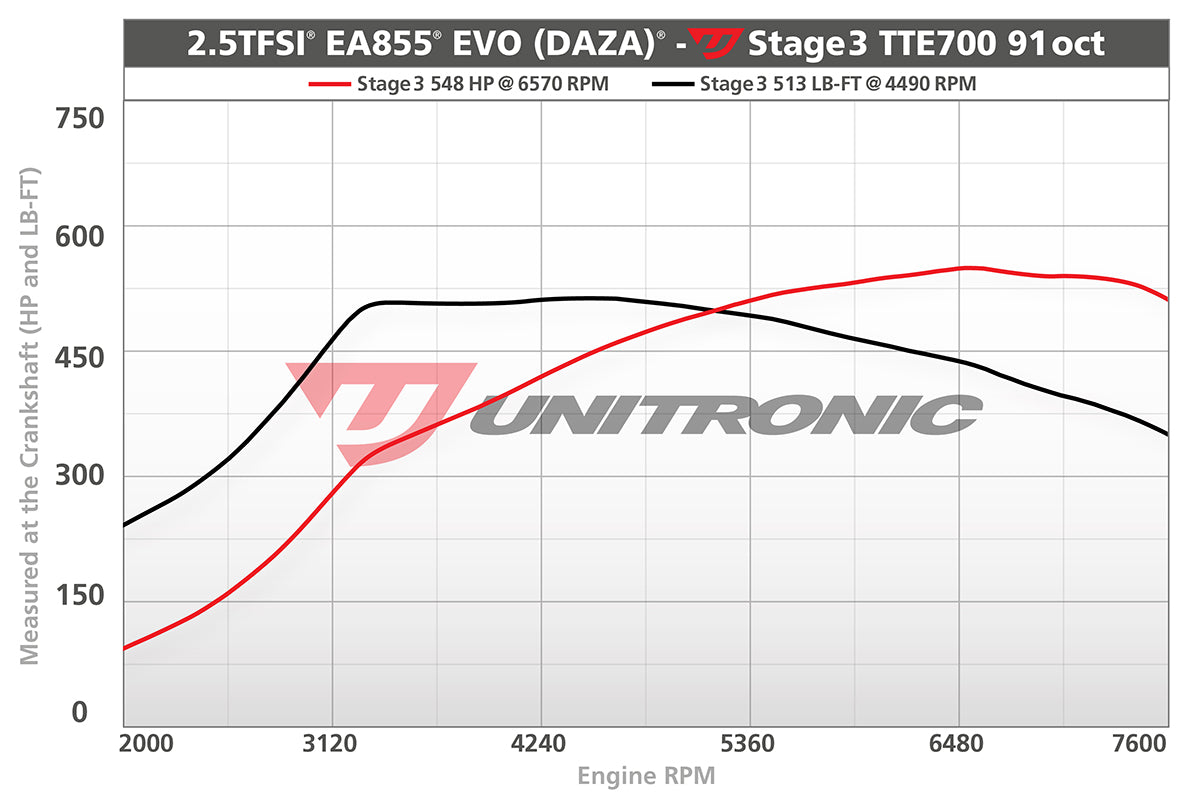

Unitronic Stage 3 TTE700 Performance Software is precisely calibrated for use with a TTE700 for 91octane fuel and full hardware bolt-ons. If you're limited to using 91 octane fuel, you must be willing and able to log the vehicle to ensure the 91oct fuel is sufficient enough to allow for safe operation with these upgrades at these power levels. It may be necessary to find a higher-quality fuel, use an additive, or blend with race fuel or ethanol.

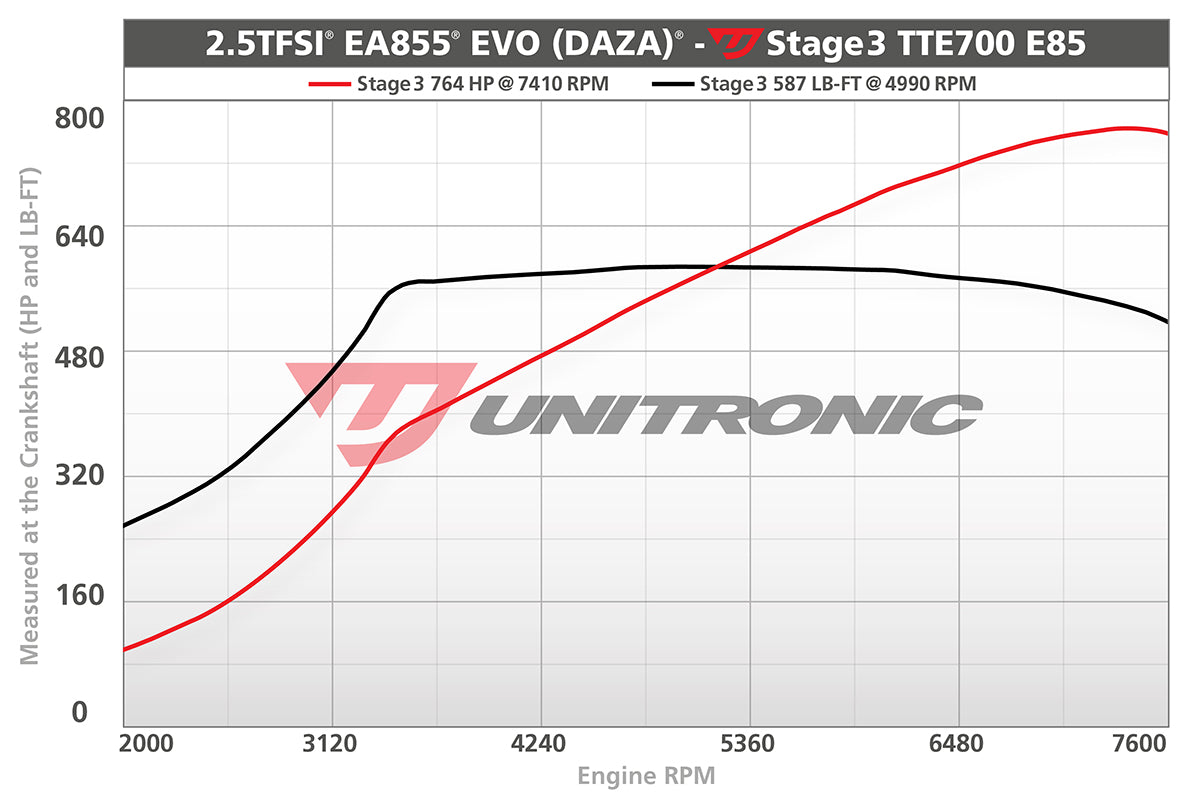

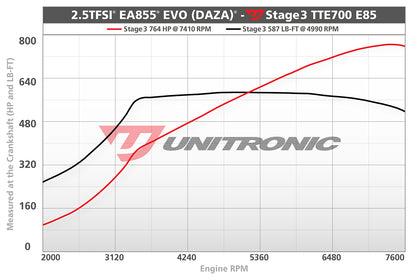

Unitronic strongly urges its Stage 3 ECU Performance Software calibrations to be utilized together with a built engine/fortified bottom end. Stage 3 ECU Calibrations for the TTE700 are available in a "torque-limited" and "unlimited" formats, with Ethanol fuel. Maximum or "unlimited" torque ECU calibrations are meant to be used with built engines and require an Iroz Motorsports Single Brushless LPFP and Unitronic 4 bar MAP sensors.* Stage 3 TTE700 93oct/98ron ECU calibrations are also available with the LPFP and MAP sensor upgrades. Power figures displayed for Stage 3 TTE700 with E85 fuel are not representative of the maximum torque ECU calibrations. Stage 3 TTE700 "Torque-limited" ECU calibrations for Ethanol fuel are for use with the stock LPFP and MAP sensors. Stock LPFP's are not all created equally and output may vary; Ethanol content levels should remain ~E70 with the stock LPFP, air quality dependent.

Unitronic Stage 3 TCU Performance Software is required to run Stage 3 ECU tune.

Performance Software for your ECU Box Code is subject to availability.

2019+ models may require to have the hood opened during the flashing process.

*Unitronic 4 bar TMAP sensors are only available for customers who own or have purchased together with Stage 3 ECU Performance Software.




Unitronic FLEX fuel enabled ECU Performance Software Calibrations are available for this platform allowing for seamless transitions between 100% gasoline to 85% ethanol and anything in between, without requiring an ECU reflash. This FLEX enabled Software is available for an additional fee and it covers all lower stages up until your highest purchased stage as well. UniFLEX Hardware is required in order to take advantage of these FLEX enabled calibrations.** Please contact Unitronic or your local Authorized Dealer to learn more.



*FLEX Software add-on pricing may vary for other regions.

**MY2022 TTRS requires this UniFLEX Hardware kit.

• Engineered with Strict Industry Standards
  With over 20 years of experience with Bosch and Siemens engine management systems and calibrations, Unitronic is able to utilize its expertise, industry leading tools and equipment to ensure an optimal calibration; delivering maximum performance, while maintaining complete OEM-like reliability and drivability.


• Extensively Tested Under Various Driving Conditions
  Development begins using Unitronic’s in-house Maha Chassis dyno housed in an environmentally controlled cell; closely monitoring a plethora of operational data, utilizing industry leading calibration tools and resources. Beta calibrations are then tested in street and track scenarios, using multiple cars under various driving conditions. This engine calibration strategy ensures Unitronic Performance Software delivers maximum performance, OEM-like drivability and reliability anywhere in the world.


• Factory Safety Limiters Retained
  OEM “fail safes” are retained within the ECU calibration. Close monitoring of all operation parameters ensures that engine operation stays within factory components limits, resulting in reliability.


• Optimized Responsiveness, Smoothness, Drivability, and Comfort

• Unitronic’s ECU calibrations are engineered to improve engine response and reduce low-end lag. Unitronic’s Performance Software has gained worldwide recognition and is well known for its broad powerband, with smooth power delivery, maximizing responsiveness and “area under the curve”, under normal and hard acceleration.


• Optimized Maximum Output
  Unitronic’s ECU Calibrators deliver the maximum power output while staying within the operational limits of the factory engine and drivetrain components. Specifically, this results in the highest engine performance without sacrificing the reliability of the engine, turbocharger, or other engine and drivetrain components.


• Speed Governor Removed
  Vehicle speed limiter within ECU is removed. (Subject to transmission rotational speed limit.)


• Left Foot Braking (LFB) Enabled
  LFB allows users to apply load on the engine using their left foot on the brake, to build boost when the edge is needed at the race track.


• Spark-based "Motorsports" Style Rev-limiter Enabled
  The traditional rev limiter will de-load of the engine as engine speed reaches maximum RPM. Unitronic has enabled the spark-based rev-limiter, to avoid the de-loading, allowing power all the way to the rev-limiter.


• Exhaust Crackle/Overrun Enabled
  Unitronic has recalibrated the Exhaust Crackles/Overrun/Pops & Bangs when in Dynamic/Sport Mode to be more aggressive and louder.


• Exhaust Flaps Always Open in Dynamic/Sport Mode
  In factory form, both Exhaust Flaps are not open when in Dynamic/Sport Mode. Unitronic enables both Exhaust Flaps to be open at all times, when in Dynamic/Sport Mode, for maximum performance and sound.


• Full Staged Software Suite
  Includes all Stage 3 tune variants and all lower software stages as well.


• Rolling Anti-Lag (RAL)
  Unitronic is also proud to announce the addition of Rolling Anti Lag (RAL) into these new FLEX enabled calibrations. FUNCTION USAGE: Turn cruise control ON, but not activated. Hold down cruise control stalk downwards (decrease speed, -), then go wide open throttle WOT. You can do this with your left fingers, while both hands are on the steering wheel with ease. PRECONDITIONS FOR FUNCTION TO BE ACTIVE: 70degC coolant temp minimum threshold, more than 1000rpm engine speed, more than 30kph vehicle speed, and more than 45% throttle position. The function will be activated for 6 seconds maximum and can't be re-activated for 15 seconds refresh time. This function is very hard on the engine and its components - IT IS NOT FOOL PROOF. It's easy to melt an engine to the ground with it. Use it wisely and at your own peril.

• 2.5TFSI EVO 4 inch Turbo Inlet Elbow TTE625/700 (62.8mm) Adapter Ring
• 2.5TFSI EVO Spark Plug Set (NGK R7437-9) by Unitronic
• 4 bar TMAP Sensor Upgrade Kit For 2.5TFSI EVOby Unitronic
• Iroz Motorsports Single Brushless Low Pressure Fuel Pump Upgrade
• Unitronic 4 inch Intake System for RS3 and TTRS, 2.5TFSI EVO
• Unitronic 4 inch Turbo Inlet Elbow for 2.5TFSI EVO
• Unitronic 5-Inch Intake System
• Unitronic 5-Inch Intake System w/ Air Guide
• Unitronic Downpipe w/ Midpipes for 2.5TFSI EVO
• Unitronic Intercooler for 8Y RS3, 8V.2 RS3 and 8S TTRS
• Unitronic MPI Injector Upgrade Kit for 2.5TFSI EVO
• TTE700 Turbocharger
• Iroz Motorsports Single Brushless Low Pressure Fuel Pump Upgrade (if Built Engine and using "Max Torque" ECU calibrations)
• Built Bottom End (Rods and Pistons)

• Unitronic Street Dogbone Engine Mount for 2.5TFSI EVO

• Unitronic UniFLEX Hardware Kit (w/ Sensor) for 2.5TFSI EVO

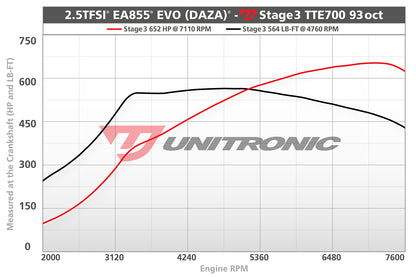

Unitronic Stage 3 Big Turbo 93 Octane:

652HP / 564LB-FT

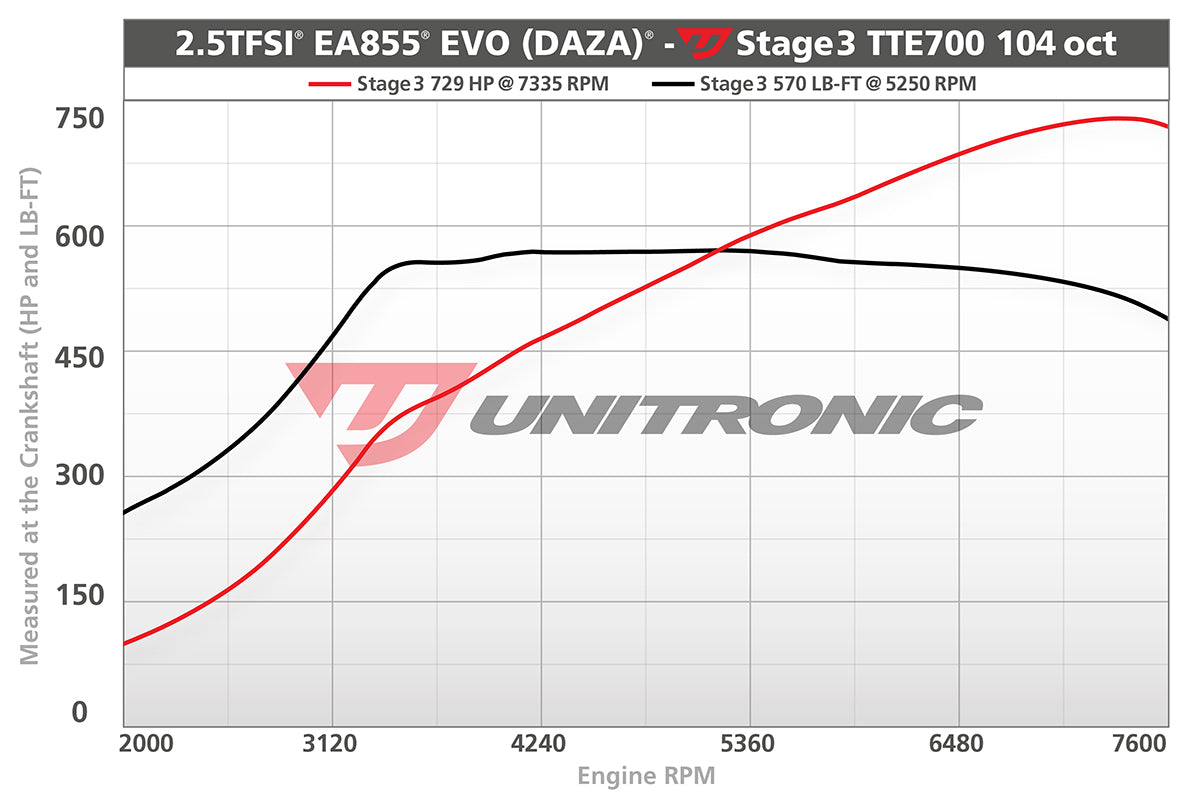

Unitronic Stage 3 Big Turbo 104 Octane :

729HP / 570LB-FT
