OVERVIEW
Original attachment hardware for the Q7 door hinge

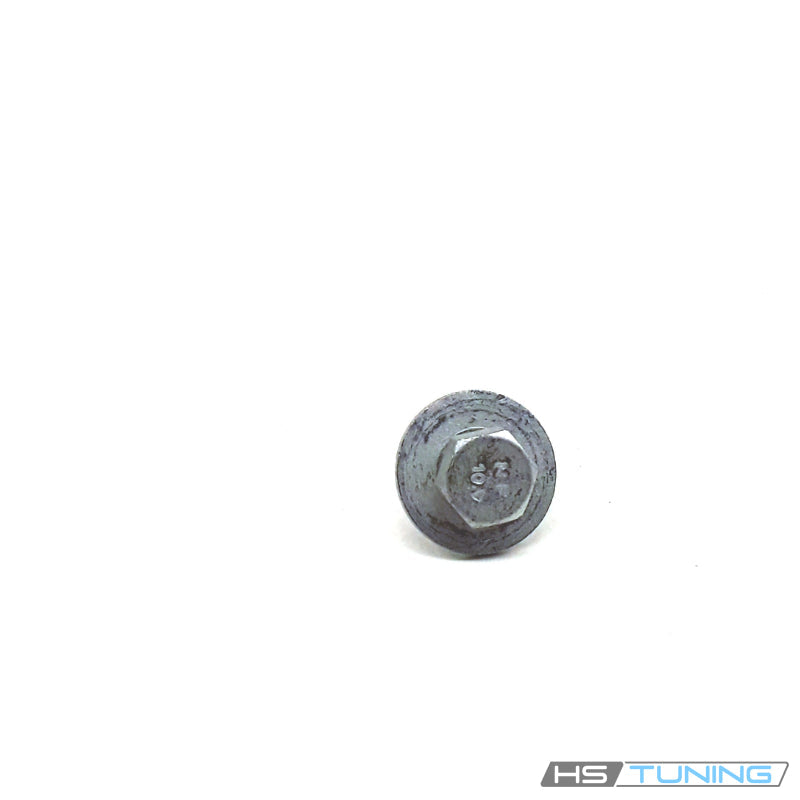

WHT-001-236 is a Genuine VW/Audi M8 x 22 combination hex-head bolt used at the specified original door-hinge mounting point on the Q7 4L.
The external hex head and washer arrangement provide the intended bearing interface at the assigned hinge joint. Door hinges, door checks and latch strikers use several similar-looking fasteners; match the complete number and exact position before ordering.
Technical details
- Complete factory number: WHT-001-236.
- Factory specification: M8 x 22 mm combination hex-head bolt.
- Design: External six-sided head with washer bearing arrangement.
- Quantity supplied: one individual bolt.
M8 identifies the nominal thread diameter and 22 mm the catalog length. This is one bolt, not a hinge assembly or a complete set of door mounting hardware. No unverified torque, strength class or material specification is claimed.
Common reasons to replace
- Rounded hex flats that prevent reliable tightening or removal.
- Damaged threads, a bent shank or a compromised head or washer seating surface.
- Missing hardware or an incorrect substitute found during hinge replacement or door alignment service.
Inspect the hinge leaves, pin, receiving threads and mounting surfaces. Door sag, wind noise or difficult latching can result from hinge wear or alignment problems that a replacement bolt alone will not correct.
Vehicle fitment
The following applications require the original door-hinge mounting arrangement specifying this complete number. Verify the attachment position and required quantity against the vehicle.
| Vehicle | Model years | Engine | Configuration | Application restrictions |
|---|---|---|---|---|
| Audi Q7 | 2007–2010 | 3.6L VR6 or 4.2L V8 gasoline | 4L SUV, quattro, original door-hinge attachment; 6-speed automatic | Original hinge attachment specifying WHT-001-236 M8 x 22. Confirm the complete bolt number and mounting position; other hinge and door-check positions use different fasteners. |
| Audi Q7 | 2009–2010 | 3.0L TDI diesel | 4L SUV, quattro, original door-hinge attachment; 6-speed automatic | Original hinge attachment specifying WHT-001-236 M8 x 22. Confirm the complete bolt number and mounting position; other hinge and door-check positions use different fasteners. |
| Audi Q7 | 2011–2015 | 3.0L TDI diesel | 4L SUV, quattro, original door-hinge attachment; 8-speed automatic | Original hinge attachment specifying WHT-001-236 M8 x 22. Confirm the complete bolt number and mounting position; other hinge and door-check positions use different fasteners. |
| Audi Q7 | 2011–2015 | 3.0L supercharged gasoline | 4L SUV, quattro, original door-hinge attachment; 8-speed automatic | Original hinge attachment specifying WHT-001-236 M8 x 22. Confirm the complete bolt number and mounting position; other hinge and door-check positions use different fasteners. |
Installation guidance
Support the door before loosening hinge hardware. Preserve the original alignment reference and washer arrangement, start the bolt by hand and follow the factory repair procedure and tightening specification for the exact joint.
Verify door gaps, latch engagement and clearance through the full opening range after assembly. Replace worn hinges or damaged receiving threads before returning the vehicle to service.
Ordering information
New and unused inventory. Sold individually as WHT-001-236. Confirm VIN, complete factory number, hinge position and quantity before ordering.
