OVERVIEW

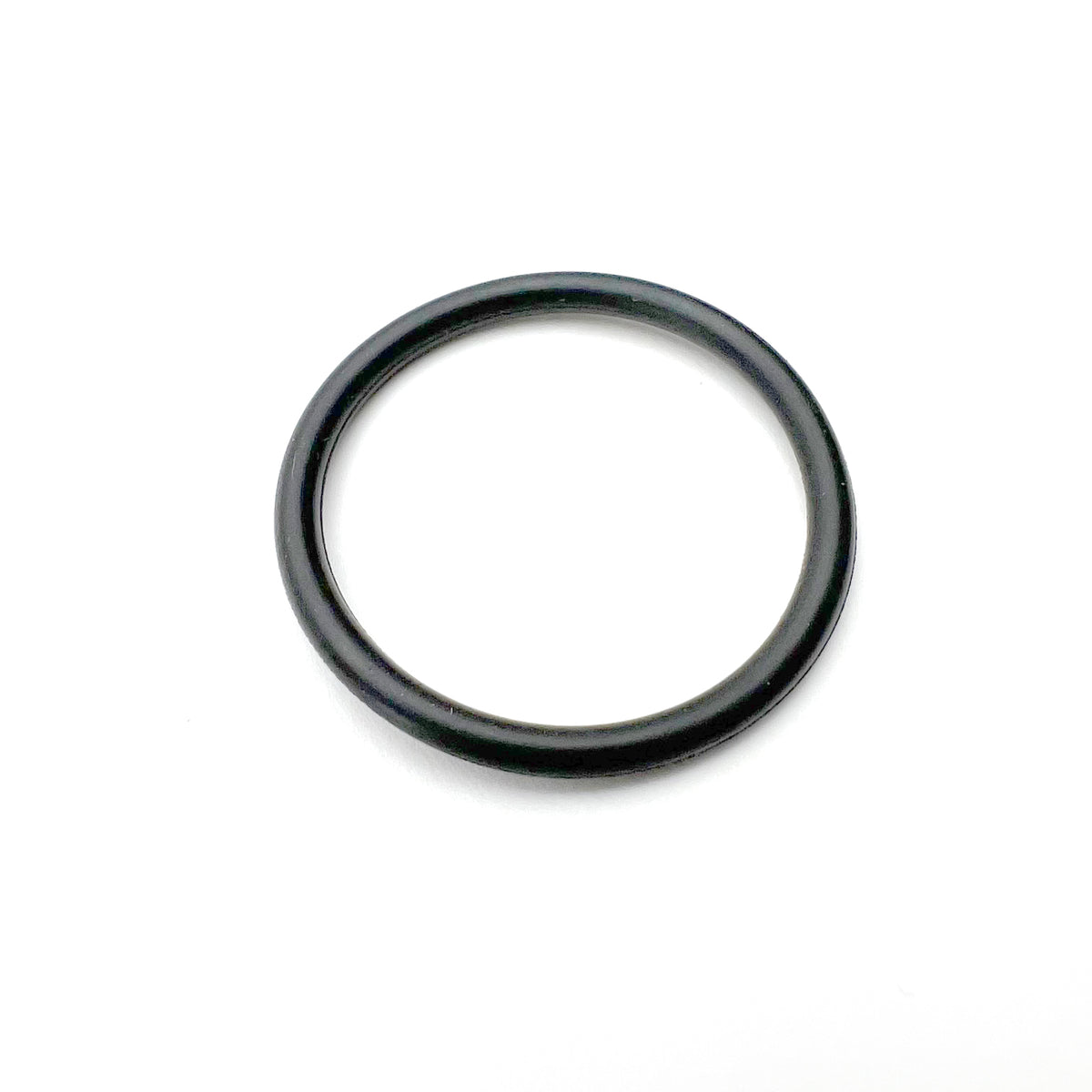

Genuine VW/Audi coolant flange sealing O-ring, part number WHT-001-688. This circular seal closes the matching coolant flange or pipe connection on the applications listed below. It works by fitting into the joint's designated sealing seat and being compressed evenly when the mating components are correctly installed, helping contain coolant as the cooling system warms and pressurizes.
Technical details
- Original part number: WHT-001-688 / WHT001688.
- Separate circular coolant-system seal; the profile is shown in the original product photo.
- Used at matching flange and connector locations; the exact mounting point must be checked for the installed engine and cooling arrangement.
- One O-ring supplied. Flange, coolant pipe, thermostat, pump, retaining clip and coolant are not included.
Common reasons to replace
Renew this seal when servicing its coolant connection, when the old ring is cut or flattened, or when diagnosis identifies seepage through the joint. A twisted or pinched O-ring may leak even if the flange itself is undamaged. Heat cycling, age and previous removal can make an old seal less able to conform to the sealing surfaces.
Coolant residue near a flange, gradual coolant loss or wetness around a connection warrants inspection. These symptoms do not identify the seal alone: a cracked plastic flange, loose retaining hardware, a damaged pipe, another leak above the joint or cooling-system overpressure can produce similar evidence. Replacing an O-ring does not repair a cracked housing or correct an overheating fault elsewhere in the system.
Installation and service notes
Allow the engine to cool and follow the vehicle-specific draining and pressure-release procedure before opening the cooling system. Clean the seal seat and inspect the mating flange or pipe for damage. Fit the replacement ring without stretching, twisting or trapping it outside its groove, and use only the assembly lubricant or coolant permitted by the repair manual.
Confirm correct engagement of the connector and its retaining hardware. Refill with the approved coolant specification, bleed the system as required and check for leakage after service. Match the VIN, engine code, installed flange and sealing position before ordering; several visually similar seals may be used on the same engine.
Fitment
| Vehicle | Model years | Engine | Configuration | Application restrictions |
|---|---|---|---|---|
| Audi A3 | 2006–2008 | 2.0L turbocharged gasoline inline-4 | 8P hatchback; BPY only; Match VIN-specific coolant flange / connector | Confirm VIN, installed flange and seal location; different coolant joints can use different seals. |
| Audi A4 | 2005–2008 | 2.0L turbocharged gasoline inline-4 | B7 sedan; BPG / BWT; 2005 new-body 2.0T only; Match VIN-specific coolant flange / connector | Confirm VIN, installed flange and seal location; different coolant joints can use different seals. |
| Audi A4 quattro | 2005–2008 | 2.0L turbocharged gasoline inline-4 | B7 sedan / Avant; BPG / BWT; Match VIN-specific coolant flange / connector | Confirm VIN, installed flange and seal location; different coolant joints can use different seals. |
| Audi A4 Cabriolet | 2007–2009 | 2.0L turbocharged gasoline inline-4 | B7 convertible; front-wheel drive / quattro; BWT; Match VIN-specific coolant flange / connector | Confirm VIN, installed flange and seal location; different coolant joints can use different seals. |
| Audi allroad | 2013–2016 | 2.0L turbocharged gasoline inline-4 | B8 wagon; gasoline; Match VIN-specific coolant flange / connector | Confirm VIN, installed flange and seal location; different coolant joints can use different seals. |
| Audi S3 | 2015–2020 | 2.0L turbocharged gasoline inline-4 | 8V sedan; Match VIN-specific coolant flange / connector | Confirm VIN, installed flange and seal location; different coolant joints can use different seals. |
| Audi S3 | 2022–2024 | 2.0L turbocharged gasoline inline-4 | 8Y sedan; Match VIN-specific coolant flange / connector | Confirm VIN, installed flange and seal location; different coolant joints can use different seals. |
| Audi TT | 2008–2009 | 2.0L turbocharged gasoline inline-4 | Front-wheel-drive coupe / roadster; Match VIN-specific coolant flange / connector | Confirm VIN, installed flange and seal location; different coolant joints can use different seals. |
| Volkswagen Arteon | 2019–2023 | 2.0L turbocharged gasoline inline-4 | Sedan; four-cylinder only; Match VIN-specific coolant flange / connector | Confirm VIN, installed flange and seal location; different coolant joints can use different seals. |
| Volkswagen Atlas | 2018–2025 | 2.0L turbocharged gasoline inline-4 | SUV; four-cylinder only; Match VIN-specific coolant flange / connector | Confirm VIN, installed flange and seal location; different coolant joints can use different seals. |
| Volkswagen Atlas Cross Sport | 2020–2025 | 2.0L turbocharged gasoline inline-4 | SUV; four-cylinder only; Match VIN-specific coolant flange / connector | Confirm VIN, installed flange and seal location; different coolant joints can use different seals. |
| Volkswagen Beetle | 2014–2017 | 1.8L turbocharged gasoline inline-4 | 1.8T coupe / convertible; trims where offered; Match VIN-specific coolant flange / connector | Confirm VIN, installed flange and seal location; different coolant joints can use different seals. |
| Volkswagen Beetle | 2013–2019 | 2.0L turbocharged gasoline inline-4 | 2.0T coupe / convertible; trims where offered; Match VIN-specific coolant flange / connector | Confirm VIN, installed flange and seal location; different coolant joints can use different seals. |
| Volkswagen CC | 2009–2017 | 2.0L turbocharged gasoline inline-4 | 2.0T sedan; excludes VR6; Match VIN-specific coolant flange / connector | Confirm VIN, installed flange and seal location; different coolant joints can use different seals. |
| Volkswagen Eos | 2007–2009 | 2.0L turbocharged gasoline inline-4 | 2.0T convertible; excludes VR6; Match VIN-specific coolant flange / connector | Confirm VIN, installed flange and seal location; different coolant joints can use different seals. |
| Volkswagen Golf | 2015–2018 | 1.8L turbocharged gasoline inline-4 | 1.8T hatchback; excludes TDI; Match VIN-specific coolant flange / connector | Confirm VIN, installed flange and seal location; different coolant joints can use different seals. |
| Volkswagen Golf Alltrack | 2017–2019 | 1.8L turbocharged gasoline inline-4 | Wagon; Match VIN-specific coolant flange / connector | Confirm VIN, installed flange and seal location; different coolant joints can use different seals. |
| Volkswagen Golf SportWagen | 2015–2019 | 1.8L turbocharged gasoline inline-4 | 1.8T wagon; 2019 4Motion only; Match VIN-specific coolant flange / connector | Confirm VIN, installed flange and seal location; different coolant joints can use different seals. |
| Volkswagen Golf R | 2015–2019 | 2.0L turbocharged gasoline inline-4 | Mk7 hatchback; Match VIN-specific coolant flange / connector | Confirm VIN, installed flange and seal location; different coolant joints can use different seals. |
| Volkswagen Golf R | 2022–2024 | 2.0L turbocharged gasoline inline-4 | Mk8 hatchback; Match VIN-specific coolant flange / connector | Confirm VIN, installed flange and seal location; different coolant joints can use different seals. |
| Volkswagen GTI | 2006–2024 | 2.0L turbocharged gasoline inline-4 | Turbo gasoline hatchback; match installed coolant joint; Match VIN-specific coolant flange / connector | Confirm VIN, installed flange and seal location; different coolant joints can use different seals. |
| Volkswagen Jetta | 2014–2018 | 1.8L turbocharged gasoline inline-4 | 1.8T sedan; trims where offered; Match VIN-specific coolant flange / connector | Confirm VIN, installed flange and seal location; different coolant joints can use different seals. |
| Volkswagen Jetta GLI | 2006–2009 | 2.0L turbocharged gasoline inline-4 | Mk5 GLI sedan; Match VIN-specific coolant flange / connector | Confirm VIN, installed flange and seal location; different coolant joints can use different seals. |
| Volkswagen Jetta GLI | 2012–2018 | 2.0L turbocharged gasoline inline-4 | Mk6 GLI sedan; Match VIN-specific coolant flange / connector | Confirm VIN, installed flange and seal location; different coolant joints can use different seals. |
| Volkswagen Jetta | 2009–2010 | 2.0L turbocharged gasoline inline-4 | Wolfsburg Edition sedan; turbo gasoline only; Match VIN-specific coolant flange / connector | Confirm VIN, installed flange and seal location; different coolant joints can use different seals. |
| Volkswagen Passat | 2006–2010 | 2.0L turbocharged gasoline inline-4 | B6 2.0T sedan / wagon; excludes VR6; Match VIN-specific coolant flange / connector | Confirm VIN, installed flange and seal location; different coolant joints can use different seals. |
| Volkswagen Tiguan | 2009–2017 | 2.0L turbocharged gasoline inline-4 | First-generation SUV; Match VIN-specific coolant flange / connector | Confirm VIN, installed flange and seal location; different coolant joints can use different seals. |
| Volkswagen Tiguan Limited | 2017–2018 | 2.0L turbocharged gasoline inline-4 | Carryover first-generation SUV; Match VIN-specific coolant flange / connector | Confirm VIN, installed flange and seal location; different coolant joints can use different seals. |
Confirm the VIN and the exact coolant joint. These are confirmed configurations, not a claim that every coolant connection on each vehicle uses this seal.
