OVERVIEW
Genuine VW/Audi WHT-002-057 is an individual cup washer used in the assigned internal manual-transmission output-shaft and tapered-bearing arrangement. It provides the correctly specified service part during gearbox disassembly and repair on the confirmed configurations below.
Technical details and what is included
- Factory part number: WHT-002-057 / WHT002057.
- Component: internal manual-transmission cup washer.
- Factory nominal designation: 14 × 27.15 × 2 × 10.
- Quantity supplied: one individual cup washer.
- Verified earlier reference: 02M-311-456 where the current washer is assigned as the forward replacement.

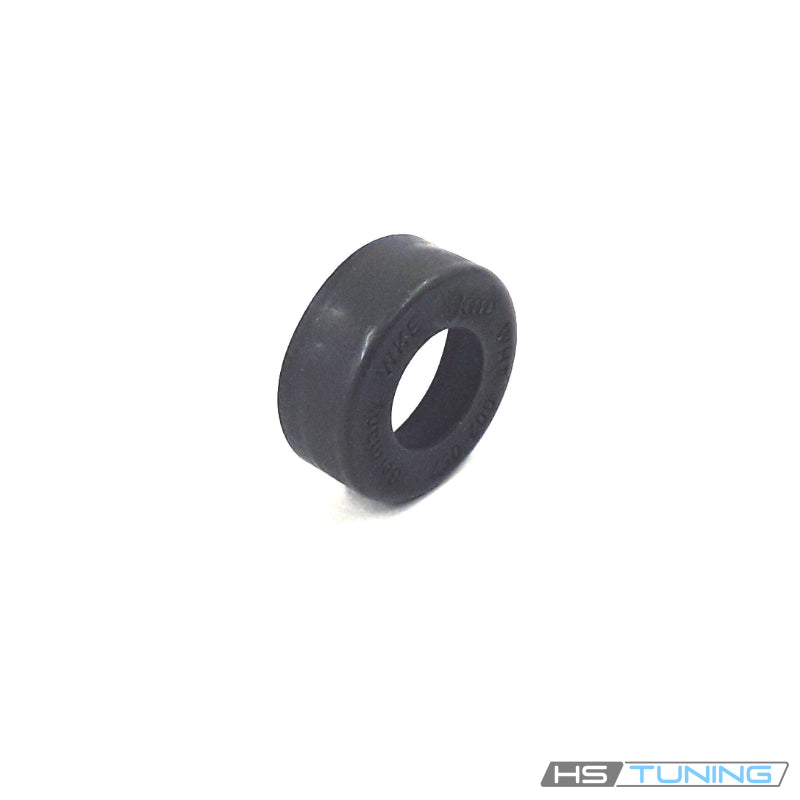

- The archive photograph shows the cupped profile and central opening of the individual component.
The factory designation describes this internal component rather than its shipping package. Match the gearbox code, shaft arrangement and exact part assignment before ordering. A transmission with the same number of speeds may use a different internal design. Bearings, shafts, gears, seals and lubricants are separate from this listing.
Common reasons to replace
- The cup washer is missing during gearbox assembly.
- The component is damaged or distorted during disassembly.
- Inspection identifies damage at its seating surface.
- The factory gearbox-repair procedure requires renewal of the assigned internal component.
Inspect the associated shaft, bearing and mating components as specified. A replacement washer alone does not correct a worn bearing, damaged shaft, incorrect bearing adjustment or gear-engagement problem. Diagnose transmission symptoms before selecting internal repair parts.
Vehicle fitment
These profiles require the stated manual gearbox and its original internal arrangement. Confirm the actual gearbox code and parts assignment, especially if the transmission has been replaced or rebuilt.
| Vehicle | Model years | Engine | Configuration | Application restrictions |
|---|---|---|---|---|
| Volkswagen GTI | 2006–2007 | 2.0L turbocharged FSI gasoline inline-four | Mk5 hatchback; front-wheel drive; 6-speed manual; PR-G0K; original assigned output-shaft arrangement | Internal cup washer at the factory-assigned output-shaft/tapered-bearing arrangement specifying WHT002057 or its verified earlier 02M311456 reference. Confirm gearbox code and original internal parts assignment. Automatic/DSG and other manual gearbox designs excluded. |
| Volkswagen R32 | 2004 | 3.2L VR6 gasoline | Mk4 hatchback; 4Motion; 6-speed manual; PR-G0L; original assigned output-shaft arrangement | Internal cup washer at the factory-assigned output-shaft/tapered-bearing arrangement specifying WHT002057 or its verified earlier 02M311456 reference. Confirm gearbox code and original internal parts assignment. Automatic/DSG and other manual gearbox designs excluded. |
| Volkswagen Passat | 2015 | 2.0L TDI diesel inline-four | NMS sedan; front-wheel drive; 6-speed manual; PR-G0K; original assigned output-shaft arrangement | Internal cup washer at the factory-assigned output-shaft/tapered-bearing arrangement specifying WHT002057 or its verified earlier 02M311456 reference. Confirm gearbox code and original internal parts assignment. Automatic/DSG and other manual gearbox designs excluded. |
| Audi TT | 2005 | 1.8L turbocharged gasoline inline-four; 225 hp | 8N Coupe / Roadster; quattro; 6-speed manual; PR-G0L; original assigned output-shaft arrangement | Internal cup washer at the factory-assigned output-shaft/tapered-bearing arrangement specifying WHT002057 or its verified earlier 02M311456 reference. Confirm gearbox code and original internal parts assignment. Automatic/DSG and other manual gearbox designs excluded. |
| Audi TT | 2009 | 3.2L VR6 gasoline | 8J Coupe / Roadster; quattro; 6-speed manual; PR-G0L; original assigned output-shaft arrangement | Internal cup washer at the factory-assigned output-shaft/tapered-bearing arrangement specifying WHT002057 or its verified earlier 02M311456 reference. Confirm gearbox code and original internal parts assignment. Automatic/DSG and other manual gearbox designs excluded. |
Installation and service guidance
Use the factory overhaul procedure for the exact gearbox. Internal transmission repair requires the prescribed disassembly, inspection and assembly methods; the model name or a generic six-speed repair procedure is insufficient.
Verify the washer position and orientation in the correct shaft assembly. Inspect its seating surfaces and the associated bearing components. Complete the measurements and adjustments required by the factory procedure rather than treating the washer as a substitute for a separately specified adjustment shim.
Renew any seals, fastening hardware or other internal parts required by the repair procedure. Use the prescribed assembly tools and lubrication instructions, then complete the specified gearbox checks before installation and operation.
This listing supplies one cup washer. It does not include a bearing, shaft, gear, transmission assembly, adjustment-shim set or lubricant.
