OVERVIEW
Original internal-multipoint hardware for the belt anchorage

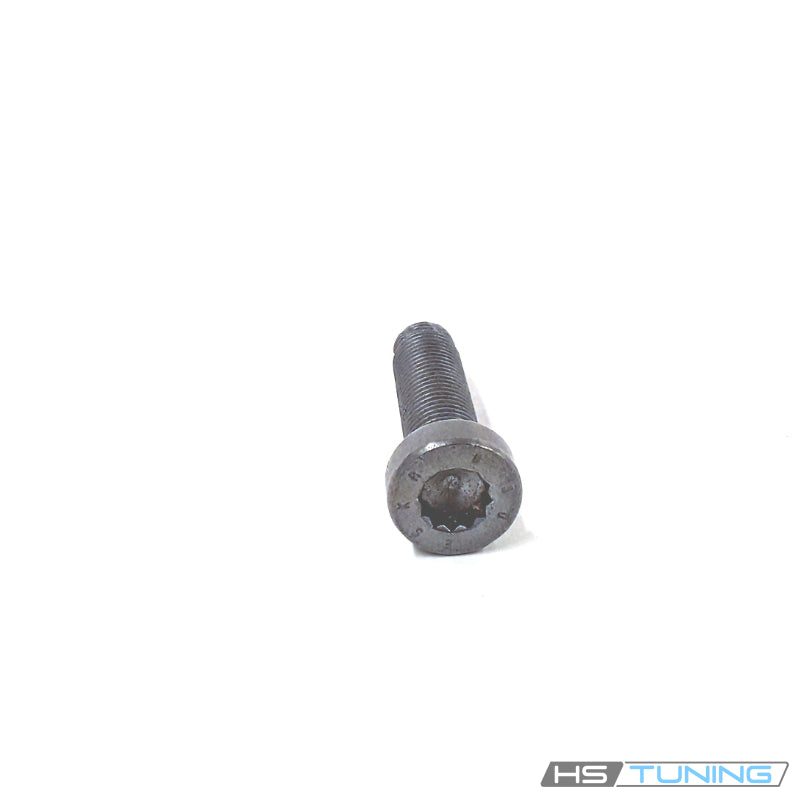

WHT-003-683 is the Genuine VW/Audi 7/16–20 x 40 seat belt bolt for the assigned restraint mounting connections below. Its recessed multipoint drive and bearing arrangement match the original bolt design.
Restraint assemblies use several bolt lengths and shoulder arrangements. The complete part number and exact connection matter; a similar thread size alone is not a valid replacement specification.
Technical details
- Complete factory number: WHT-003-683.
- Factory specification: 7/16–20 x 40 mm factory designation.
- Design: socket-head seat belt mounting bolt with internal multipoint drive.
- Quantity supplied: one individual bolt.
The thread is 7/16 inch in nominal diameter with 20 threads per inch, and the factory length designation is 40 mm. Use the correct multipoint tool rather than forcing a hexagon or Torx bit into the recess.
Common reasons to replace
- The original mounting bolt is missing after restraint or interior work.
- Threads are damaged or crossed.
- The internal drive is rounded or damaged.
- The bearing surface is damaged or cannot seat correctly.
- The wrong bolt length or design was installed during an earlier repair.
Inspect the belt assembly, guide and anchorage threads. Follow the complete restraint inspection procedure after a collision. New mounting hardware alone cannot establish the serviceability of a damaged belt or body anchorage.
Vehicle fitment
Match the vehicle configuration, VIN restrictions and exact belt connection. This listing does not replace every bolt in the restraint assembly.
| Vehicle | Model years | Engine | Configuration | Application restrictions |
|---|---|---|---|---|
| Audi R8 | 2010 | 4.2L gasoline V8 or 5.2L gasoline V10 | Type 42 Coupe; quattro; Seat belt guide mounting; PR A8U | Assigned WHT003683 mounting position with PR A8U equipment; 7/16–20 x 40 mm. Not every belt bolt. |
| Volkswagen Jetta | 2011 | 2.0L gasoline I4, 2.5L gasoline I5 or 2.0L TDI diesel I4 | Mk6 sedan; front-wheel drive; Assigned seat belt mounting position | VIN from 16-B-000001; original WHT003683 belt connection only. |
| Volkswagen Jetta | 2013 | 2.0L gasoline I4, 2.5L gasoline I5, 2.0L TDI diesel I4 or GLI 2.0L turbocharged gasoline I4 | Mk6 sedan; front-wheel drive; Assigned seat belt mounting position | VIN from 16-D-000001; original WHT003683 belt connection only. |
| Volkswagen Jetta SportWagen | 2011 | 2.5L gasoline I5 or 2.0L TDI diesel I4 | Mk6 wagon; front-wheel drive; Assigned seat belt mounting position | Original WHT003683 connection only; 7/16–20 x 40 mm. |
Installation guidance
Follow the vehicle-specific restraint-system service procedure. Keep the belt and guide correctly routed, install the specified associated parts and start the threads by hand. Apply the prescribed torque for the exact anchorage and replace hardware where instructed.
Verify secure seating, correct belt movement and normal latch operation. Correct damaged threads, guides or belt components before returning the vehicle to service.
Ordering information
One individual genuine bolt. Belt, guide, washer and other mounting hardware are separate. Confirm VIN, mounting position and required quantity.
