OVERVIEW
Genuine VW/Audi WHT-003-694 is an individual mounting bolt used at the specified lower door-molding or exterior door-cover attachment points. It supplies the correctly assigned service fastener for the confirmed Audi configurations below.
Technical details and what is included
- Factory part number: WHT-003-694 / WHT003694.
- Component: lower door-molding mounting bolt.
- Factory nominal hardware designation: M4 × 8.
- Quantity supplied: one individual bolt.

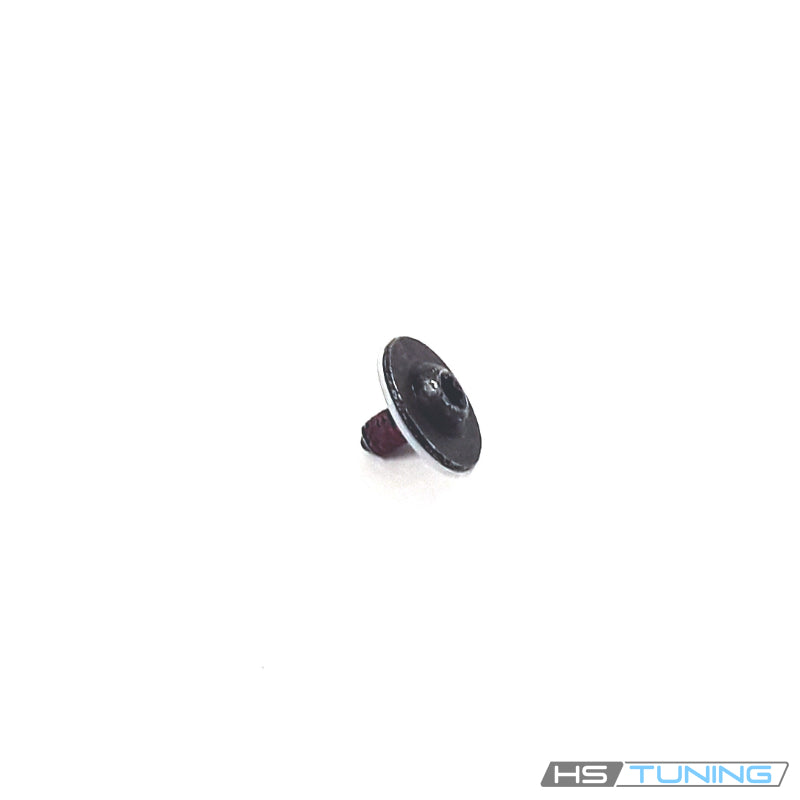

- The archive photograph shows the broad socket-drive head and short threaded shank.
- Original location must match the assigned door, side and trim configuration.
Match the exact part number and mounting point before ordering. Lower molding screws, belt-molding clips, corner-cover screws and other nearby fasteners are separate parts. A catalog quantity for a complete door or vehicle does not change the one-bolt quantity supplied here.
Common reasons to replace
- The original mounting bolt is missing after trim service.
- The drive recess is damaged and no longer accepts the correct tool securely.
- The threaded shank is damaged or will not engage the assigned mounting feature.
- The factory repair procedure specifies renewal of the mounting hardware.
Inspect the molding, mounting feature and companion hardware before fitting a replacement. A broken trim attachment, distorted cover or damaged mating thread requires separate repair. Replacing the bolt alone does not correct a damaged molding or an incorrectly aligned door-cover assembly.
Vehicle fitment
These profiles require the original lower door-trim attachment that specifies WHT003694. Confirm the exact door, side, molding and equipment assignment; other trim locations can use different hardware.
| Vehicle | Model years | Engine | Configuration | Application restrictions |
|---|---|---|---|---|
| Audi A6 | 2009 | 3.2L FSI gasoline V6 | C6 sedan; front-wheel drive; Original factory drivetrain; body trim assignment determines fitment | Rear lower door-molding screw point assigned WHT003694. |
| Audi A6 | 2009, 2011 | 3.0L supercharged TFSI gasoline V6 | C6 sedan; quattro; Original factory drivetrain; body trim assignment determines fitment | Original lower door-molding screw point assigned WHT003694; confirm door, side and installed molding. |
| Audi A6 | 2009 | 4.2L FSI gasoline V8 | C6 sedan; quattro; Original factory drivetrain; body trim assignment determines fitment | Front lower door-molding screw point assigned WHT003694. |
| Audi A6 Avant | 2011 | 3.0L supercharged TFSI gasoline V6 | C6 wagon; quattro; Original factory drivetrain; body trim assignment determines fitment | Original exterior door-cover/molding attachment for PR-6U0 or PR-6U7 where WHT003694 is assigned. Match exact door-cover configuration. |
Installation and service guidance
Follow the factory procedure for the specific lower molding or exterior door cover. Support the trim as prescribed and identify the original fastening locations before removal.
Inspect the mating mounting feature and replace damaged clips or other hardware separately. Use the tool that matches the bolt's actual drive recess, start the fastener correctly and avoid forcing it into damaged threads.
Follow the specified fastening sequence and tightening requirements. Do not use a generic torque value or overtighten the bolt to draw a misaligned molding into place. Verify correct seating and secure retention after installation.
This listing provides one small mounting bolt. The door molding, cover, body panel, clips and other fastening hardware are separate parts.
