OVERVIEW
Genuine VW/Audi WHT-005-271 is an individual body and trim mounting screw used at the specific guide, retainer or molding attachment points listed below. It provides the correctly assigned service hardware when a screw is missing or damaged during trim work.
Technical details and what is included
- Factory part number: WHT-005-271 / WHT005271.
- Component: body and trim mounting screw.
- Factory nominal designation: TP5 × 5.9 × 16-F.
- Quantity supplied: one individual screw.

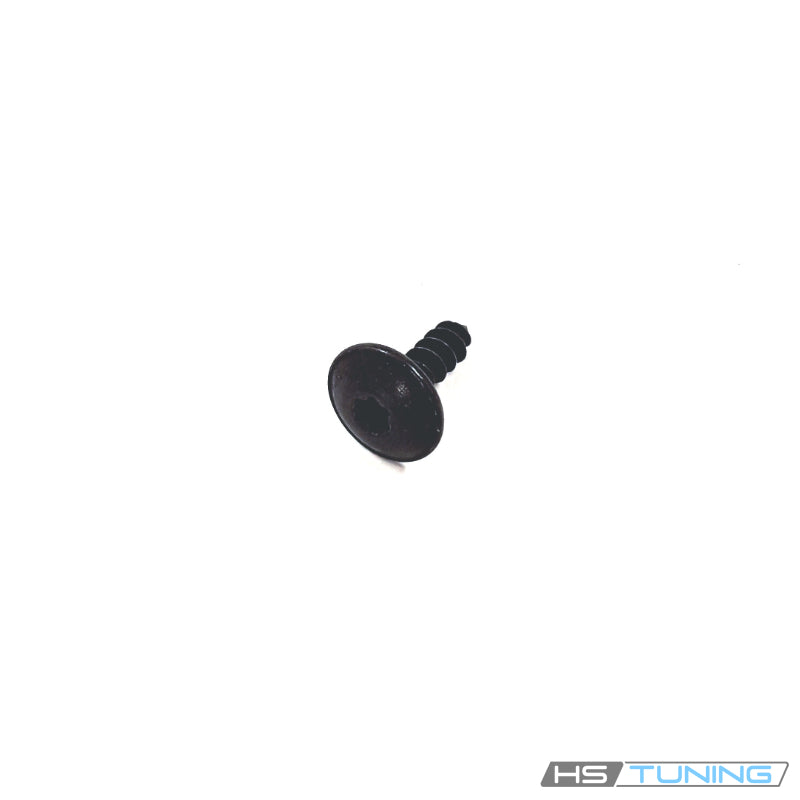

- The archive photo shows the broad head and threaded mounting shank.
- Confirmed applications include specified bumper-cover guide or retainer points and selected door belt-molding attachments.
The factory designation identifies this exact mounting hardware; it is not a package measurement. Match the part number and original attachment point rather than choosing a screw solely by appearance. This listing does not include bumper covers, body panels, trim moldings, guides, retaining nuts or a hardware kit.
Common reasons to replace
- A mounting screw is missing after body or trim service.
- The head or drive recess is damaged during removal.
- The threaded shank is damaged or will not engage the correct retainer.
- The repair procedure specifies replacement hardware at the assigned mounting point.
Inspect the guide, retainer and mating mounting feature before installing new hardware. A damaged attachment, broken guide or incorrect panel alignment requires its own repair. Adding a replacement screw does not correct a broken support or substitute for the full specified mounting arrangement.
Vehicle fitment
Use the exact mounting location in the table. This screw serves different body and trim points across the confirmed vehicles; the listed application does not make it interchangeable with every screw on that vehicle.
| Vehicle | Model years | Engine | Configuration | Application restrictions |
|---|---|---|---|---|
| Audi A3 | 2015–2016 | 1.8L TFSI gasoline | 8V sedan; front-wheel drive; Original factory drivetrain; exact body mounting point determines fitment | Rear bumper-cover support/guide mounting point specifying WHT005271. |
| Audi A3 | 2015 | 2.0L TFSI gasoline | 8V sedan; quattro; Original factory drivetrain; exact body mounting point determines fitment | Rear bumper-cover support/guide mounting point specifying WHT005271. |
| Audi S3 | 2015 | 2.0L TFSI gasoline | 8V sedan; quattro; Original factory drivetrain; exact body mounting point determines fitment | Rear bumper side-support screw location specifying WHT005271; exact side and support assignment must match. |
| Audi Q3 | 2015 | 2.0L TFSI gasoline | 8U SUV; original bumper arrangement; Original factory drivetrain; exact body mounting point determines fitment | Rear bumper side-retainer mounting point specifying WHT005271; match side and retainer assignment. |
| Audi A5 | 2018 | 2.0L TFSI gasoline | F5 coupe / Cabriolet; quattro; Original factory drivetrain; exact body mounting point determines fitment | Original rear bumper guide location specifying WHT005271; match exact body and guide configuration. |
| Audi A5 Sportback | 2018 | 2.0L TFSI gasoline | F5 Sportback; original drivetrain; Original factory drivetrain; exact body mounting point determines fitment | Original rear bumper guide location specifying WHT005271; exact installed guide determines assignment. |
| Audi A5 Sportback | 2020 | 2.0L TFSI gasoline | F5 Sportback; original drivetrain; Original factory drivetrain; exact body mounting point determines fitment | Rear impact-bar/bracket guide screw point specifying WHT005271; match original mounting point. |
| Audi A4 allroad | 2018 | 2.0L TFSI gasoline | B9 wagon; quattro; Original factory drivetrain; exact body mounting point determines fitment | Rear bumper guide mounting point specifying WHT005271; match exact original guide. |
| Audi A4 | 2018 | 2.0L TFSI gasoline | B9 sedan; quattro; Original factory drivetrain; exact body mounting point determines fitment | Rear bumper guide mounting point specifying WHT005271; match exact original guide. |
| Audi TT | 2018 | 2.0L TFSI gasoline | 8S; quattro; original door trim; Original factory drivetrain; exact body mounting point determines fitment | Original door belt-molding screw point specifying WHT005271; confirm side and exact molding location. |
| Audi TTS | 2018 | 2.0L TFSI gasoline | 8S; quattro; original door trim; Original factory drivetrain; exact body mounting point determines fitment | Original door belt-molding screw point specifying WHT005271; confirm side and exact molding location. |
Installation and service guidance
Follow the factory removal and installation procedure for the specific trim component and body configuration. Support the component as specified and identify the correct guide or retainer before removing its fasteners.
Inspect the mounting feature and replace damaged mating hardware separately. Use the tool that matches the screw head, start the screw correctly and avoid forcing it into a damaged or incorrect attachment. Follow the specified sequence and tightening requirements without using a generic torque value.
After installation, verify that the component seats correctly and that the fastener engages the assigned mounting point. Check neighboring clips and guides where the repair procedure requires it. Avoid drawing a misaligned component into place by overtightening its screw.
One small screw is supplied. Order additional individual screws or separately specified retainers only when the verified repair requires them.
