OVERVIEW

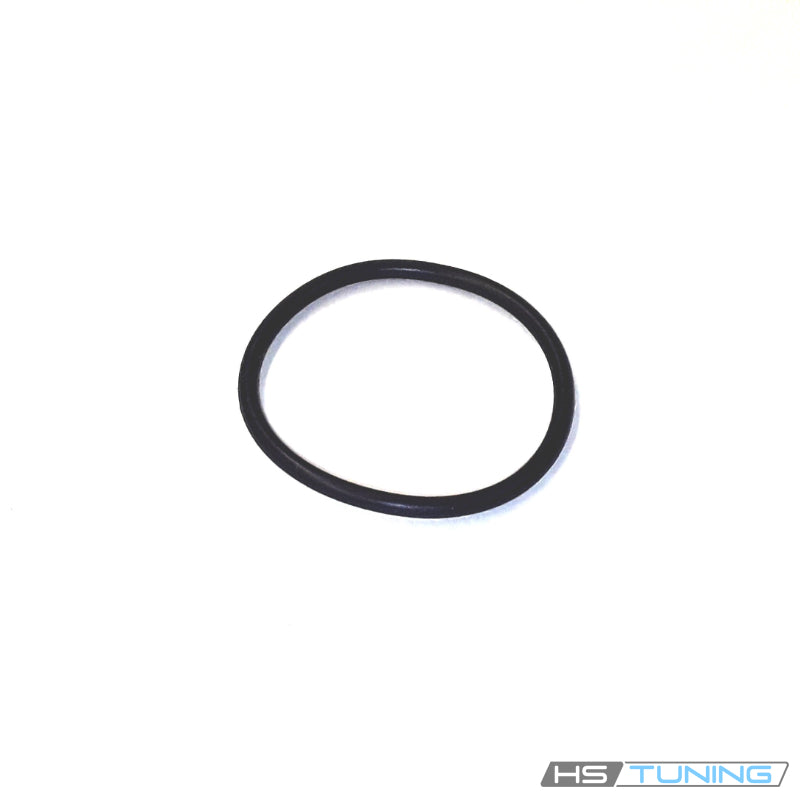

Genuine VW/Audi S tronic transmission oil-system sealing ring
WHT-005-379 is an original sealing ring specified in the oil-system and oil-cooling arrangements of the assigned 0B5 S tronic transmission. It restores the prescribed sealing interface when the corresponding component is serviced or dismantled.
The ring is also listed in factory service parts for the applicable transmission repairs. Its use in a repair procedure does not mean that replacing the ring alone resolves a gearbox warning or an internal transmission fault. Select it for the exact sealing location and transmission configuration.
Technical details and supplied quantity
- Manufacturer part number: WHT-005-379; compact reference WHT005379.
- Brand: Genuine VW/Audi.
- Component: transmission oil-system sealing ring.
- Original catalog size designation: 36 × 2.5.
- Confirmed transmission family: 0B5 / DL501 seven-speed S tronic at the assigned sealing point.
- Quantity: one ring per purchase. Filter components, pipe assemblies, cap seals and other transmission gaskets are separate.
Transmission oil systems contain several different rings. The filter-cap O-ring and smaller oil-line seals are separate components and should not be substituted by appearance. Match the original seal profile, receiving component and full part number before installation.
Common reasons to replace
- The original ring is cut, distorted or damaged when the assigned component is removed.
- The seal is missing during reassembly of an oil-system repair.
- Inspection identifies deterioration at the specified sealing interface.
- The factory repair procedure calls for renewal of the ring when the joint is opened.
Oil leakage or a gearbox warning requires diagnosis of the actual fault. A new seal will not correct a damaged housing, cracked pipe, electrical sensor fault or an internal transmission defect. Inspect the mating parts and use all separately specified service components required for the repair.
Vehicle fitment
Fitment requires the listed seven-speed S tronic transmission and the original sealing arrangement assigned WHT005379. Model and engine alone do not establish interchange with manual or conventional automatic transmissions.
| Vehicle | Model years | Engine | Configuration | Application restrictions |
|---|---|---|---|---|
| Audi S4 | 2010–2015 | 3.0L supercharged TFSI gasoline V6 | B8 / B8.5 Sedan; quattro; 0B5 / DL501 7-speed S tronic; PR G1D where assigned | Only the transmission oil-system sealing point specified for WHT005379. Match original housing/pipe and seal profile. Excludes manual and conventional Tiptronic transmissions. One ring supplied; filter-cap O-rings and other transmission seals are separate. |
| Audi S5 Cabriolet | 2010–2015 | 3.0L supercharged TFSI gasoline V6 | B8 / B8.5 Convertible; quattro; 0B5 / DL501 7-speed S tronic; PR G1D where assigned | Only the transmission oil-system sealing point specified for WHT005379. Match original housing/pipe and seal profile. Excludes manual and conventional Tiptronic transmissions. One ring supplied; filter-cap O-rings and other transmission seals are separate. |
| Audi S5 | 2013–2015 | 3.0L supercharged TFSI gasoline V6 | B8.5 Coupe; quattro; 0B5 / DL501 7-speed S tronic; PR G1D where assigned | Only the transmission oil-system sealing point specified for WHT005379. Match original housing/pipe and seal profile. Excludes manual and conventional Tiptronic transmissions. One ring supplied; filter-cap O-rings and other transmission seals are separate. |
| Audi RS5 | 2013–2015 | 4.2L FSI gasoline V8 | B8 Coupe; quattro; 0B5 / DL501 7-speed S tronic; PR G1D where assigned | Only the transmission oil-system sealing point specified for WHT005379. Match original housing/pipe and seal profile. Excludes manual and conventional Tiptronic transmissions. One ring supplied; filter-cap O-rings and other transmission seals are separate. |
| Audi RS5 Cabriolet | 2013–2015 | 4.2L FSI gasoline V8 | B8 Convertible; quattro; 0B5 / DL501 7-speed S tronic; PR G1D where assigned | Only the transmission oil-system sealing point specified for WHT005379. Match original housing/pipe and seal profile. Excludes manual and conventional Tiptronic transmissions. One ring supplied; filter-cap O-rings and other transmission seals are separate. |
| Audi S6 | 2013–2016 | 4.0L twin-turbocharged TFSI gasoline V8 | C7 Sedan; quattro; 0B5 / DL501 7-speed S tronic; PR G1D where assigned | Only the transmission oil-system sealing point specified for WHT005379. Match original housing/pipe and seal profile. Excludes manual and conventional Tiptronic transmissions. One ring supplied; filter-cap O-rings and other transmission seals are separate. |
| Audi S7 | 2013–2016 | 4.0L twin-turbocharged TFSI gasoline V8 | C7 Sportback; quattro; 0B5 / DL501 7-speed S tronic; PR G1D where assigned | Only the transmission oil-system sealing point specified for WHT005379. Match original housing/pipe and seal profile. Excludes manual and conventional Tiptronic transmissions. One ring supplied; filter-cap O-rings and other transmission seals are separate. |
Installation and service guidance
Follow the factory procedure for the specific 0B5 oil-system component being serviced. Keep the area clean and prevent contamination of open transmission passages or oil lines. Internal transmission work requires the prescribed service equipment and procedures.
Inspect the receiving groove and mating component, then install the correct ring in its assigned position without twisting or damaging it. Use the lubricant and assembly method specified for that operation. Restore the associated components and hardware in the required sequence.
If fluid is drained or lost during the repair, complete the specified fluid filling and level-setting procedure using the correct fluid for that circuit. Perform the required leak and operational checks after reassembly. Additional transmission faults must be diagnosed separately.
