OVERVIEW
Genuine VW/Audi 1.2mm K2 Clutch Adjusting Shim
WHT-005-518-B is a genuine clutch actuation adjusting shim with a nominal thickness of 1.2mm. It is a measured selection component in the K2 clutch adjustment procedure for the 0CG seven-speed dual-clutch transmission.
The shim establishes the specified adjustment at the clutch release mechanism. Its thickness is selected during the factory procedure using the measured mechanism clearance and the tolerance marked on the replacement clutch. Vehicle fitment alone does not determine the correct thickness.
Technical details
- Complete factory number: WHT-005-518-B.
- Factory specification: Nominal 53mm outside diameter × 42.6mm inside diameter × 1.2mm thickness; exact factory suffix B.

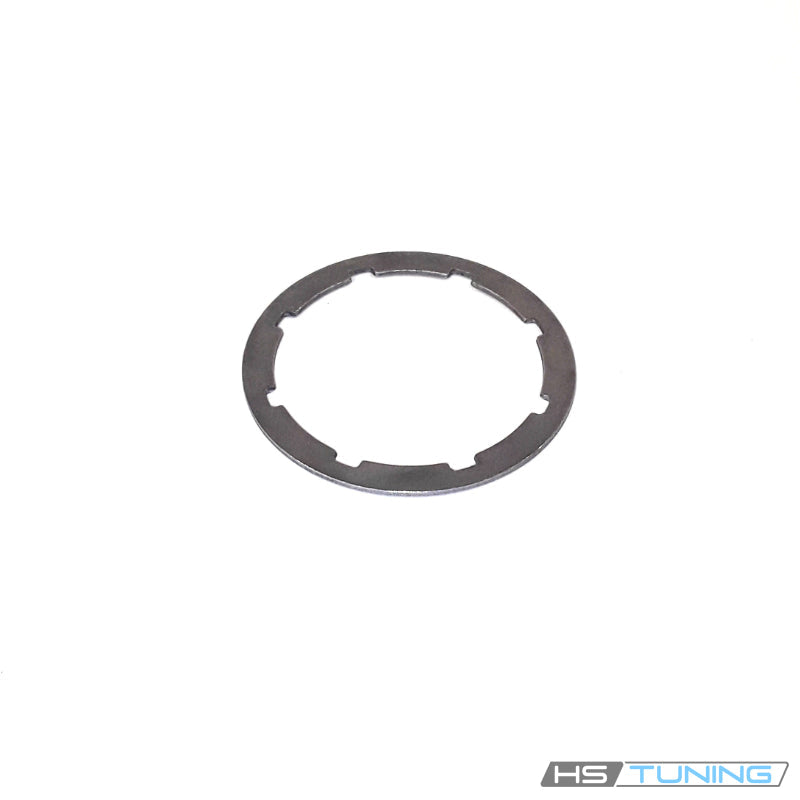

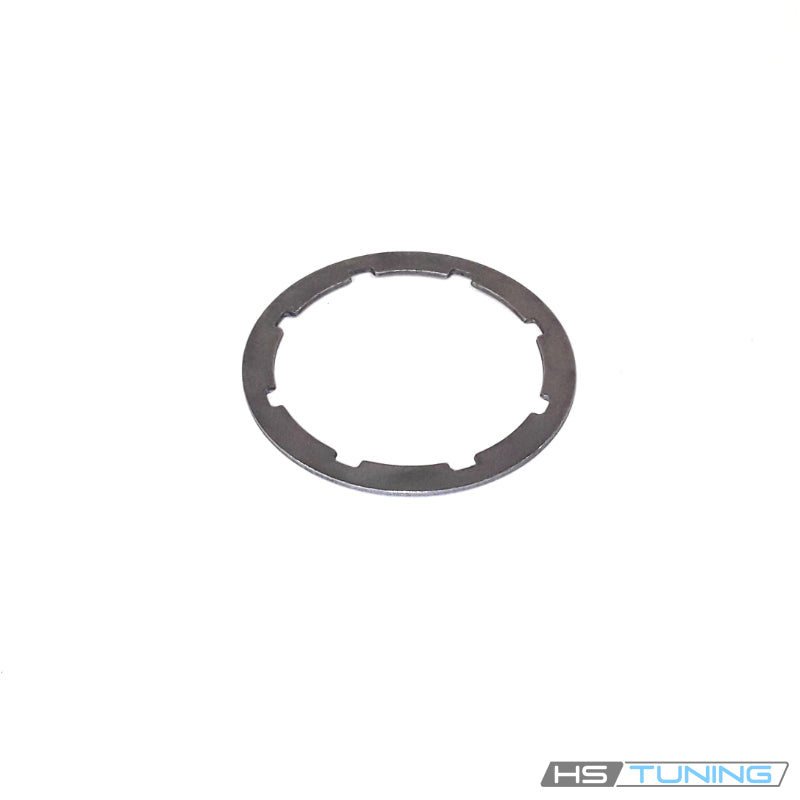

- Design: Notched circular adjusting washer for the assigned K2 clutch actuation position.
- Quantity supplied: one individual adjusting shim.
The diameter and thickness are functional part dimensions rather than shipping measurements. Adjacent suffixes identify different available thicknesses. A visually similar washer with the wrong thickness changes the adjustment and must not be substituted simply because it fits over the mounting location.
Common reasons to replace
- A clutch replacement requires a newly calculated 1.2mm adjustment shim.
- The original shim is missing or was mixed with other thicknesses during transmission service.
- Damage, distortion or wear makes the removed shim unsuitable for accurate adjustment.
- A previous repair used an incorrect thickness and a complete factory adjustment confirms this exact shim is required.
Clutch judder, engagement faults or transmission warnings require diagnosis of the complete clutch actuation system. These symptoms do not identify shim thickness by themselves. Inspect the release mechanism and mating surfaces and verify the clutch tolerance marking before selecting a replacement.
Vehicle fitment
The following application uses the documented 0CG adjustment system. Confirm the transmission identification and the calculated K2 shim thickness before ordering; this part is not selected solely by model year.
| Vehicle | Model years | Engine | Configuration | Application restrictions |
|---|---|---|---|---|
| Volkswagen Jetta Hybrid | 2013–2016 | 1.4L turbocharged gasoline/electric hybrid; CNLA | Front-wheel drive; factory 0CG seven-speed DSG; 0CG seven-speed dry dual-clutch | K2 clutch actuation adjustment only when the factory measurement and clutch tolerance calculation require the 1.2mm shim. Match full suffix B; not a universal shim for every clutch repair. |
Installation guidance
Use the factory clutch adjustment procedure, specified measuring equipment and the correct transmission support tools. Record the measured values and clutch tolerance, then select the single shim thickness required by the calculation. Keep K1 and K2 adjustment components identified throughout the job.
Install only the selected shim at its assigned position. Do not stack different thicknesses or reuse an unidentified washer as a shortcut. Complete the prescribed clutch installation, adjustment and any required transmission setup before evaluating operation.
Ordering information
Supplied as one individual 1.2mm WHT-005-518-B adjusting shim. Clutch assembly, release levers, bearings, other shim thicknesses and installation tools are separate. Match the exact suffix and measured adjustment requirement.
