OVERVIEW
Fresh factory hardware for the original bearing mount

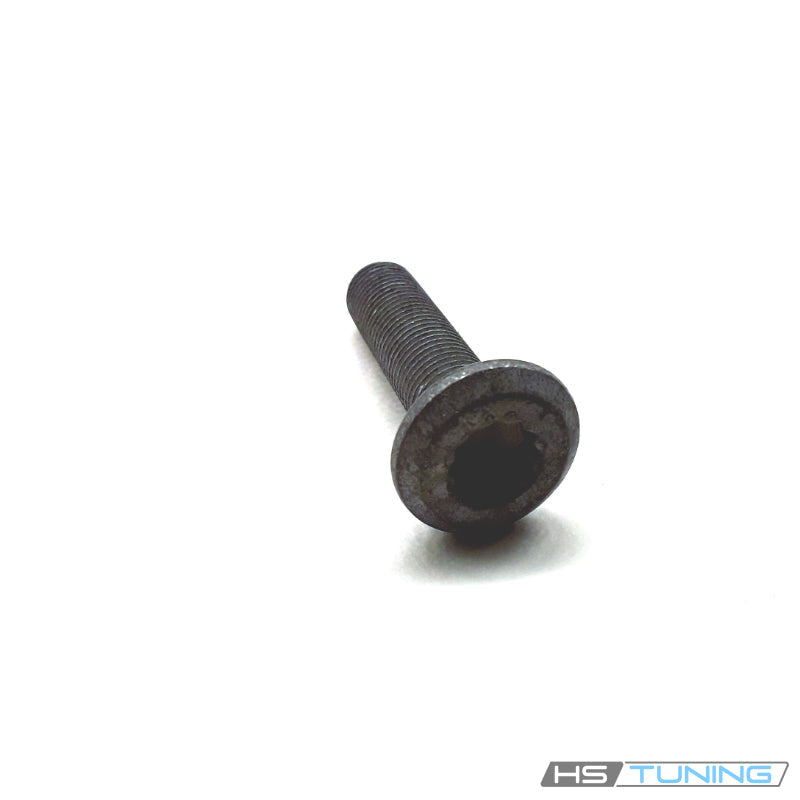

WHT-006-966 is a Genuine VW/Audi M12 x 1.25 x 42 wheel-bearing mounting bolt with an internal multipoint drive. It secures the specified wheel-bearing assembly to its original mounting location.
Dealer catalog notes identify this as hardware that cannot be reused or reinstalled after removal. This listing supplies one new bolt, not a four-bolt set, wheel bearing, hub or center axle bolt.
Technical details
- Complete factory number: WHT-006-966.
- Factory specification: M12 x 1.25 thread, 42 mm nominal length.
- Design: Recessed multipoint drive and broad head bearing surface; match the original bearing attachment.
- Quantity supplied: one individual bolt.
The thread and length are confirmed for this full number by genuine-parts specifications. They describe the fastener, not shipping dimensions; no unverified weight, strength grade or tightening value is assigned.
Common reasons to replace
- Wheel-bearing or hub service that requires removal of the original non-reusable mounting bolt.
- Damaged drive recess, threads or head seating surface found during inspection.
- Missing hardware or an incorrectly substituted bearing-mount fastener.
Bearing noise or wheel play requires diagnosis of the bearing, hub and surrounding assembly. Replacing the mounting bolt alone does not repair a worn bearing or damaged wheel-bearing housing.
Vehicle fitment
Match the exact bearing arrangement below and confirm the complete factory bolt number. The center axle bolt is a separate component.
| Vehicle | Model years | Engine | Configuration | Application restrictions |
|---|---|---|---|---|
| Audi S5 | 2018 | 3.0L turbocharged V6 gasoline | B9 Coupe or Cabriolet, quattro; Original factory drivetrain | Original front wheel-bearing assembly mount bolt, WHT-006-966. Match original front hub/bearing arrangement. Non-reusable fastening hardware; sold individually. |
| Audi S5 | 2022 | 3.0L turbocharged V6 gasoline | B9 Coupe or Cabriolet, quattro; Original factory drivetrain | Original front wheel-bearing assembly mount bolt, WHT-006-966. Confirm original bearing and attachment. Non-reusable fastening hardware; sold individually. |
| Audi Q5 PHEV | 2020 | 2.0L turbocharged plug-in hybrid | FY SUV, quattro; Original factory drivetrain | Original front wheel-bearing assembly mount bolt, WHT-006-966. Original 338 x 30 mm brake/bearing assembly; four mount bolts per bearing in the cataloged replacement arrangement. Non-reusable fastening hardware; sold individually. |
| Audi Q8 e-tron Sportback | 2024 | Battery-electric drivetrain | Sportback SUV, quattro; Original factory drivetrain | Original front wheel-bearing assembly mount bolt, WHT-006-966. Confirm the selected original bearing/hub configuration by VIN. Non-reusable fastening hardware; sold individually. |
Installation guidance
Use new mounting hardware whenever the factory procedure or dealer catalog requires it. Position the bearing correctly and follow the specified sequence for the vehicle and hub assembly.
Use the proper multipoint tool and the factory torque/angle procedure for the exact joint. Do not reuse removed bolts, substitute a different pitch or assume that one ordered unit supplies all bolts needed for a bearing.
Ordering information
New and unused inventory. Sold individually as WHT-006-966. Check the original bearing configuration, VIN and total quantity required before ordering.
