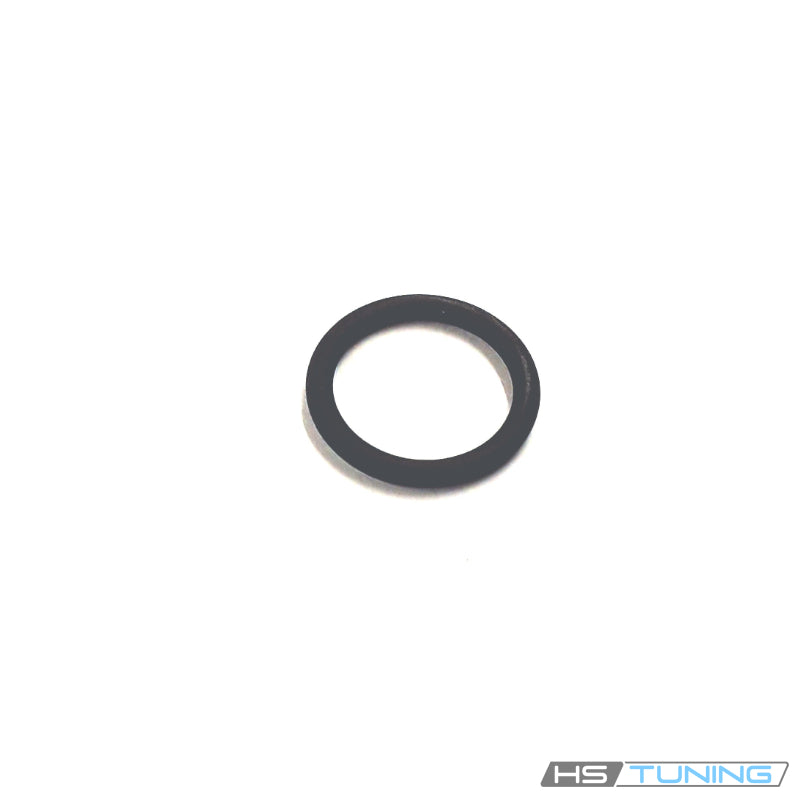

  • WHT-007-702 Genuine VW/Audi individual turbocharger oil return line sealing ring, turbocharger outlet-tube seal, repeated original archive photo 4
  • WHT-007-702 Genuine VW/Audi individual turbocharger oil return line sealing ring, ring opening visible, repeated original archive photo 5
  • WHT-007-702 Genuine VW/Audi individual turbocharger oil return line sealing ring, exact WHT007702 identification, repeated original archive photo 6
  • WHT-007-702 Genuine VW/Audi individual turbocharger oil return line sealing ring, original archive product photograph, repeated original archive photo 7
1 7

Genuine VW/Audi

WHT-007-702 Genuine VW/Audi Turbocharger Oil Return Line O-Ring

WHT-007-702 Genuine VW/Audi Turbocharger Oil Return Line O-Ring

$3.55 USD
$3.55 USD $3.55 USD
Sale Sold out
Shipping calculated at checkout.
In stock

WHT-007-702

View full details

OVERVIEW

Genuine VW/Audi WHT-007-702 is an individual sealing ring for the assigned turbocharger oil-return line connection. It renews the specified seal when the original ring is damaged or removed during turbocharger or oil-line service on the confirmed TDI applications below.

Technical details and what is included

  • Factory part number: WHT-007-702 / WHT007702.
  • Component: turbocharger oil-return line O-ring.
  • Factory nominal sealing-ring designation: 17.12 × 2.62 mm.
  • Quantity supplied: one individual sealing ring.
  • Confirmed location: assigned oil-outlet/return tube joint on the listed 2015 TDI configurations.
  • The archive photo shows the individual ring and its central opening.

Match the original tube, seal groove and factory part assignment. The turbocharger uses separate seals at different oil and coolant connections. An oil-feed washer, a return flange gasket and this O-ring are separate repair parts even when shown in the same turbocharger diagram.

Common reasons to replace

  • The original ring is cut, pinched or otherwise damaged during removal.
  • Inspection finds deformation or deterioration that prevents correct seating.
  • Oil leakage is traced to the assigned sealing joint.
  • The factory procedure calls for a new ring when the return connection is opened.

Inspect the tube, sealing groove and mating surface before replacing the ring. A damaged tube, distorted flange or another leaking connection requires its own repair. Replacing this ring alone does not diagnose a turbocharger fault or correct an obstructed return line.

Vehicle fitment

The table covers the confirmed TDI oil-return application. Verify the installed engine and oil-line arrangement; different engines or sealing locations require separately specified parts.

Vehicle Model years Engine Configuration Application restrictions
Audi A3 2015 2.0L TDI diesel inline-four; CRUA / CVCA as assigned 8V sedan; front-wheel drive; Original factory TDI drivetrain Turbocharger oil-return/outlet tube joint assigned WHT007702. Confirm original tube and ring assignment; oil-feed sealing hardware and other return gaskets are separate.
Volkswagen Golf 2015 2.0L TDI diesel inline-four; CRUA / CVCA as assigned Mk7 hatchback; front-wheel drive; Original factory TDI drivetrain Turbocharger oil-return/outlet tube joint assigned WHT007702. Confirm original tube and ring assignment; oil-feed sealing hardware and other return gaskets are separate.
Volkswagen Golf SportWagen 2015 2.0L TDI diesel inline-four; CRUA / CVCA as assigned Mk7 wagon; front-wheel drive; Original factory TDI drivetrain Turbocharger oil-return/outlet tube joint assigned WHT007702. Confirm original tube and ring assignment; oil-feed sealing hardware and other return gaskets are separate.
Volkswagen Jetta 2015 2.0L TDI diesel inline-four; CRUA / CVCA as assigned Mk6 sedan; front-wheel drive; Original factory TDI drivetrain Turbocharger oil-return/outlet tube joint assigned WHT007702. Confirm original tube and ring assignment; oil-feed sealing hardware and other return gaskets are separate.
Volkswagen Passat 2015 2.0L TDI diesel inline-four; CRUA / CVCA as assigned NMS sedan; front-wheel drive; Original factory TDI drivetrain Turbocharger oil-return/outlet tube joint assigned WHT007702. Confirm original tube and ring assignment; oil-feed sealing hardware and other return gaskets are separate.

Installation and service guidance

Follow the factory procedure for the exact turbocharger and oil-return tube. Allow the engine and exhaust to cool and complete the prescribed preparation before opening the connection.

Remove the old ring without damaging its groove. Inspect and clean the mating surfaces using the approved method, then use the factory-specified assembly lubrication where required. Seat the new ring in the correct location and avoid twisting, stretching or pinching it during assembly.

Renew other gaskets and fastening hardware when the repair procedure requires them. Use the specified sequence and tightening values for the tube and related components rather than applying a generic fastener torque.

Complete the required fluid-level and leak checks after service. This listing provides the sealing ring only; the turbocharger, oil line, other gaskets and engine oil are separate.
